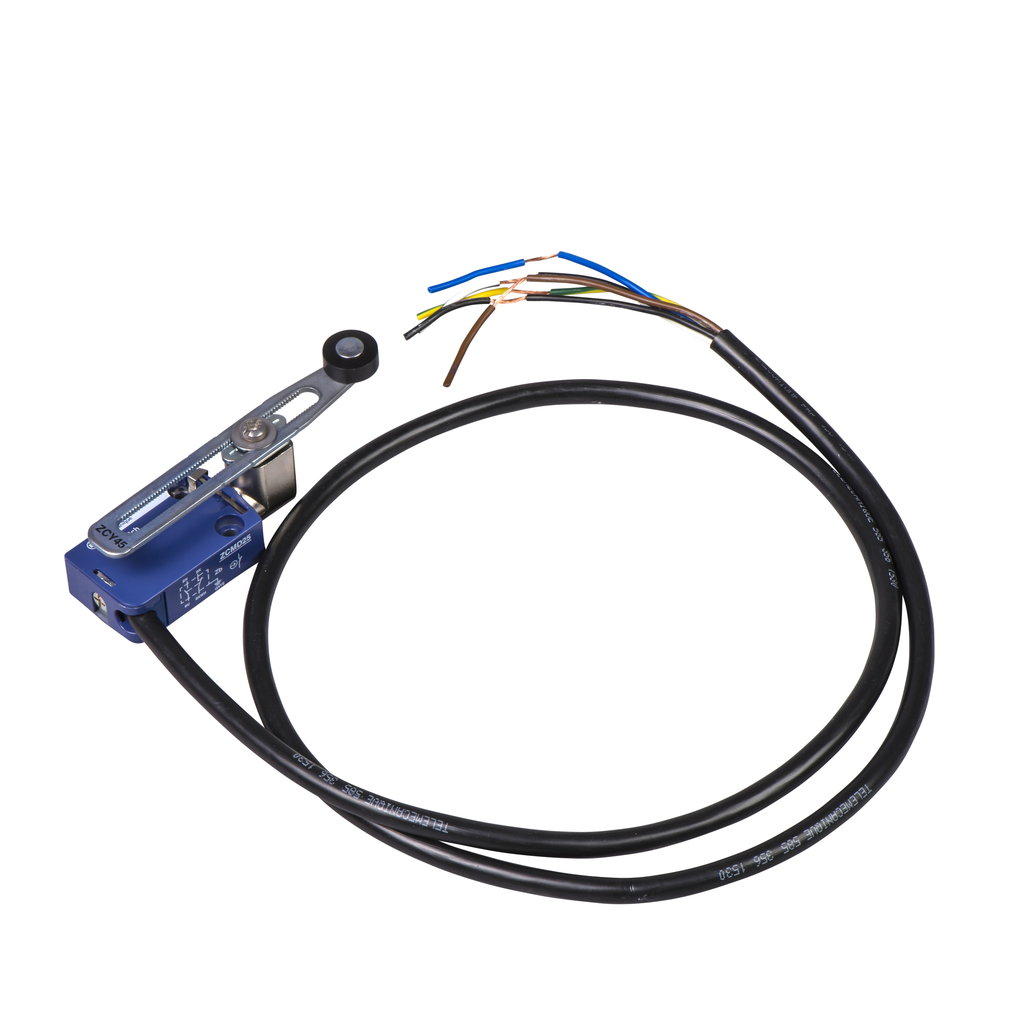

TES XCMD2145L1 Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1 m

Manufacturer: TES Electric | Catalog # XCMD2145L1 | Cooper Electric Part # 804112
$59.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The XCMD offer is a range of robust limit switches in a miniature format. They are ideal for harsh environment machines with space constraints. This limit switch is pre-cabled. It features a metal fixed body and a variable length thermoplastic roller lever. Contacts: 2-pole NC + NO, snap action.

Technical Information

Action
BY 30A CAM,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION
Actuator
SPRING RETURN ROLLER LEVER THERMOPLASTIC VARIABLE LENGTH
Amperage
6 Amp
Applications
MINIATURE VARIABLE
Body Material
Zamak
Body Type
Fixed
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Head Type
Rotary head
Material
Metal
Net Weight
0.23 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
16 MM,30 MM,50-50 MM
Standard
CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
REMOVABLE CABLE CONNECTOR
Type
LIMIT SWITCH,ROTARY HEAD
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCMD

General Product Info

12-Digit UPC
389110218452
GTiN
03389110218459
Product UPC
78590168601
Weight
0.51 lb

Dimensions

Cable Length
1 m
Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
Indonesia
