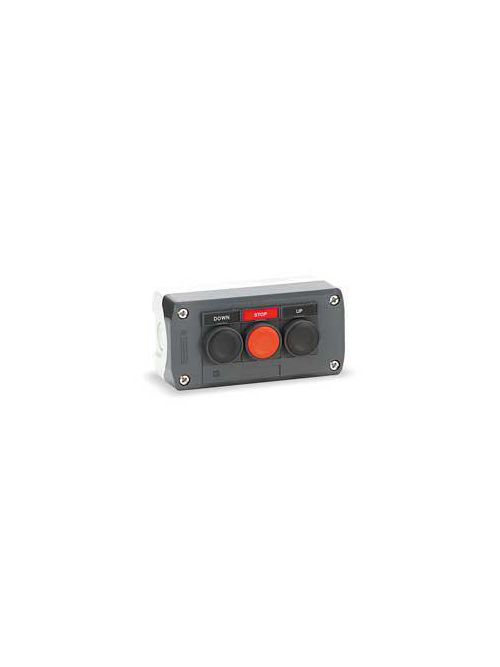

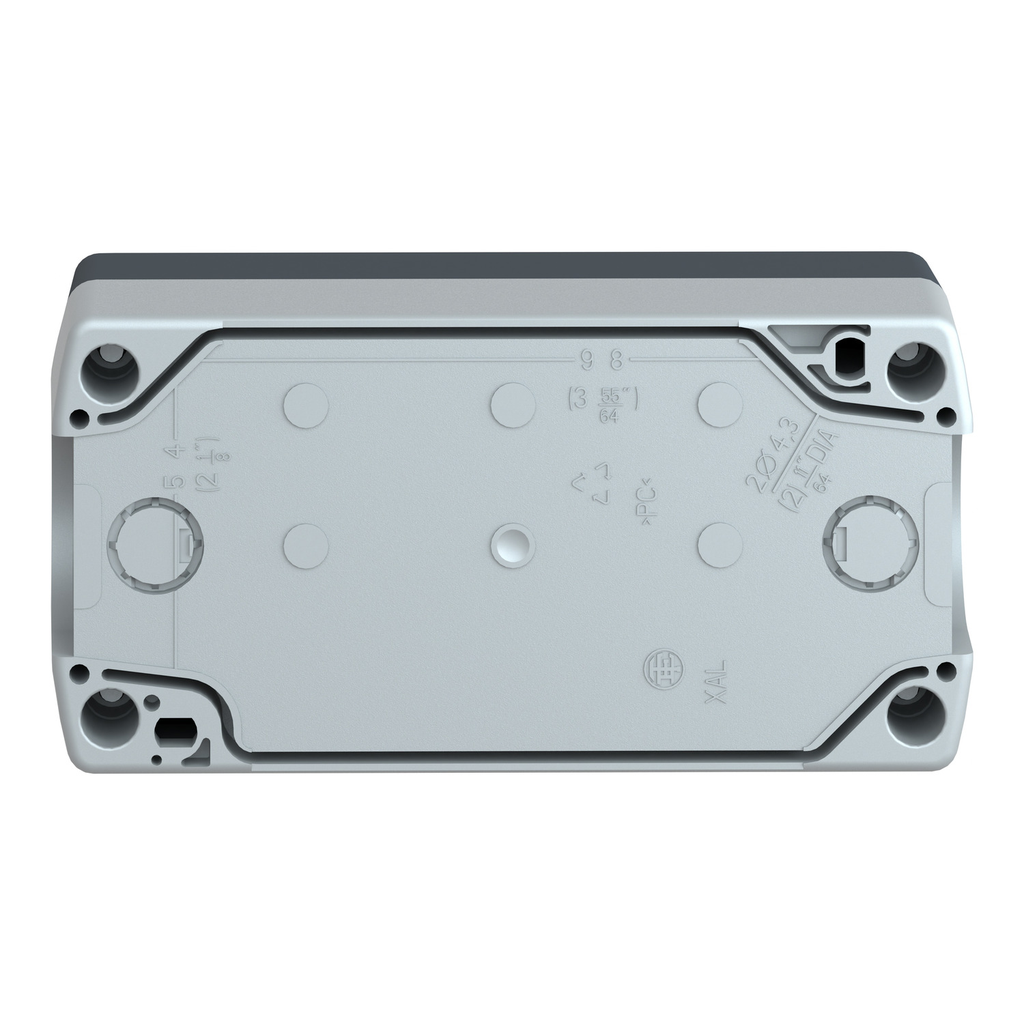

Square D XALD321H29H7 600 VAC 300 VDC 10 Amp 2NO 1NC Polycarbonate Push Button Control Station

Manufacturer: Square-D / Schneider | Catalog # XALD321H29H7 | Cooper Electric Part # 803030
$105.11/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

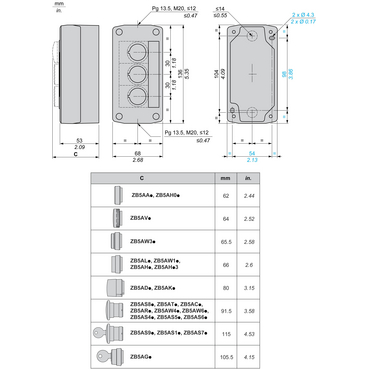

CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XALD yellow control station with 3 functions is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with 3 push buttons for 3 functions enables machine builders to easily add required control and signalling functionality on their machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Technical Information

Actuator
1 FLUSH PUSH-BUTTON, RED 1 NC O-1 FLUSH PUSH-BUTTON, GREEN 1 NO DOWN-1 FLUSH PUSH-BUTTON, GREEN 1 NO UP
Amperage
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications
Three functions;For XB5 22 mm control and signalling units
Cable Entry
14-14 mm
Contact Material
Silver Alloy
Contact Rating
Slow-break
Enclosure
Polycarbonate
Material
Polycarbonate
Net Weight
0.299 kg
Operating Force
3.5 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station;Green ''UP'' 1 NO - red ''O'' 1 NC - green ''DOWN'' 1 NO

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALD

General Product Info

12-Digit UPC
389119414275
Color
DARK GREY RAL 7016)
GTiN
03389119414272
Product UPC
78590101592
Weight
0.299 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
France
Connections Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
Color Of Base Of Enclosure
  • light grey RAL 7035)
IE Rated Operational Current
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 IEC 60947
ITH Conventional Free Air Thermal Current
  • 10 A IEC 60947-5-1
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=xald321h29h7-3d&p_File_name=xald321h29h7-3d_2D-back.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=xald321h29h7-3d&p_File_name=xald321h29h7-3d_2D-back.DXF
  • https://download.schneider
IP Degree Of Protection
  • IP66 IEC 60529
  • IP69
  • IP69K
  • IP67
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Carbon Footprint Of The Installation Phase A5
  • 0.001286223298285399
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.6 kg CO2 eq.
  • 0.6392165956770071

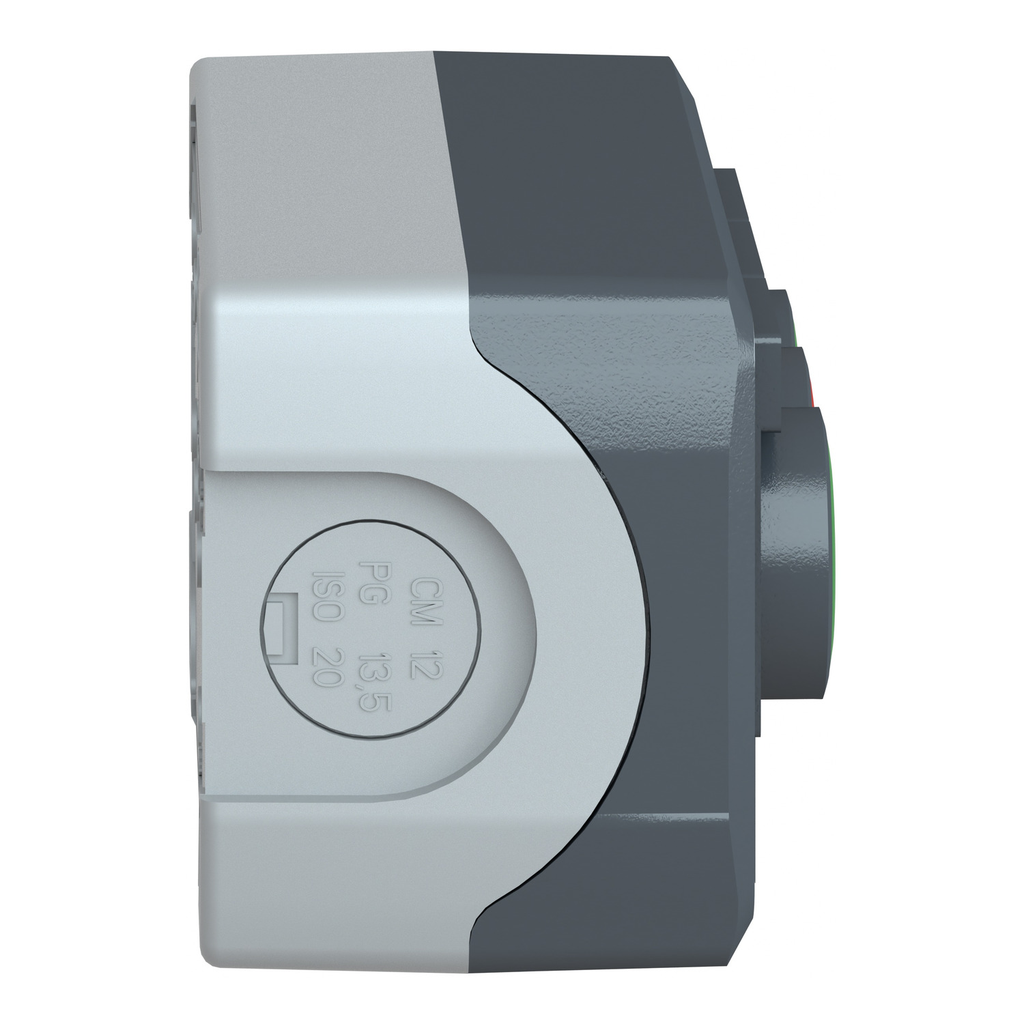

Cable Entry
  • 2 knock-outs for cable entry 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 1.6252680616559945
Electrical Shock Protection Class
  • class II conforming to IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
UI Rated Insulation Voltage
  • 600 V 3)IEC 60947-1
Accessories
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 2 A 230 V 36
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Vibration Resistance
  • 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Color Of Cover
  • dark grey RAL 7016)
Positive Opening
  • with IEC 60947-5-1 appendix K
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0.01375617637679291
Accessory Products
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.21822241047591542
  • 0.2 kg CO2 eq.
Tightening Torque
  • 0.8-1.2 N.m IEC 60947-1
Resistance To High Pressure Washer
  • 7000000 Pa 55 °C 0.1 m
Short Circuit Protection
  • 10 A cartridge fuse gG IEC 60947-5-1
Control Station Composition
  • 1 flush push-button, red 1 NC O
  • 1 flush push-button, green 1 NO down
  • 1 flush push-bu
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Electrical Reliability
  • ? < 10exp(-6) 5 V 1 mA IEC 60947-5-4
  • ? < 10exp(-8) 17 V 5 mA IEC 60947-5-4
  • ? < 10exp(-8) 17 V 5 mA IEC 60
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
