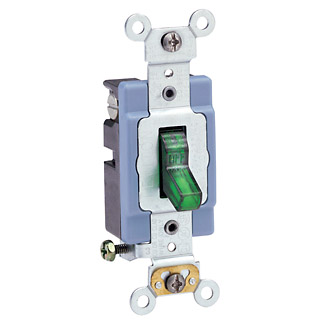

Product image for Leviton 1201-PLG 15 Amp 120 Volt Pilot Light Illuminated ON Green Toggle 1-Pole AC Quiet Switch
Email

Leviton 1201-PLG 15 Amp 120 Volt Pilot Light Illuminated ON Green Toggle 1-Pole AC Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # 1201-PLG | Cooper Electric Part # 802957
$32.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 120 Volt, Toggle Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Industrial Grade, Self Grounding, Back & Side Wired, - Green

Technical Information

Action
Off
Actuator
Toggle
Amperage
15 Amp
Applications
Commercial
Average Rated Life
50,000 Cycles Minimum
Base Material
Thermoplastic
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Material
Silver Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Insulation Material
Brass
Material
Thermoplastic
Max Current
12 A
Mounting Type
Box
NEMA
WD-1,WD-6
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Rated Insulation Voltage
1500 V
Screw Material
Brass
Screw Size
8-32,8-32
Screw Type
Brass
Size
46 H x 1.31 W x 1.6 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Terminal Size
14-10 AWG
Termination Type
Back Wire,Side Wire
Toggle Material
Polycarbonate
Torque
12-14 lb-in
Type
Toggle Switch
Voltage
120 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477224403
Color
Green
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477224403
Product UPC
07847722440

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
UL 20
Color Variations
  • Clear
  • Green
  • Red
NEMA
  • WD-1
  • WD-6
Features
  • Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
