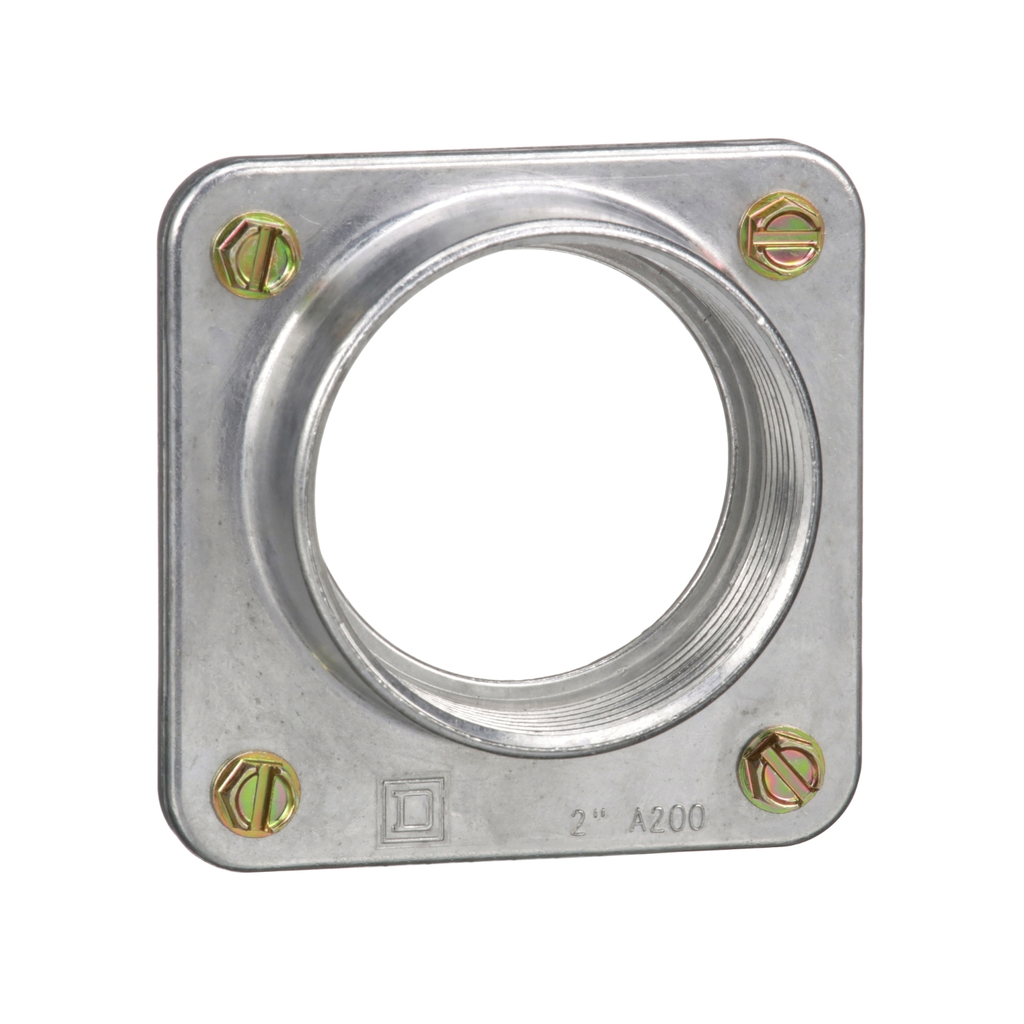

Square D A200 2" Rainproof Hub for Metering

Manufacturer: Square-D / Schneider | Catalog # A200 | Cooper Electric Part # 80273
$47.90 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
66 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet

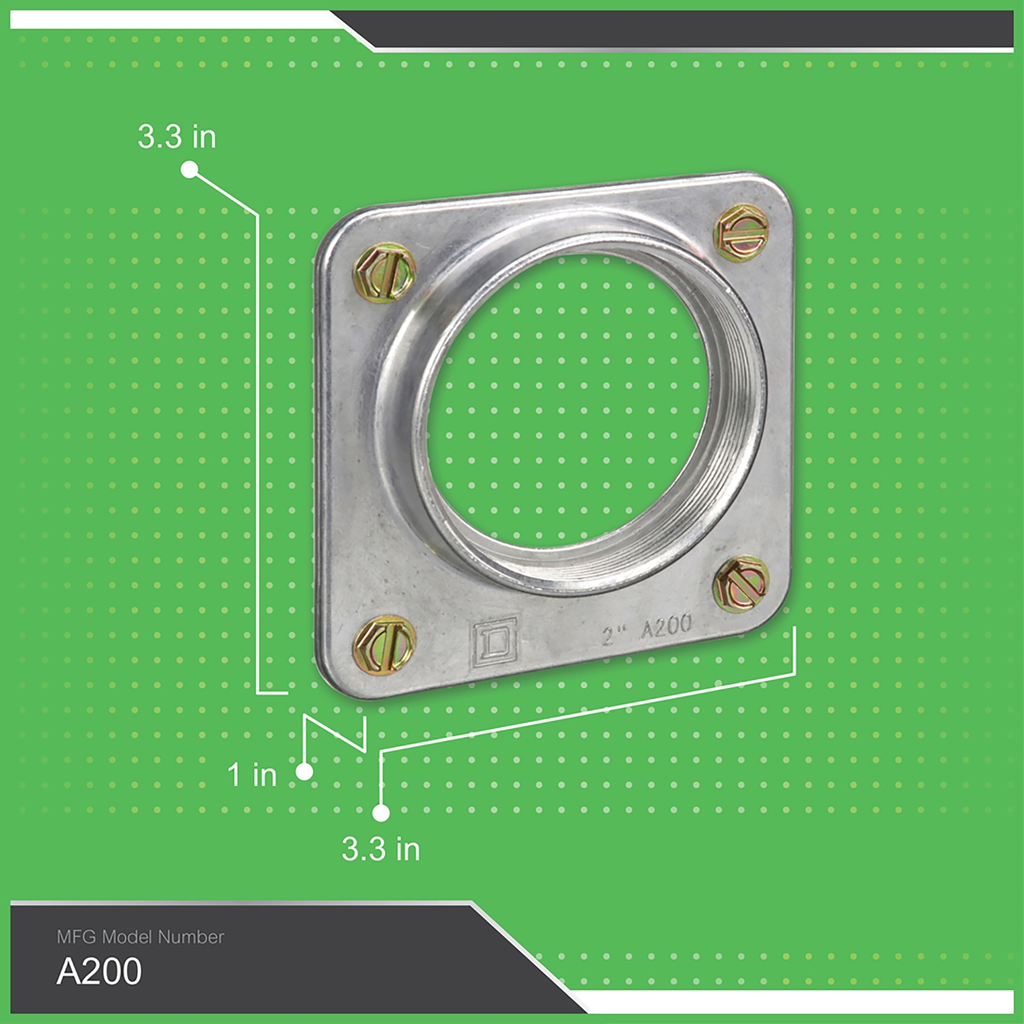

Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This accessory is a hub which is rated for 2.00 in wire size on Series A systems. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep.

Technical Information

Applications
CONDUIT ENTRY
Cable Entry
2 in
Number of Holes
4 Hole
Size
1 1/2 in
Type
Conduit entry;Hub

Manufacturer Information

Brand
Square D
Sub Brand
SERIES A

General Product Info

12-Digit UPC
785901029519
GTiN
00785901029519
Product UPC
78590102951

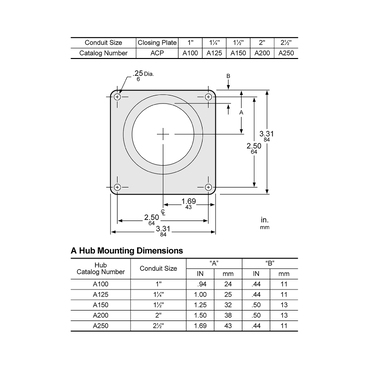

Dimensions

Depth
3.3 Inch
Height
4 Inch
Warranty Length
18 mth
Width
3.3 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
India
Features
  • This Type A hub is compatible for direct mounting on select Homeline and QO CSEDs and meter sockets
  • It accommodates 2 inch conduit
  • Installation screws have a slotted hexagonal screw head
  • It is UL listed and ANSI certified
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
