LEV 5601-P2W WH DEC ROCK SW SP 15A1

Manufacturer: Leviton Mfg Co | Catalog # 5601-P2W | Cooper Electric Part # 801339
$11.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

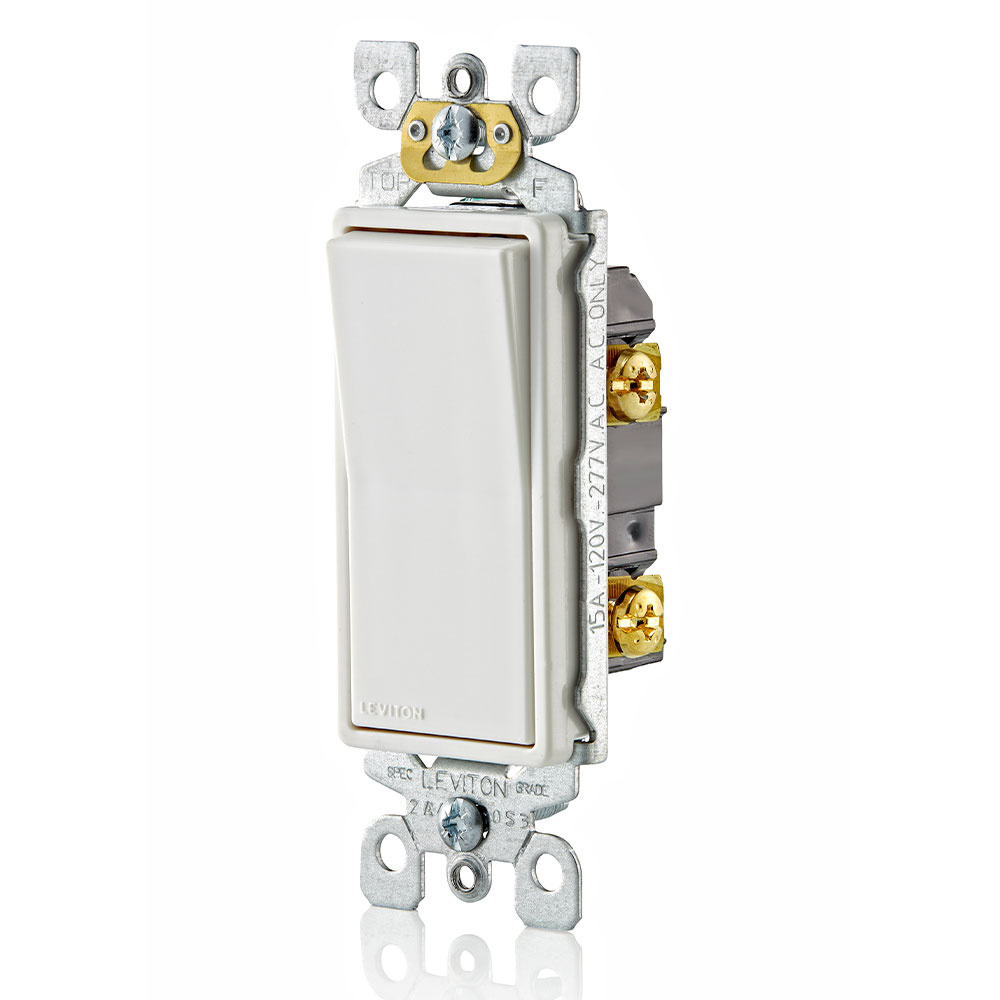

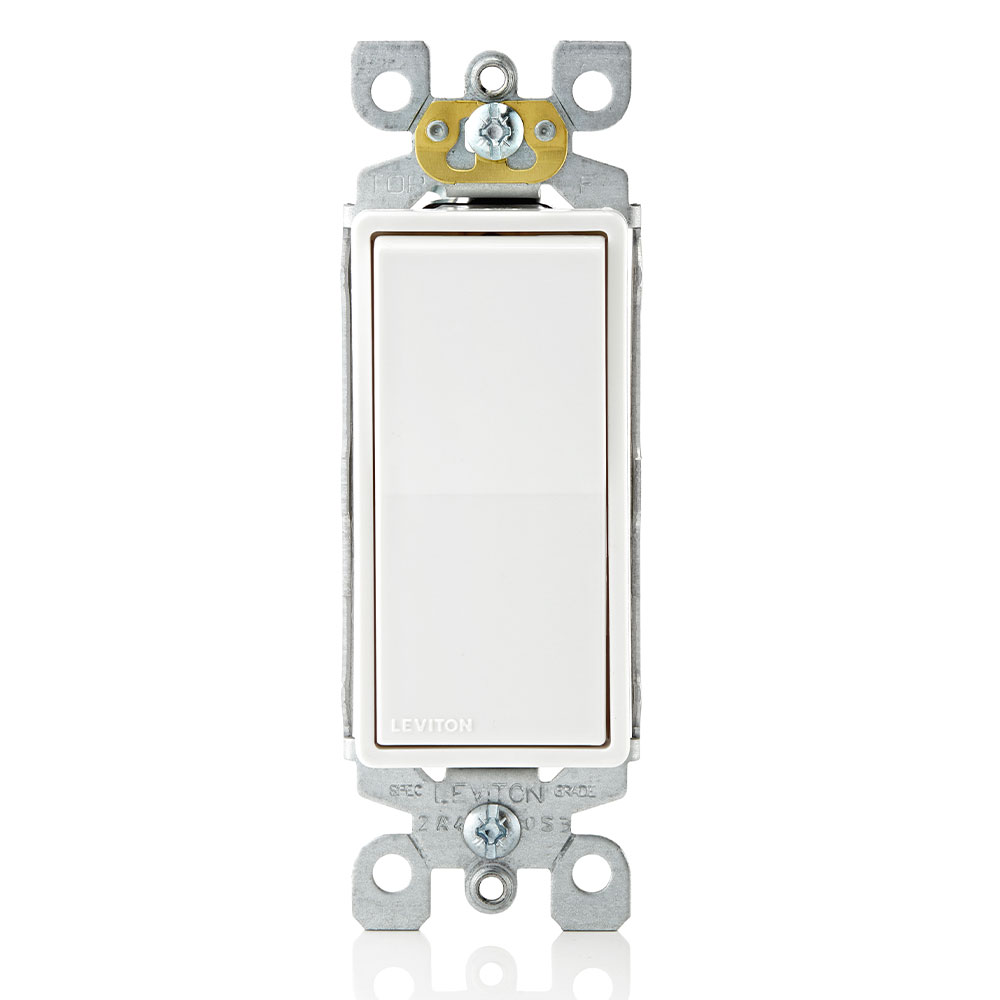

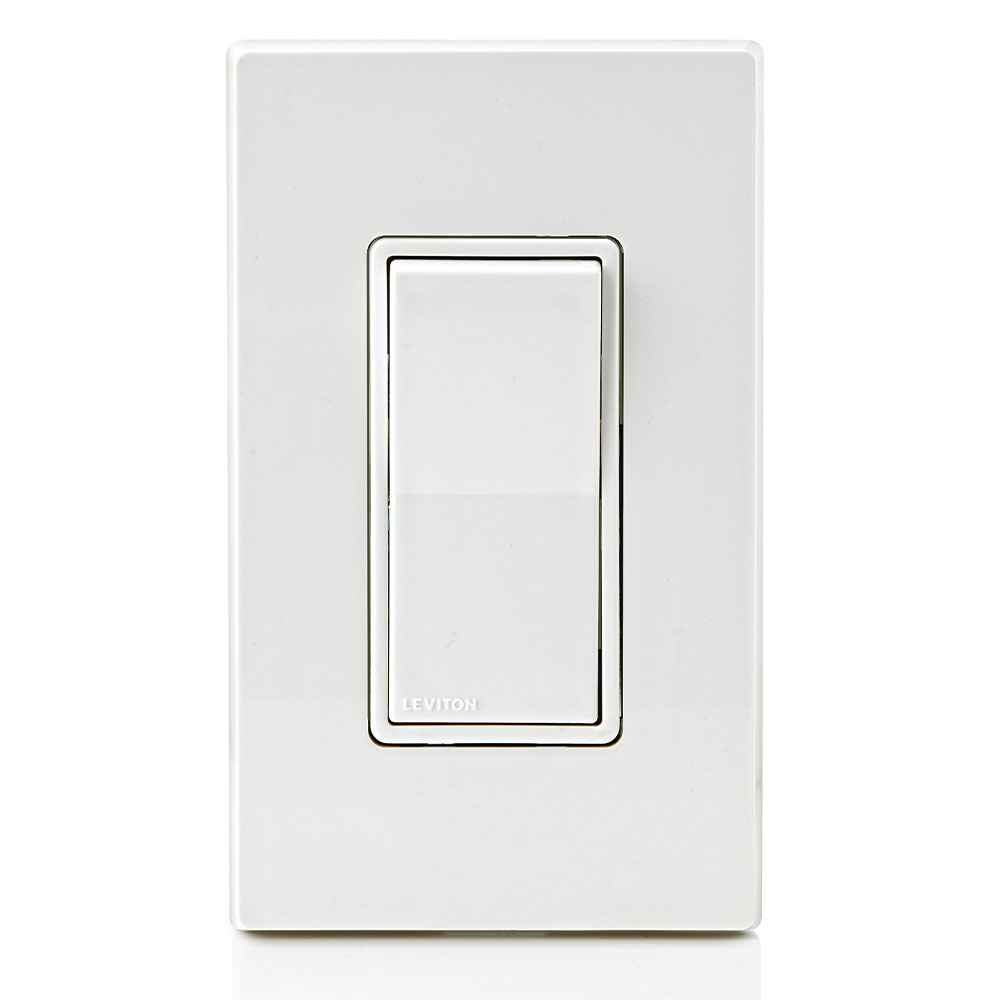

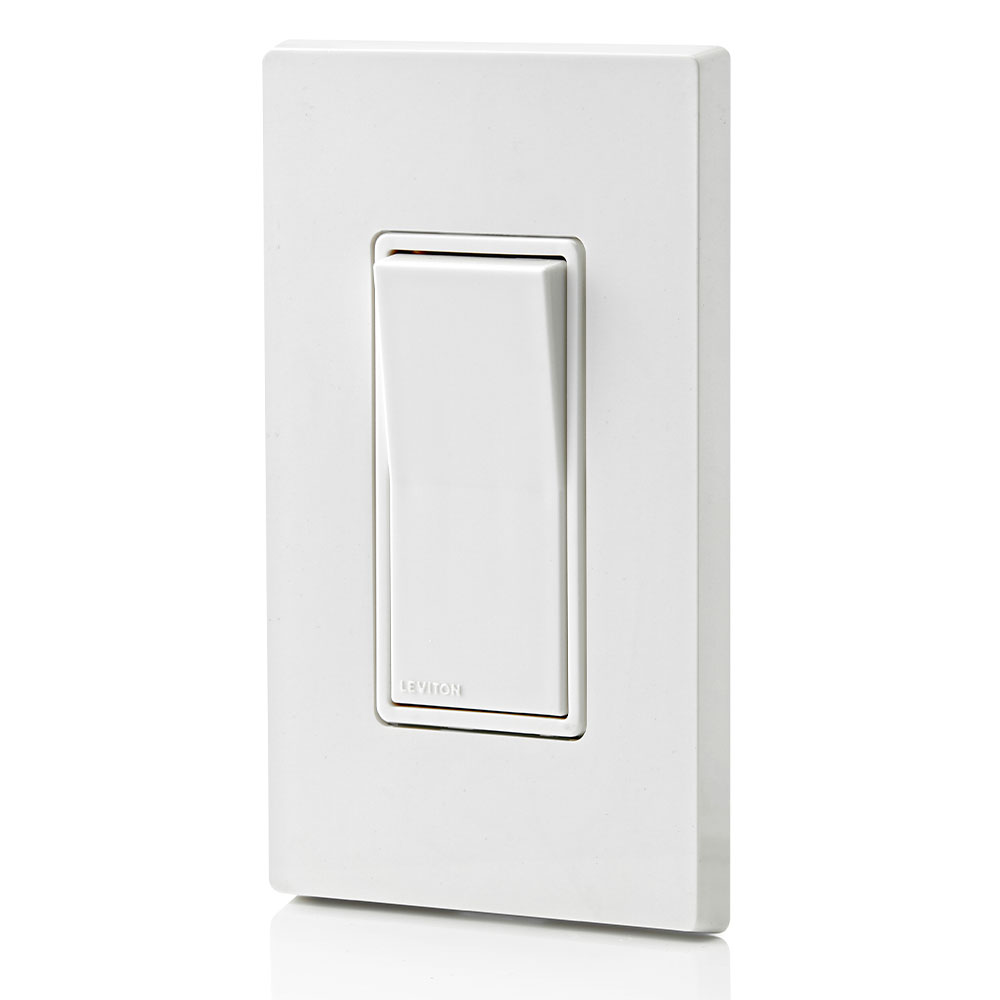

15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Self-grounding - White

Technical Information

Actuator
Rocker/Button
Amperage
15 Amp
Applications
Residential
Body Material
Thermoplastic
Connection Type
Quickwired Push-In,Side Wired
Contact Rating
120/277 VAC, 15 A
Grounding
Grounding Strap With Clip
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1 Pole
Operating Temperature
-40 To 120 degrees C
Size
4.200 H x 1.399 W x 1.453 D IN
Standard
CSA,UL
TC Connection
Quickwired Push-In, Side Wired
Temperature Rating
-40 to 120 degrees C
Terminal Type
Screw
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Rocker Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477339565
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477339565
Product UPC
07847733956

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
USA
Features
  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Sturdy construction for long service life
  • Full-rated current capacity with tungsten, fluorescent or resistive loads
  • Self-grounding when installed in a properly grounded metal box
  • Complements every dcor
  • Limited 2-year warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • CONVENIENT - Quiet switch controls load from a single location
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • EASY - Quick wire push-in and side wiring for easy installation
  • COMPATIBLE - For use with Leviton Decora wallplates
  • Now available in bulk pack - white color only
