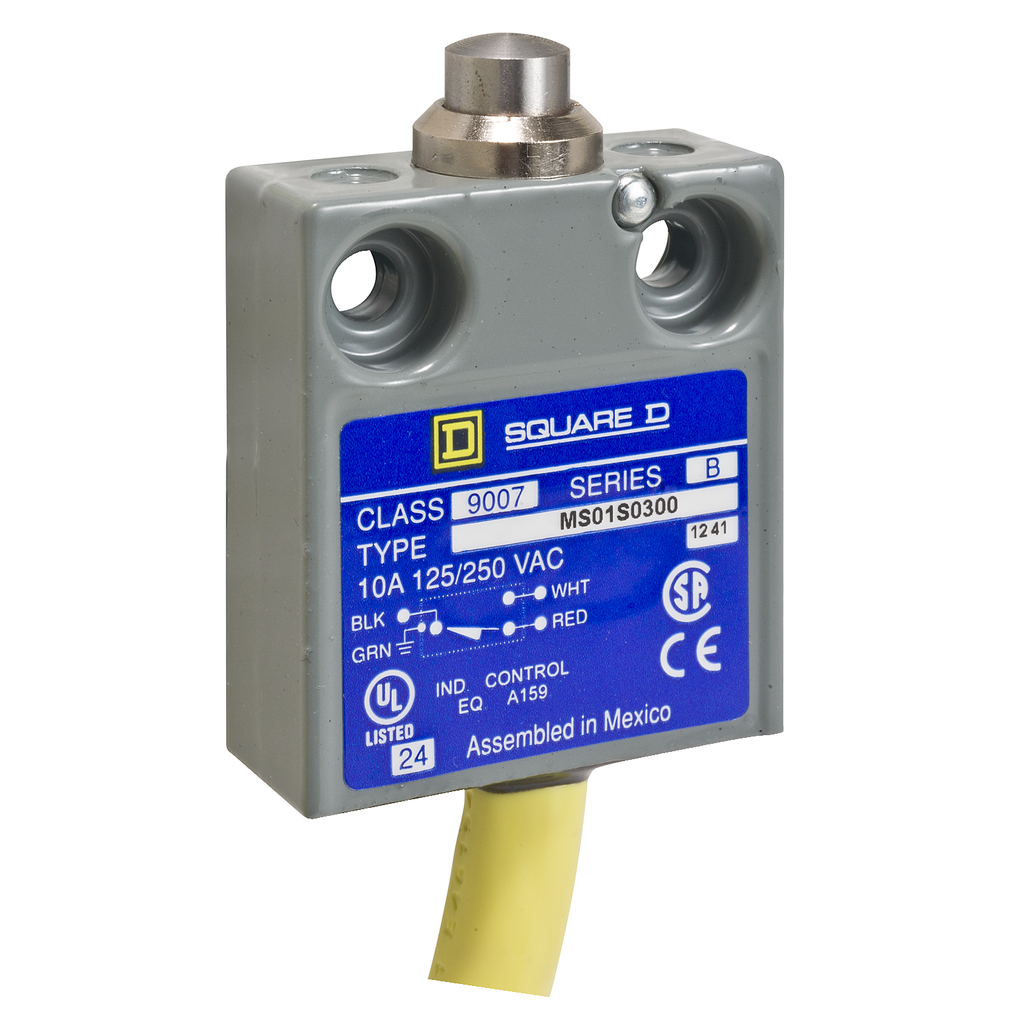

Product image for Square D 9007ML01S0100 240 VAC 28 VDC 10/5 Amp SPDT Snap Action Encapsulated Miniature Heavy Duty Limit Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9007ML01S0100 240 VAC 28 VDC 10/5 Amp SPDT Snap Action Encapsulated Miniature Heavy Duty Limit Switch

Manufacturer: Square-D / Schneider | Catalog # 9007ML01S0100 | Cooper Electric Part # 801195
$107.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
LIMIT SWITCH 240VAC 10AMP ML +OPTIONS

Technical Information

Action
ON END,SNAP ACTION,VERTICAL APPROACH, 1 DIRECTION
Actuator
SPRING RETURN PLUNGER STAINLESS STEEL -
Amperage
10 Amp
Applications
9007MS/ML,MINIATURE POTTED,PLUNGER HEAD
Contact Configuration
NC-NO
Contact Material
Silver
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Material
Metal
Number of Poles
1 Pole
Operating Cycles
100k
Operating Temperature
-40-220 Adegrees F
Size
0.62 IN,1.56 IN,1.75-1.75 IN
Standard
E78403,LR 25490 Class 32 11 03
TC Connection
PRE-WIRED CABLE BOTTOM
Type
LIMIT SWITCH,PLUNGER HEAD
Voltage
6 A 120 Volt AC, A300 NEMA RATING DESIGNATION-3 A 240 Volt AC, A300 NEMA RATING DESIGNATION-5 A 28 Volt DC

Manufacturer Information

Brand
Square D
Sub Brand
9007MS/ML

General Product Info

12-Digit UPC
785901844693
GTiN
00785901844693
Product UPC
78590184469
Weight
1.2 lb

Dimensions

Depth
0.62 Inch
Height
1-3/4 Inch
Warranty Length
18 mth
Width
1.56 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Mexico
