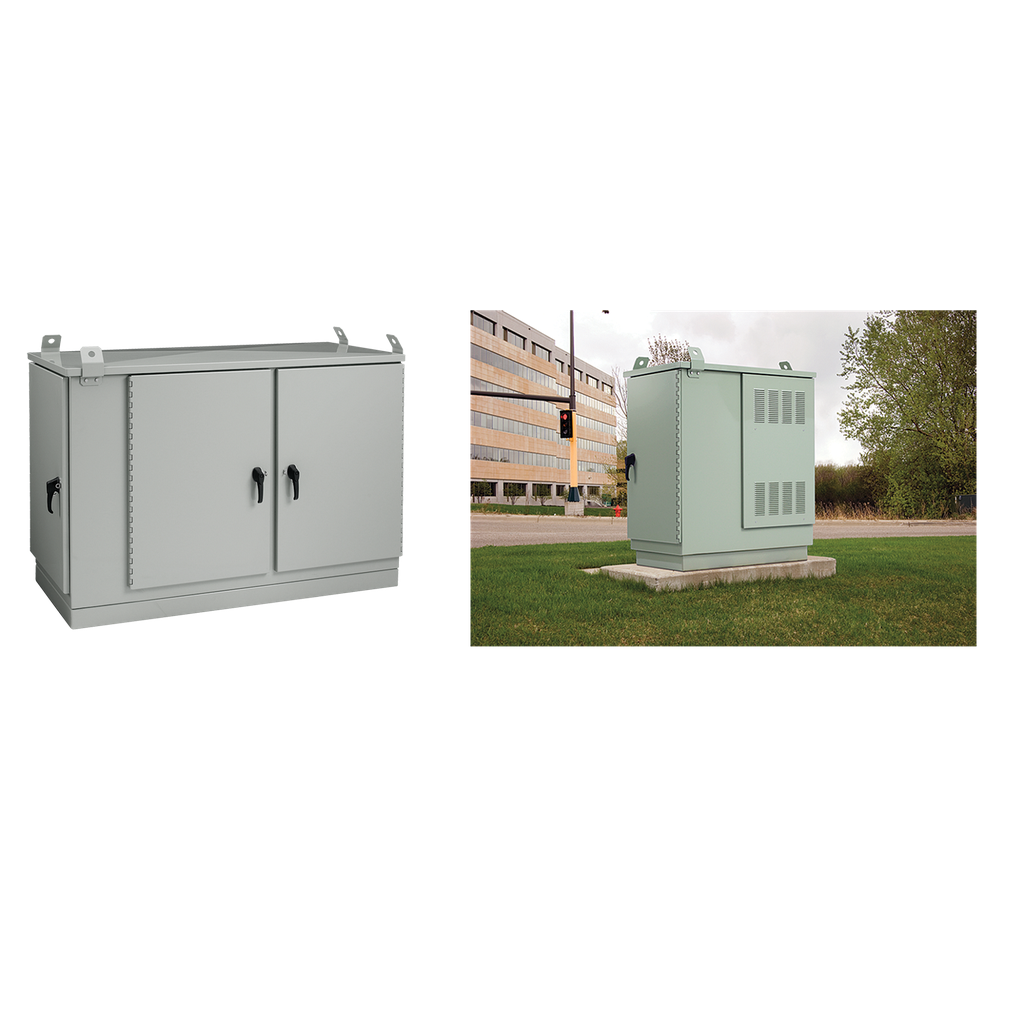

Product image for Hoffman T504030PM3 OPAL Pad-Mount DSL Cabinet, 48.5" x 43.54x 30", Lt Gray, Aluminum
Email

Hoffman T504030PM3 OPAL Pad-Mount DSL Cabinet, 48.5" x 43.54x 30", Lt Gray, Aluminum

Manufacturer: Hoffman | Catalog # T504030PM3 | Cooper Electric Part # 798105
$11,316.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Protect communications equipment from the elements in various environments with OPAL, an aluminum pad-mounted cabinet. OPAL is offered in three- and five-door models and is designed to meet Telcoria NEBS GR-487-CORE requrements.

Technical Information

Applications
Datacom and Telecom Equipment
Color Coding
RAL 7035
Material
Aluminum
Standard
12,3R,4,4X,CSA: Type 3,Cabinet Is R,Designed To Meet Telcordia NEBS™ GR-487,EC60529,EIA 310-D With 19-in. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Type
Data Networking Freestanding Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Opal

General Product Info

12-Digit UPC
783510218638
Color
Lt Gray
Finish
Gray
GTiN
00783510218638
Product UPC
78351021863
Weight
250 lb

Dimensions

Depth
30 Inch
Height
48-1/2 Inch
Length
40 Inch
Thickness
0.125 in
Width
30.00 in
Features
  • Offered with three or five doors mounted for front, rear and side access to equipment
  • Five-door model has two equal compartments and one side compartment
  • Side compartment is ideal for cable entry, power distribution and load center
  • Copper bonding bars included with cabinet
  • Rack angles have EIA universal spaced square holes and are infinitely adjustable front-to-back in compartment
  • Rack angles are predrilled for bend radius spools
  • Each compartment is capable of either 19- or 23-inch rack angle positioning
  • Top has integral solar shield with formed angles providing a peaked roof to deflect rain water to the sides of the cabinet
  • L-handle is padlockable
  • Bottom holes provided for bolting cabinet to concrete pad
  • All doors have door switch, door (wind) stops and vault-style locking system
  • Grounding and bonding studs provided on all doors and body
  • Three cable entry boots provided in side compartment
  • Four cable entry gland plates provided between side and central compartments
