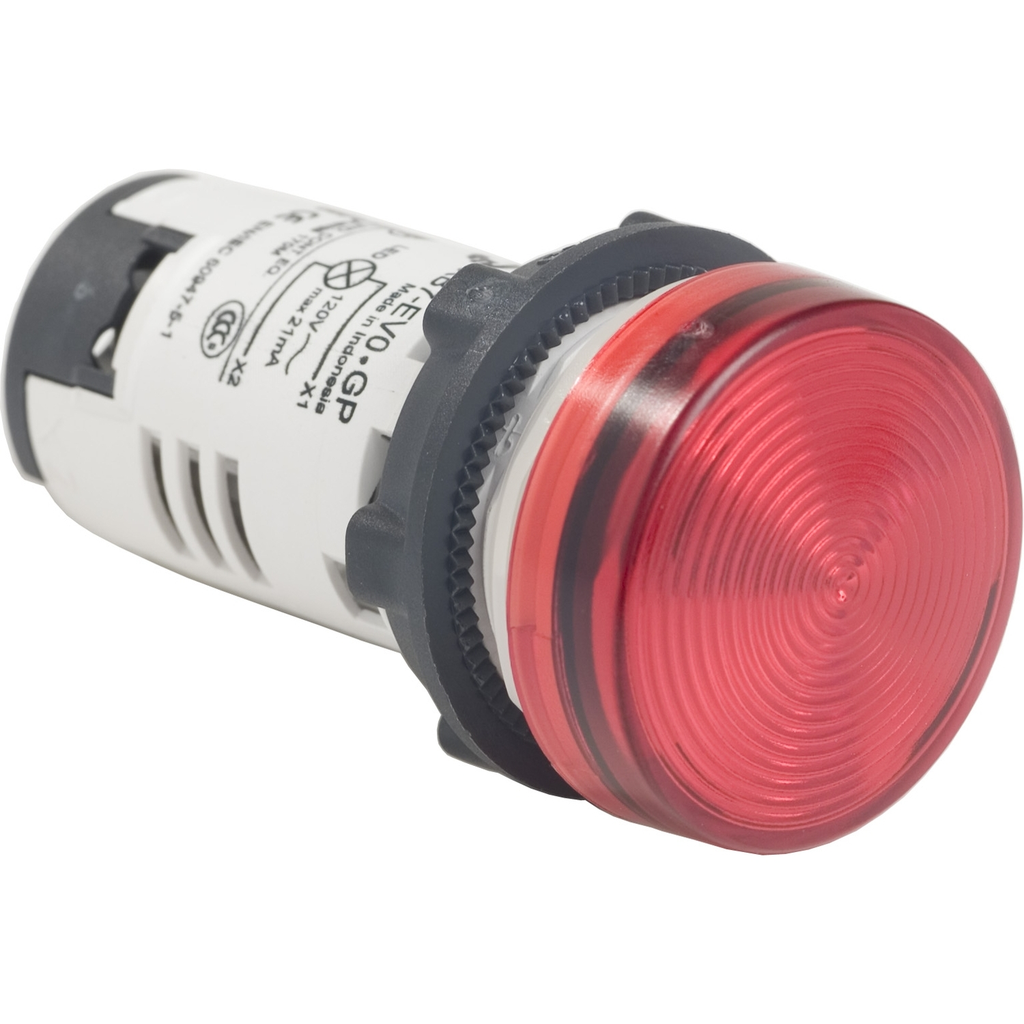

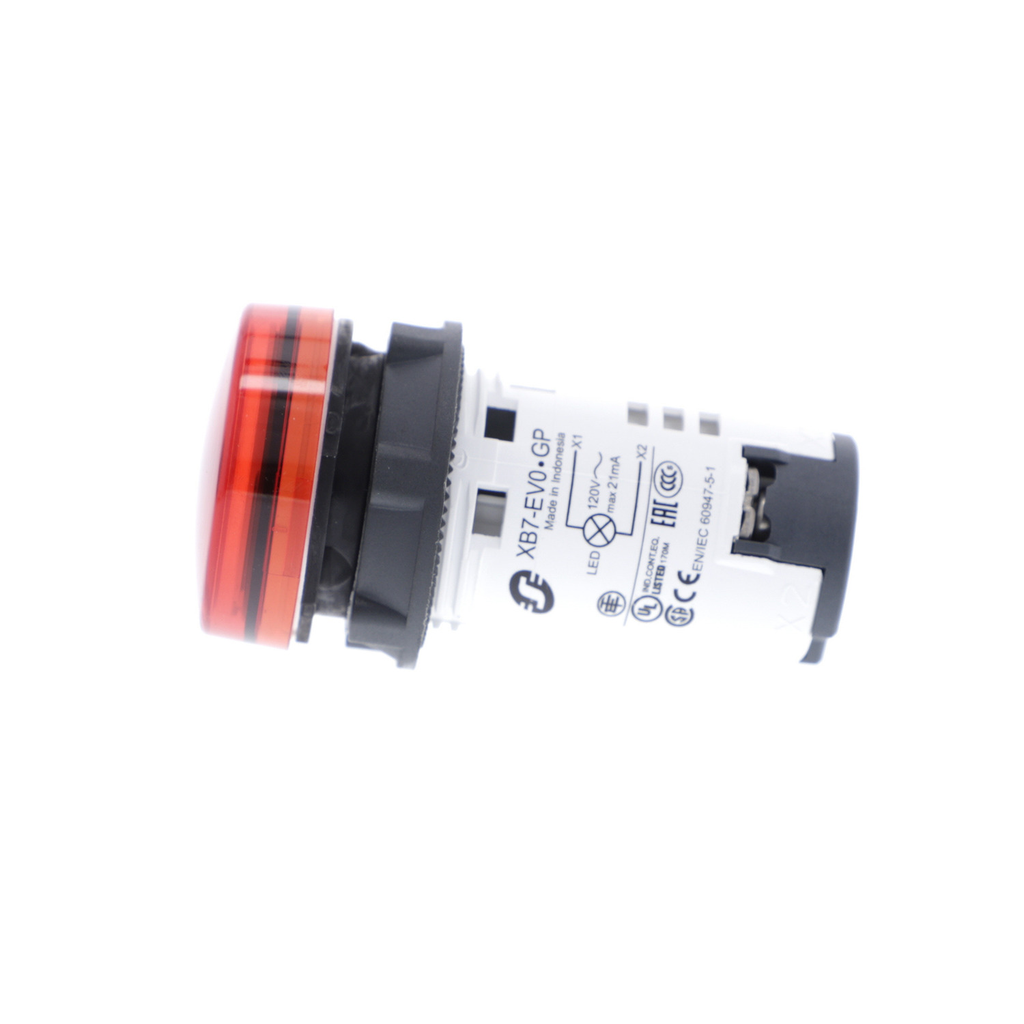

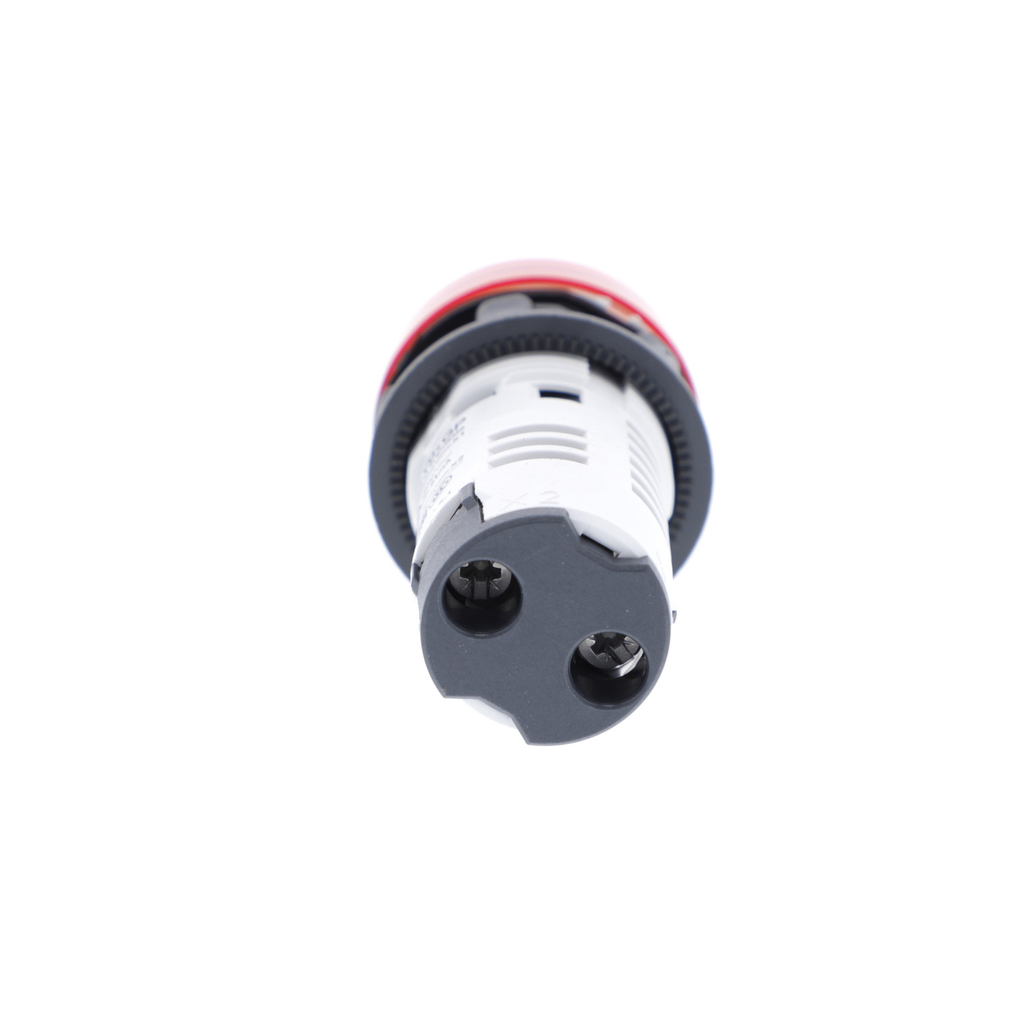

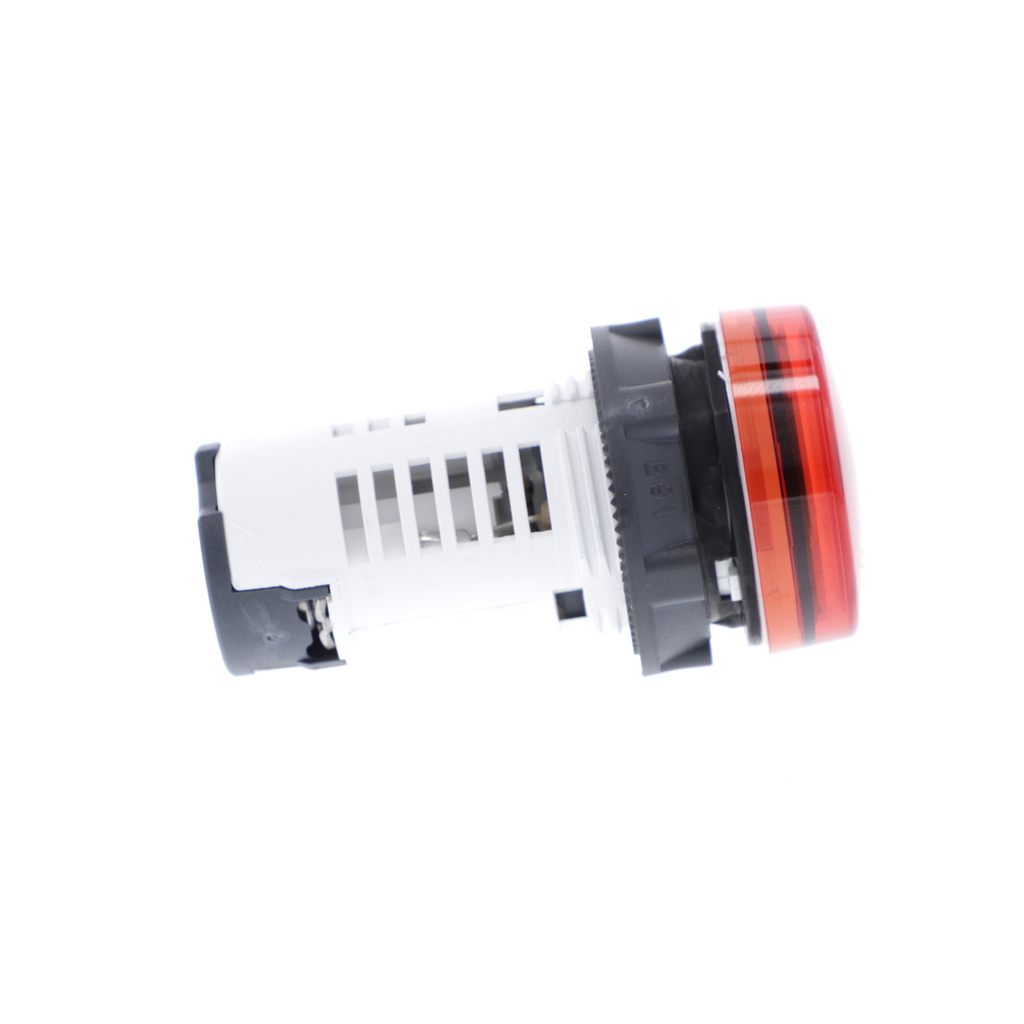

Square D XB7EV04GP 120 VAC 14 mA Red Pilot Light with Integral LED

Manufacturer: Square-D / Schneider | Catalog # XB7EV04GP | Cooper Electric Part # 797428
$26.46/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 7:00am ET
17 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB7, plain lens monolithic red pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product.

Technical Information

Current
18-21 mA
Enclosure
NEMA 4 UL 50 E-NEMA 12 UL 50 E
Indicator
LED,INTEGRAL LED,RED
Light Source
LED
Mounting Type
Fixing Hole 22.5 Mm 22.3 +0.4/0 IEC 60947-5-1
Net Weight
0.02 kg
Operating Temperature
-25-70 Adegrees C
Size
2.13 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Pilot light
Voltage
120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB7

General Product Info

12-Digit UPC
338911902275
Color
Red
GTiN
03389119022798
Product UPC
78590186063
Weight
0.02 kg

Dimensions

Depth
2.13 in
Height
1.14 in
Warranty Length
18 mth
Width
1.14 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
US Rated Supply Voltage
  • 120 V AC 50/60 Hz
Connections Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
Overvoltage Category
  • class II conforming to IEC 60536
Supply Voltage Limits
  • 100-132 V AC
IP Degree Of Protection
  • IP20 IEC 60529 rear face)
  • IP65 IEC 60529 front face)
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.000069488
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0486834788
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.4 kg CO2 eq.
  • 0.3606002493
Nema Degree Of Protection
  • NEMA 4 UL 50 E
  • NEMA 12 UL 50 E
UI Rated Insulation Voltage
  • 250 V 3)IEC 60947-1
Fixing Center
  • >= 30 x 40 mm support panel) metal 1-6 mm
  • >= 30 x 40 mm support panel) plastic 2-6 mm
  • >= 30 x 40 mm support panel) plastic 2-6 m
Accessories
  • ZBY2101
  • ZBY2303
  • ZB5AZ905
  • ZBZ32
Service Life
  • 70000 h at rated voltage and 25 °C
Fixing Mode
  • fixing nut beneath head 2-2.4 N.m
Vibration Resistance
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 3 kg CO2 eq.
  • 2.8513908451
Electromagnetic Compatibility
  • disturbing field emission class B conforming to IEC 55011
Accessory Products
  • ZBY2101
  • ZBY2303
  • ZB5AZ905
  • ZBZ32
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.0026153035
  • 0 kg CO2 eq.
Tightening Torque
  • 0.8-1.2 N.m IEC 60947-1
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
