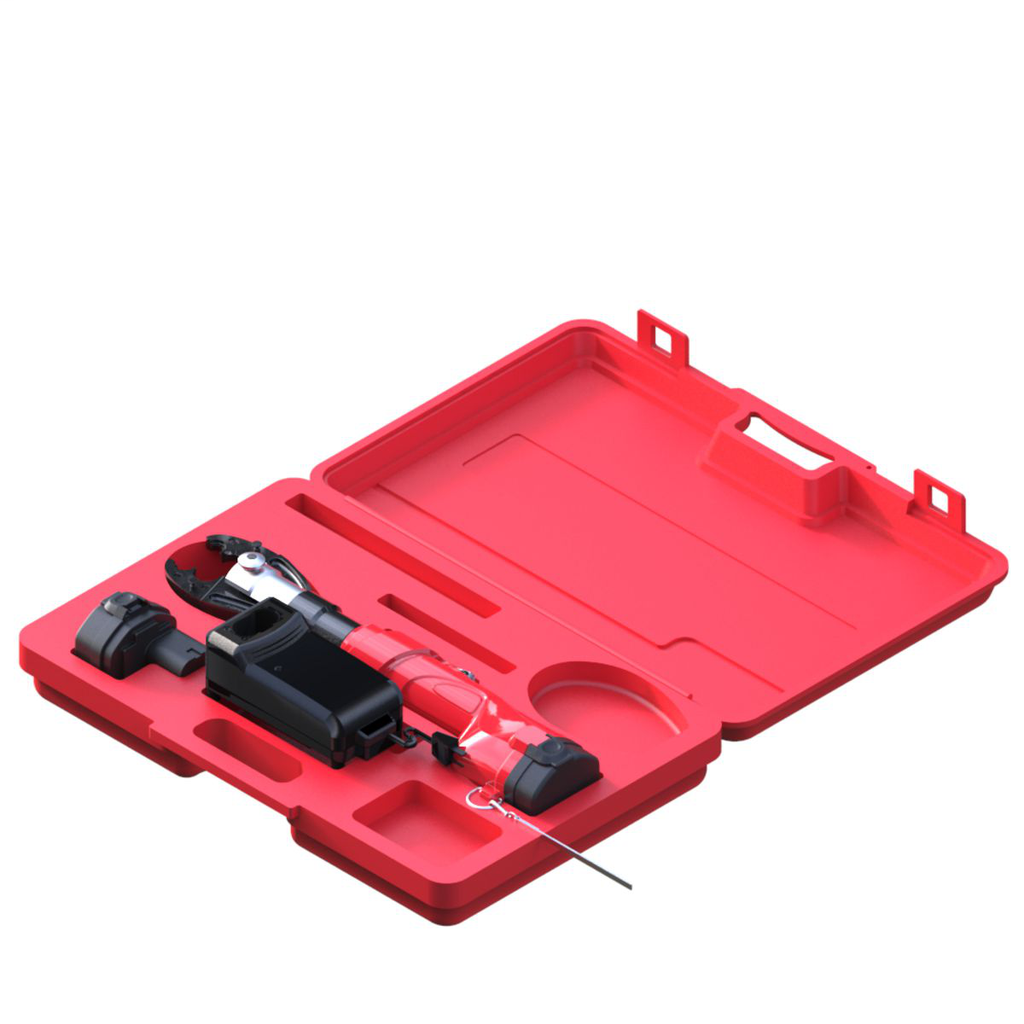

Product image for Burndy PATMD6814V BATTERY ACTUATED CRI
Image thumbnail 0
Image thumbnail 1
Email

Burndy PATMD6814V BATTERY ACTUATED CRI

Manufacturer: Burndy | Catalog # PATMD6814V | Cooper Electric Part # 796560
$2,330.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Safety Data Sheet
Battery Actuated Crimping Tool, Hydraulic Self Contained,6 Ton Output Force,10 AWG(Sol) - 2/0 AWG Copper,8 AWG-350 kcmil Aluminium,14 AWG(Sol)-4/0 ACSR,14.4V Ni-MH.

Technical Information

Applications
For Use On: Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld, 6201, 5005, Compressed, and Compact conductors, Copper Taps: #10 solid - 2/0 stranded, Aluminum and ACSR Taps: #14 solid - 4/0 ACSR, Stirrups: #6 - 4/0 ACSR, Overhead Full Tension Deadends, Full Tension Splices and Terminals #10 Str. - 4/0 ACSR, Installs splices, taps or terminations:#8 - 500 kcmil Copper Str. (YA, YA-L, YS, YS-L), #8 - 350 kcmil flex, #8 - 350 kcmil Aluminum (YA-A & YS-A)
Conductor Size
8 AWG-350 kcmil (AL)/10-2/0 AWG (CU)
Crimping Force
6 TON
Size
20.9 in x 3.7 in x 5.5 in
Type
Hydraulic Self Contained Battery Actuated Crimping Tool
Wire Size
Copper: 10 Solid-2/0 AWG, Aluminum: 8 AWG-350 KCMIL, ACSR: 14 Solid-4/0 AWG

Manufacturer Information

Brand
Burndy
Sub Brand
Patriot

General Product Info

12-Digit UPC
781810449820
GTiN
00781810449820
Product UPC
78181044982
Weight
7.8 lb

Dimensions

Height
5-1/2 Inch
Length
20.9 Inch
Overall Length
20.91 IN
Width
3.7 in

Certifications and Compliance

Buy American Compliant
Y
CSA
No
Features
  • Advance design high speed pump completes a crimp in approximately 2 seconds
  • Features: Refined hydraulic system for ultra performance, speed and reliability, Field proven electronics - ultimate reliability in the harshest environments, Advance design high speed pump completes a crimp in approximately 2 seconds, True one-handed operation for advance, retract and hold, 6-ton output force for reliable compression connections, Pressure pop-off valve indicates completion of crimp, Interchangeable scissor action crimp jaws allow easier access to tight spaces, Ram holds position when trigger is released to allow the operator to check alignment prior to crimping, Uses standard BURNDY W and X dies already in use, Large hand grip area allows easier operation with gloves, Ergonomically balanced tool design helps lessen operator fatgue, Durable high impact formed carrying case, High capacity 2.6 AH Ni-MH batteries provide more crimps per charge, 3-year limited warranty on tool, Lifetime warranty on INFINITY DRIVE, 1-year warranty on batteries and charger5 Year Limited Warranty on Tool, 3 year warranty on the batteries and charger
  • Pressure \"pop-off\" valve indicated completion of crimp
  • Interchangeable scissor-action crimp jaws allow for easier access
  • Uses standard \"W\" and \"X\" BURNDY® dies already in use
  • Large hand grip area allows for easier operation with gloves
