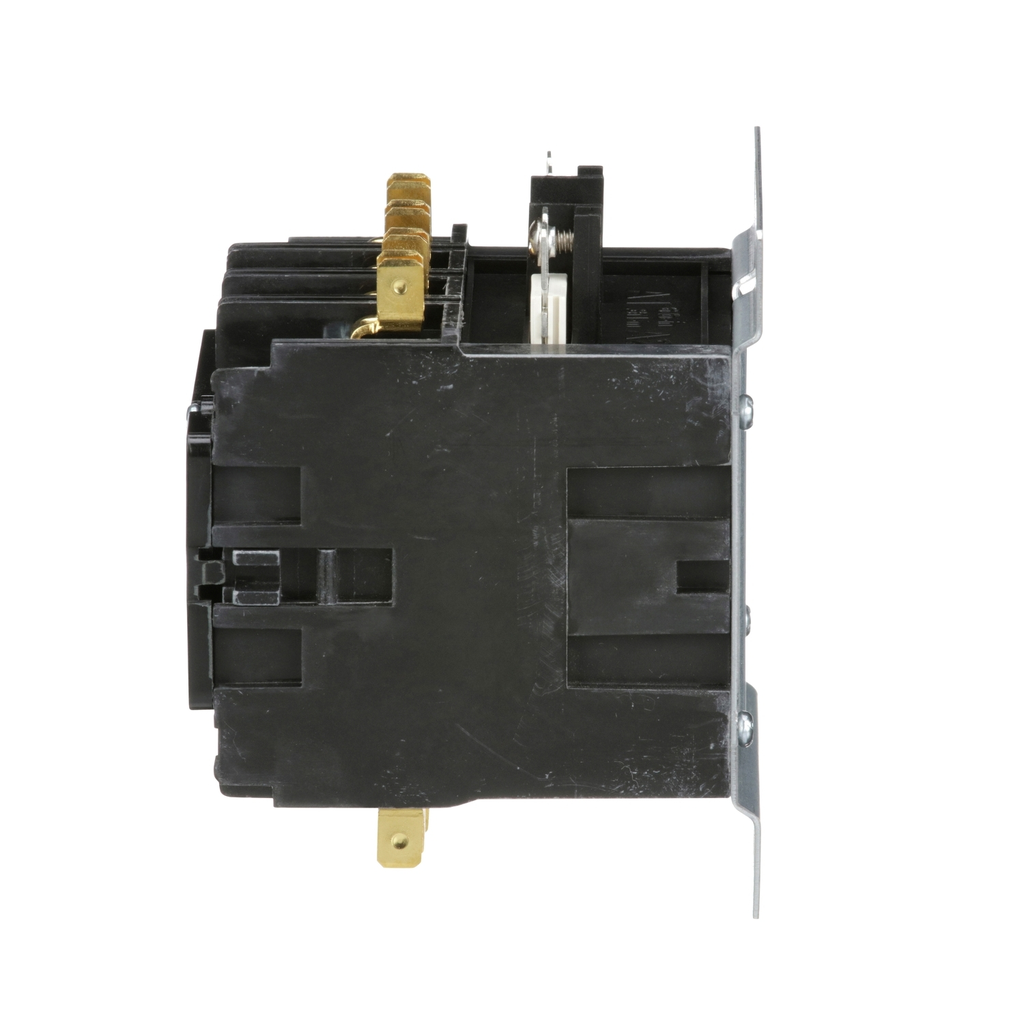

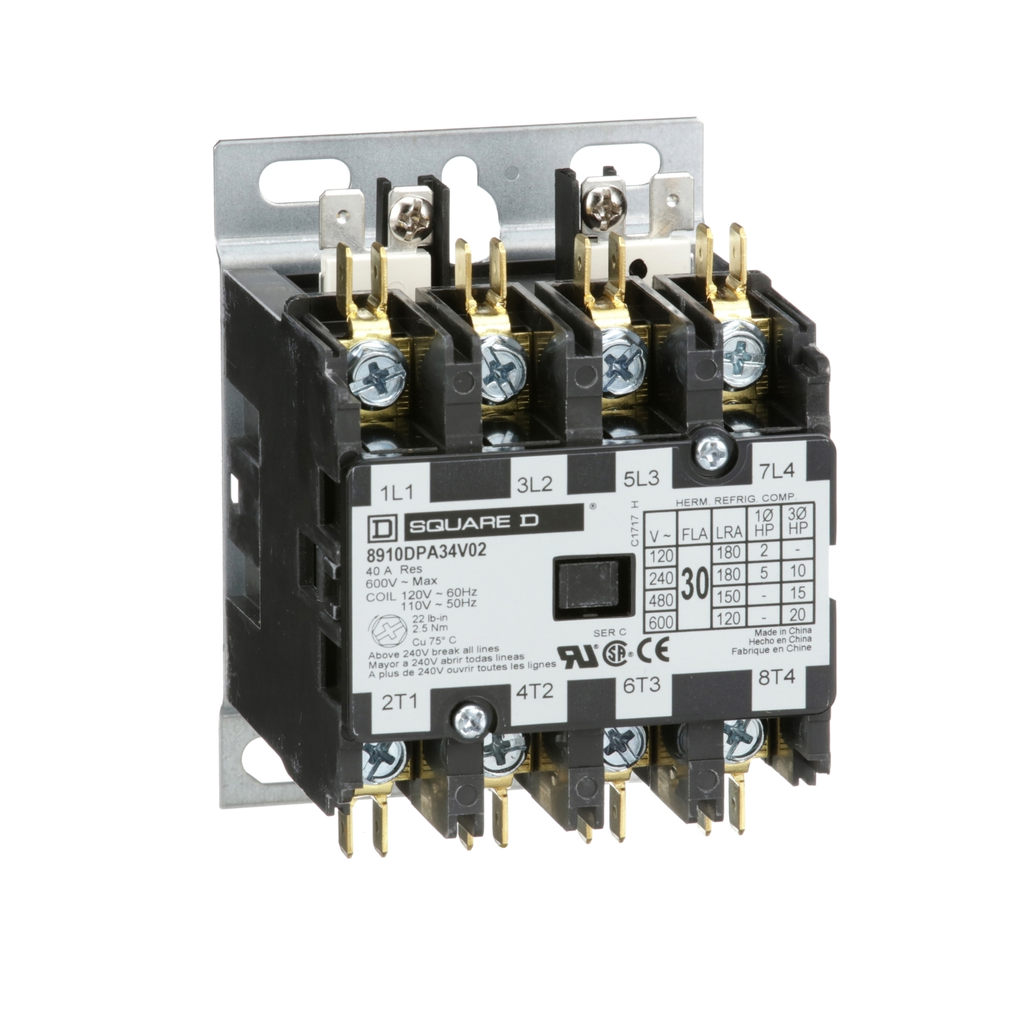

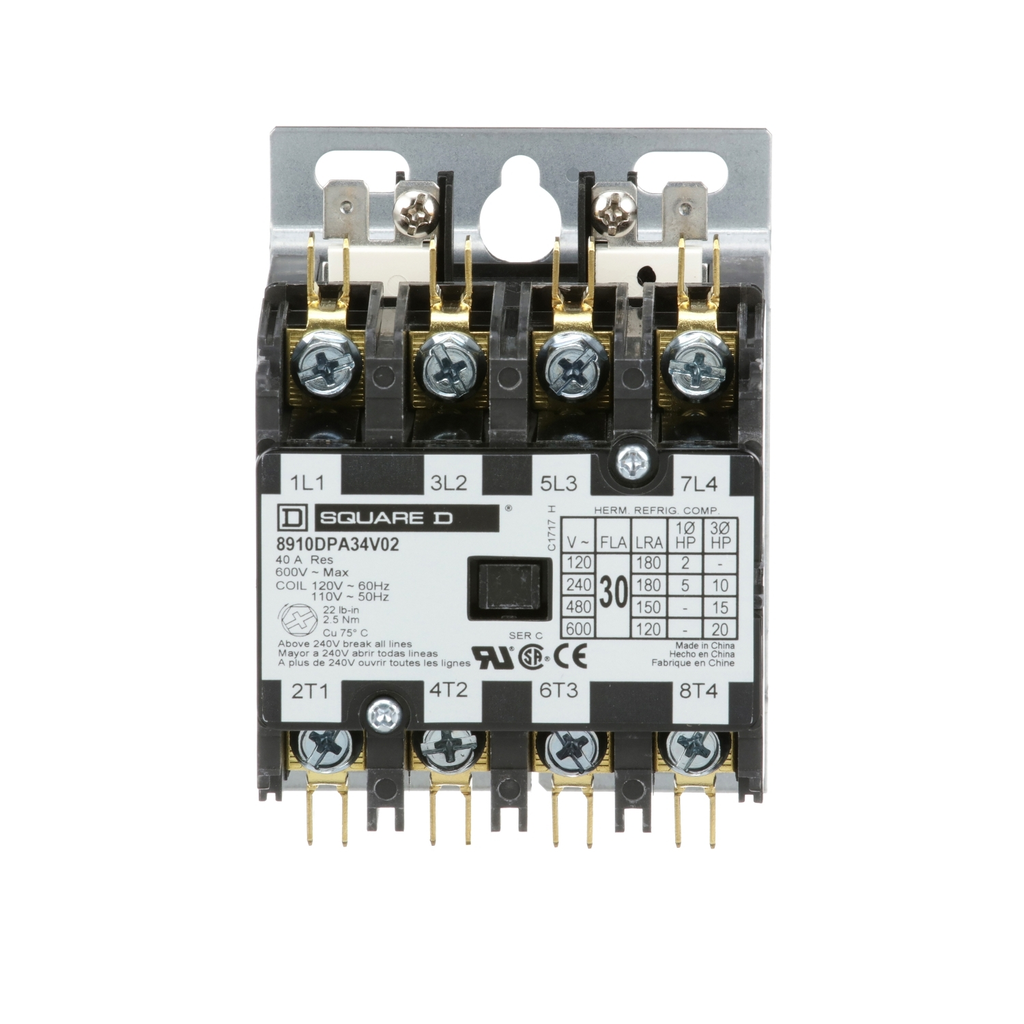

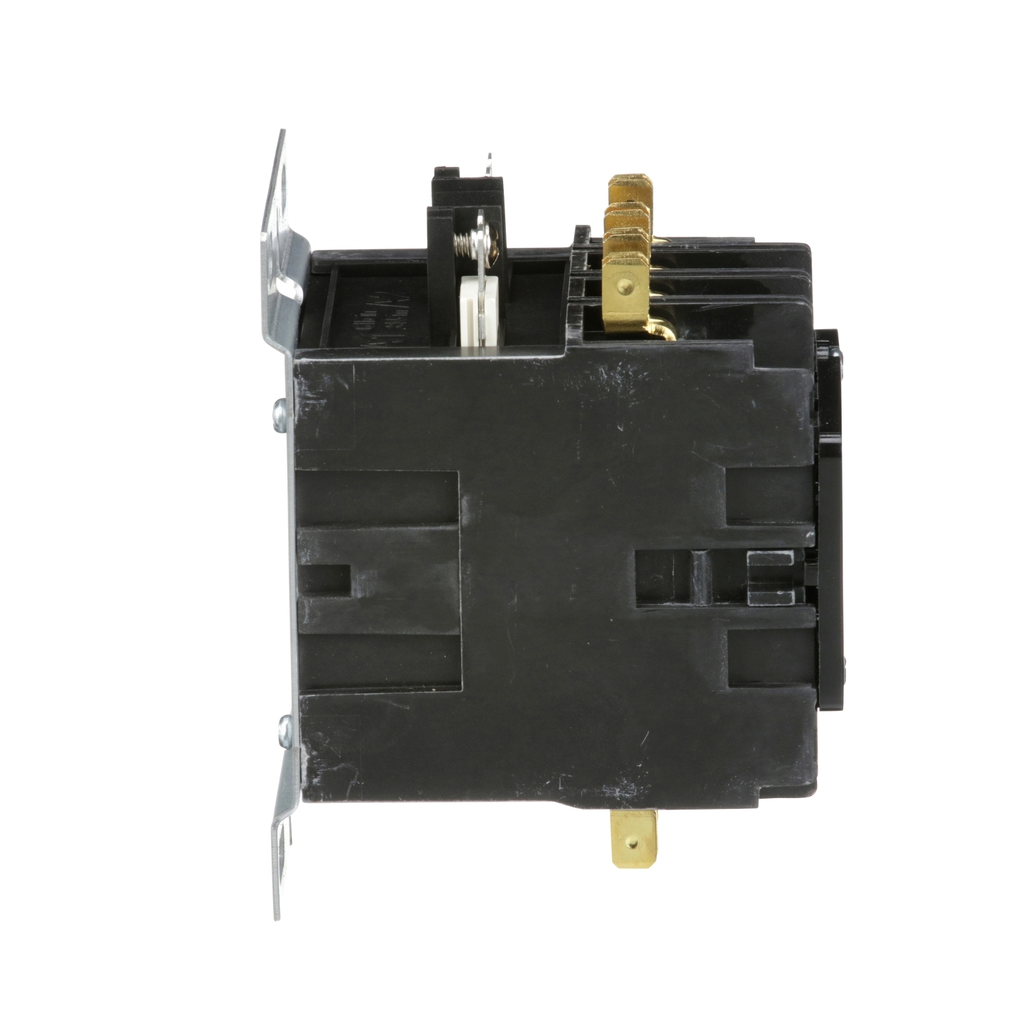

Square D 8910DPA34V02 110/120 VAC 30 Amp 4-Pole 4NO NEMA 1 Non-Reversing Definite Purpose Contactor

Manufacturer: Square-D / Schneider | Catalog # 8910DPA34V02 | Cooper Electric Part # 79617
$126.22/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3 4
24VAC 120VAC/110VAC 208/240VAC 277VAC 480VAC
4 available

For Pick Up

at Ocean Opens Monday 7:00am ET
34 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Technical Information

Amperage
30 Amp
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
120 V AC 60 HZ-110 V AC 50 HZ,600 V AC
Contact Configuration
4 NO
Contact Rating
30 A
Line Rated Current
30 A
Net Weight
1.3 lb
Number of Phases
3 Phase
Number of Poles
4 Pole
Size
3.00 in
TC Connection
Binder head;Quick connect terminals
Type
Definite Purpose Contactor
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
DPA

General Product Info

12-Digit UPC
785901073505
GTiN
00785901073505
Product UPC
78590107350
Weight
.59 kg

Dimensions

Depth
3 Inch
Height
3.77 Inch
Warranty Length
18 mth
Width
2.75 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
USA
Compatible Products
  • 9999D10
  • 9999D01
  • 9999D11
  • 9999D20
  • 9999DMB1
  • 9991DPG2
