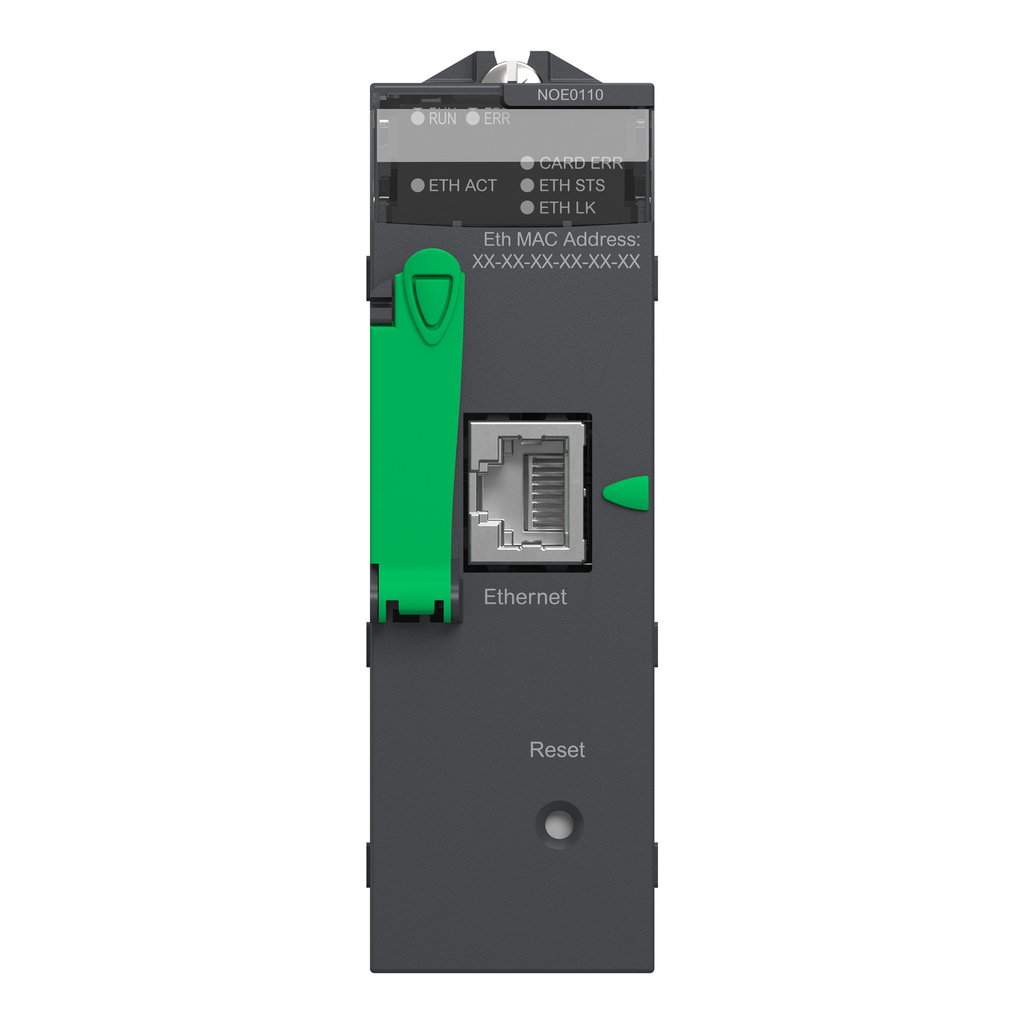

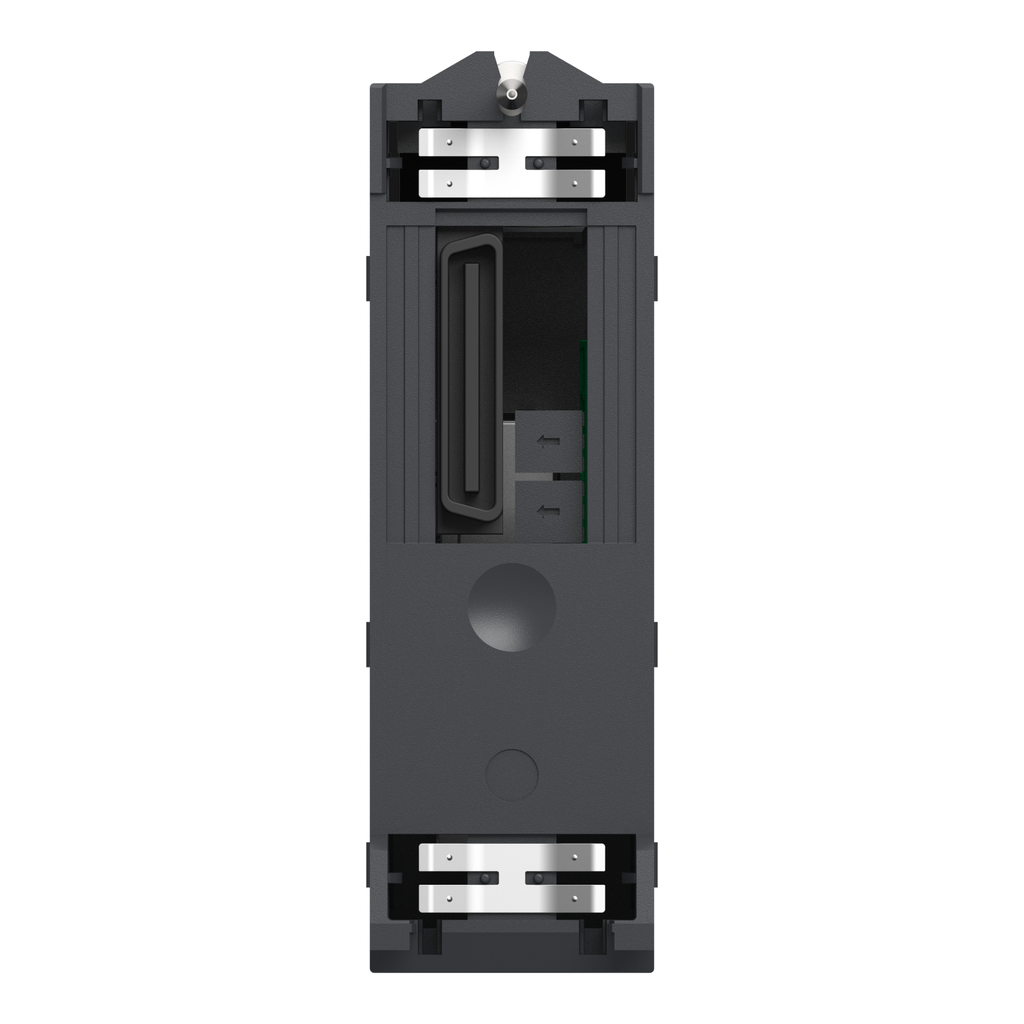

Square D BMXNOE0110 M340 FACTORYCAST MODULE

Manufacturer: Square-D / Schneider | Catalog # BMXNOE0110 | Cooper Electric Part # 795336
$2,797.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.

Technical Information

Control Type
RESET push-button cold restart NULL
Current
90 mA
Indicator
ACTIVITY ON ETHERNET NETWORK (ETH ACT) 1 LED GREEN)-PROCESSOR RUNNING (RUN) 1 LED GREEN)-STATUS OF ETHERNET NETWORK (ETH STS) 1 LED GREEN)-DATA RATE (ETH 100) 1 LED RED)-MEMORY CARD FAULT (CARD ERR) 1 LED RED)-PROCESSOR OR SYSTEM FAULT (ERR) 1 LED RED)
Memory
SUPPLIED FLASH MEMORY CARD (BMXRWSC016M)-INTERNAL RAM 16000 KB
Net Weight
0.2 kg
Power Supply
Internal power supply via rack
Standard
EN 61000-6-2,EN 61000-6-4,EN 61131-2,EN 61010-2-201
Temperature Rating
0-60 A?degrees C
Type
Ethernet TCP/IP network module

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MODICON M340

General Product Info

12-Digit UPC
595863972859
GTiN
03595863972856
Product UPC
78590154188
Weight
0.2 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL 508
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • TCSECE3M3M1S4
  • TCSECE3M3M2S4
  • TCSECE3M3M3S4
  • TCSECE3M3M5S4
  • TCSECU3M3M3S4
  • TCSECU3M3M5S4
Cross Sell Products
  • BMXNOE0110H
  • BMXP341000
  • BMXP342000
  • BMXP3420102
  • BMXP342020
  • BMXP3420302
Spare Part Products
  • BMXRWSFC032M
