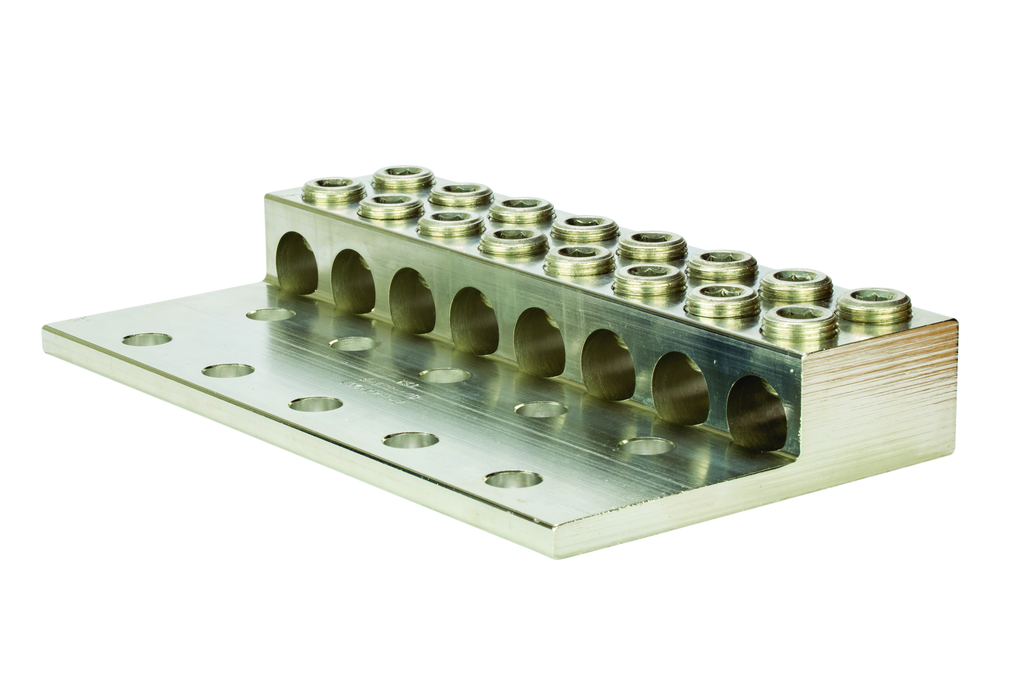

Product image for NSI 8-1000LL12 Heavy Duty Dual Rate
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

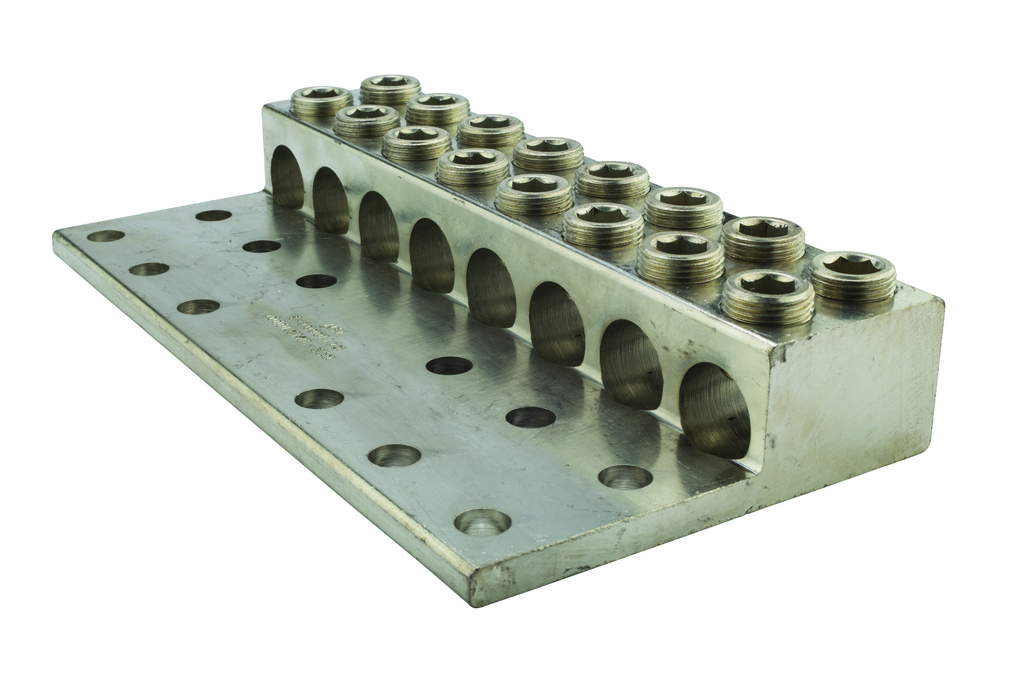

NSI 8-1000LL12 Heavy Duty Dual Rate

Manufacturer: NSi | Catalog # 8-1000LL12 | Cooper Electric Part # 794900
$536.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
8 Port Heavy Duty Dual Rated Transformer Lug 1000 MCM - 500 MCM Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
1/2 IN
Conductor Size
500-1000 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
12
Number of Conductors
8,8
Number of Poles
1 Pole
Number of Ports
8
Temperature Rating
90 degrees C
Type
Transformer Lug-Heavy Duty
Voltage
600 Volt
Wire Size
500-1000 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Utilities

General Product Info

12-Digit UPC
662381027269
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381027269
Product UPC
66238102726

Dimensions

Height
1-7/8 Inch
Length
6.188 Inch
Warranty Length
1 yr
Width
11.982 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Two set-screws per wire hole ensure an exceptional connection
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • Mounting hole spacing is NEMA 1 3/4\" spacing
Certifications and Standards
  • ANSI
