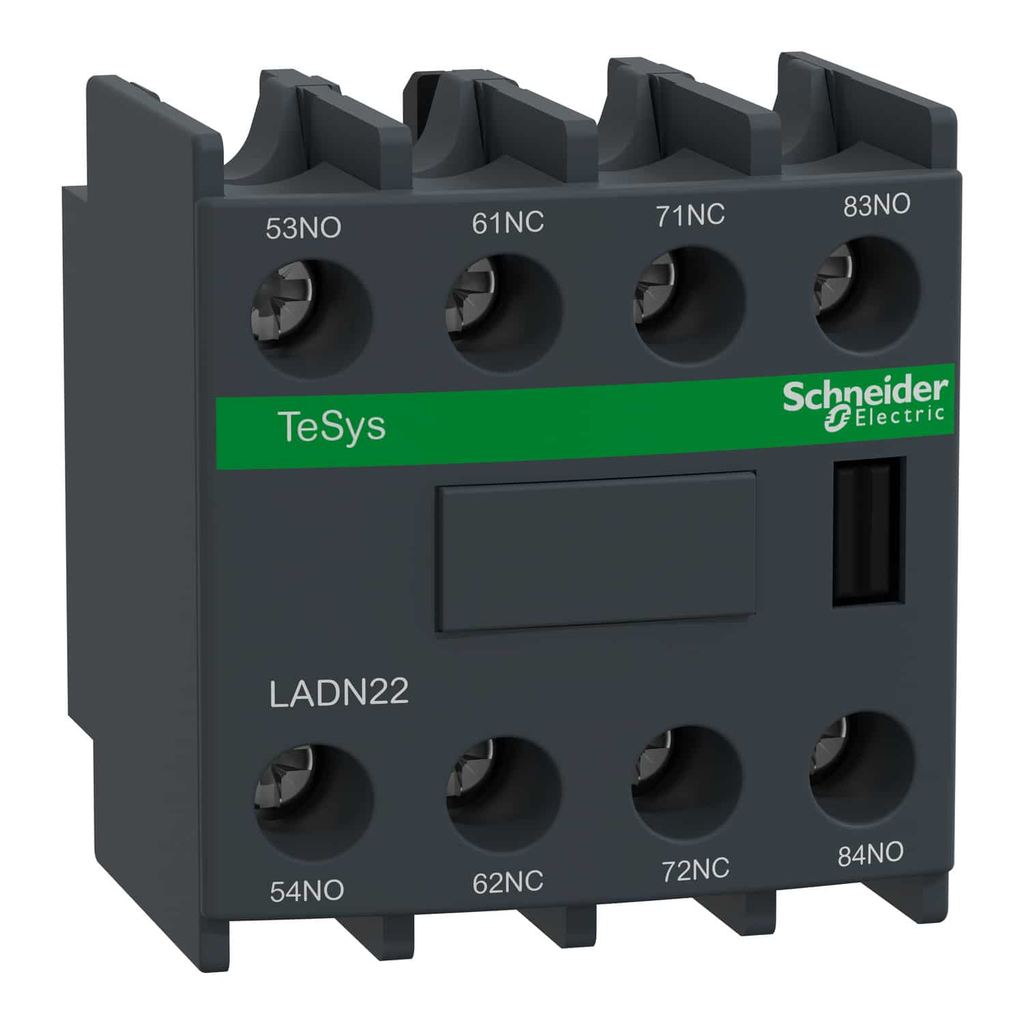

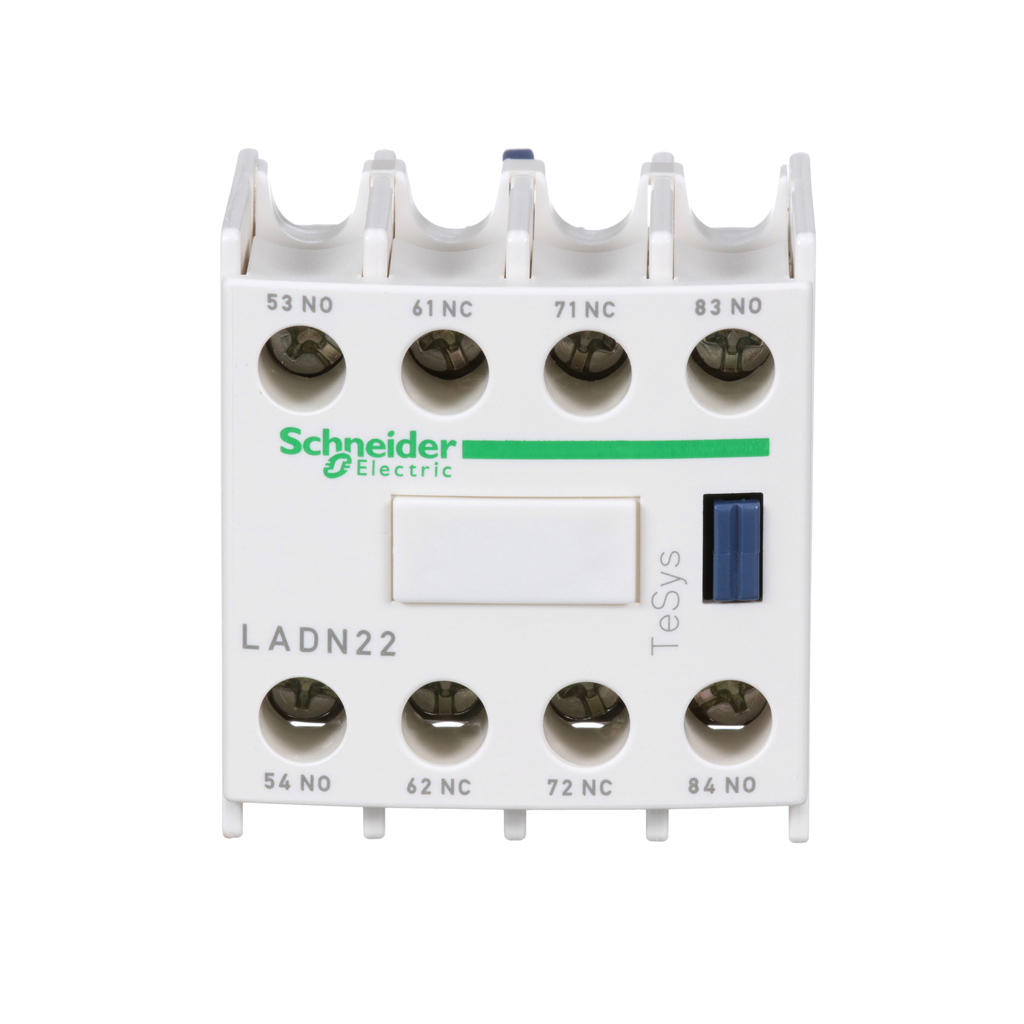

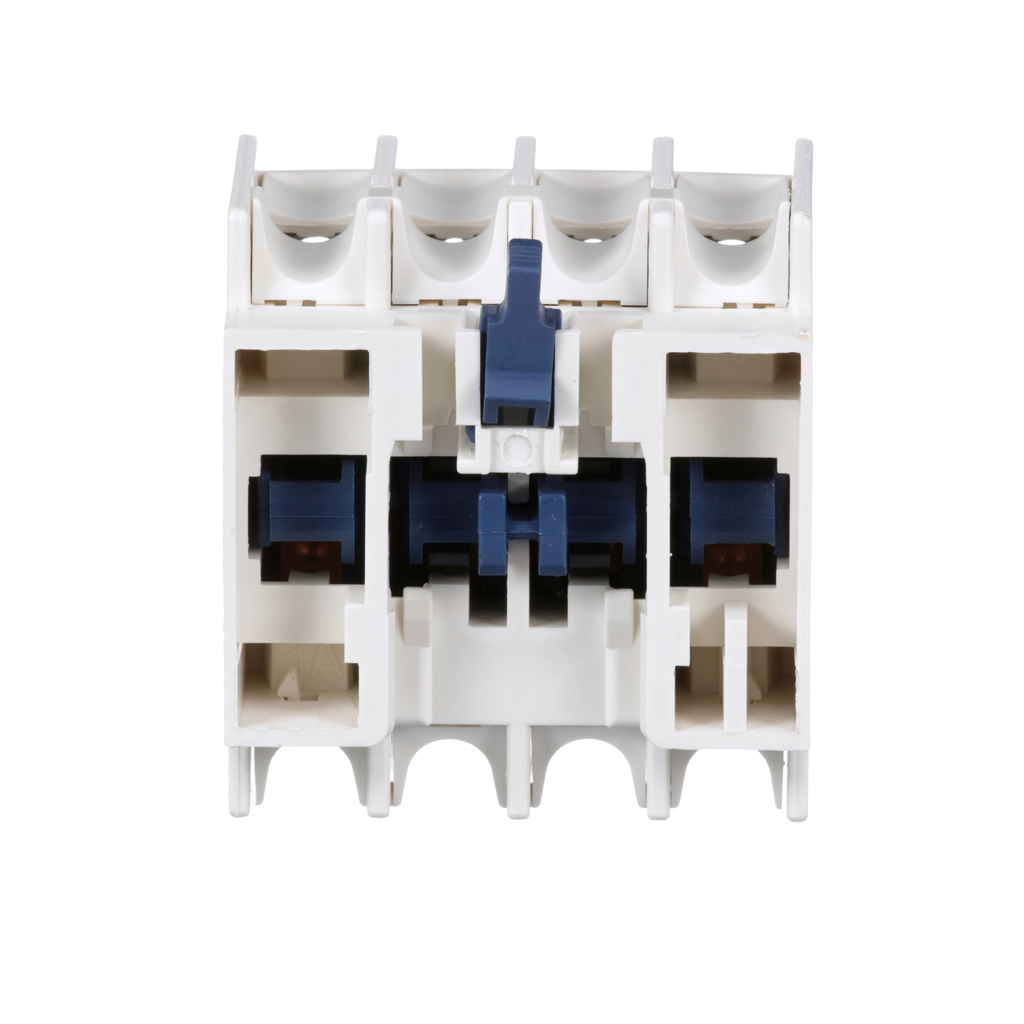

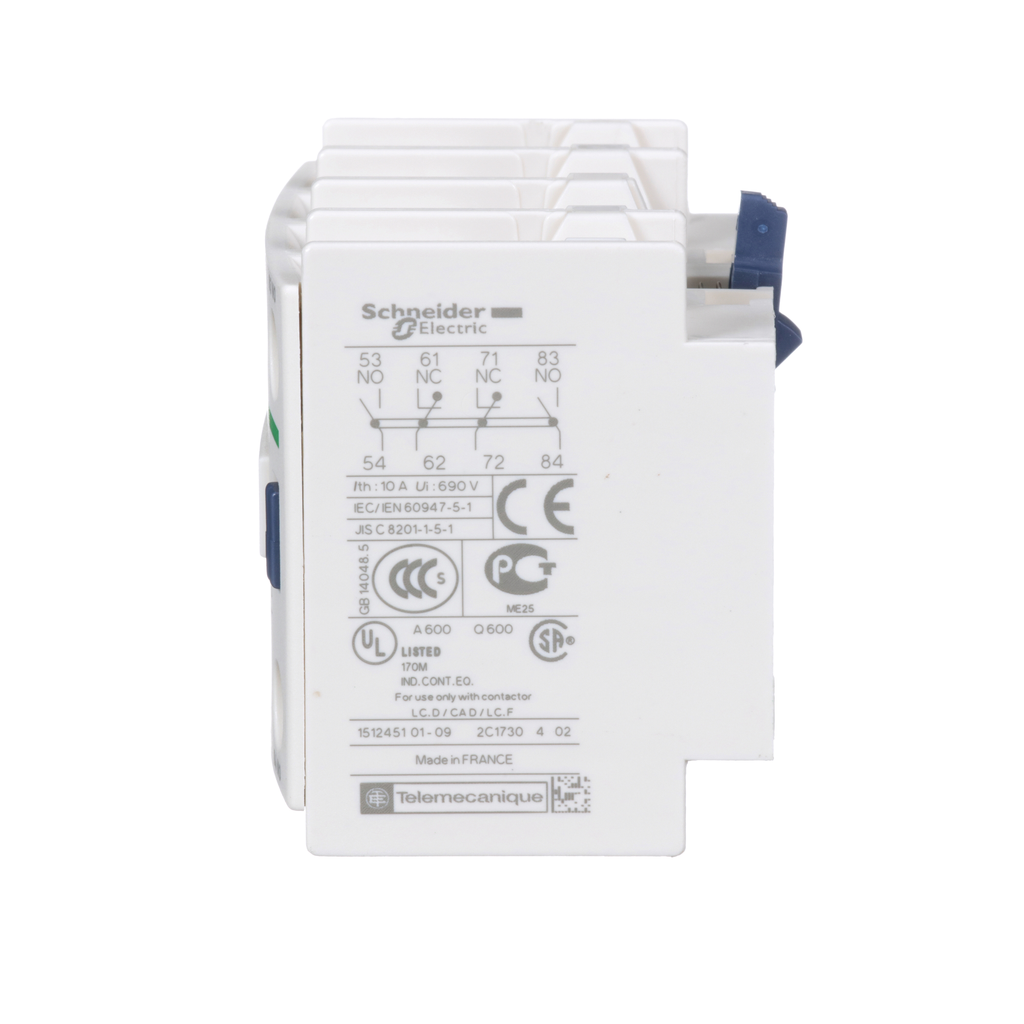

Square D LADN22 690 VAC 10 Amp 8-Pole 2NO 2NC Front Mount Screw Clamp Terminal Contactor Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # LADN22 | Cooper Electric Part # 79434
$49.31/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
22 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D contactors have a variety of auxiliary contacts. This auxiliary contact mounts on the top of a contactor with rating from 9 amp to 150 amp. The two NO and two NC contacts can be used in the control circuit. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Technical Information

Applications
CR1F,TESYS D LC1D CONTACTOR
Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
2 NO + 2 NC
Contact Rating
10 A 60 AC
Net Weight
0.05 kg
Operating Temperature
-5-60 Adegrees C
Range
TeSys
Size
1.65 in
Standard
EN/IEC 60947-5-1,GB/T 14048.5
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END
Type
Auxiliary contact block
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys D;TeSys Deca

General Product Info

12-Digit UPC
338911038400
Color
Gray
GTiN
03389110384031
Product UPC
78590121370
Weight
0.05 kg

Dimensions

Depth
1.65 in
Height
1.89 in
Warranty Length
18 mth
Width
1.73 in

Certifications and Compliance

Certifications
CB,CCC,CSA,UKCA,UL
Country of Origin
Czechia
Connections Terminals
  • screw clamp terminals 1 1-4 mm²flexible with cable end
  • screw clamp terminals 1 1-4 mm²flexible without cable end
  • screw clamp terminals 2 1-2.5 mm²flexible with cable end
  • screw clamp terminals 2 1-4 mm²flexible without cable end
  • screw clamp terminals 1 1-4 mm²rigid without cable end
  • screw clamp terminals 2 1-4 mm²rigid without cable end
IE Rated Operational Current
  • 6 A at 120 V AC-15
  • 1.04 A at 690 V AC-15
  • 0.55 A at 125 V DC-13
  • 0.1 A at 600 V DC-13
ITH Conventional Free Air Thermal Current
  • 10 A (at 60 °C)
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-back.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-back.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-bottom.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-bottom.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-front.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-front.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-isometric.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-isometric.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-left.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-left.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-right.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-right.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-top.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004368_3D-CAD&p_File_name=MCADPD0004368_2D-top.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=LADN4_0_OD
Range Compatibility
  • TeSys D CAD
  • TeSys D LC1D
  • TeSys F LC1F
  • TeSys F CR1F
  • TeSys Deca CAD
  • TeSys Deca LC1D
IP Degree Of Protection
  • IP20 conforming to IEC 60529
Carbon Footprint Of The Installation Phase A5
  • 0.0096449
  • 0 kg CO2 eq.
Non Overlap Time
  • 1.5 ms on de-energisation no overlap between NC and NO contact
  • 1.5 ms on energisation no overlap between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.17585
Standards
  • EN/IEC 60947-5-1
  • GB/T 14048.5
  • EN 50012
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • IEC 60335-1:Clause 30.2
  • IEC 60335-2-40:Annex JJ
  • UL 60335-2-40:Annex JJ
Related Products
  • LC1D09M7
  • LC1D09BD
  • LC1D18M7
  • LC1D25M7
  • LC1D09P7
  • LC1D09B7
  • LC1D09F7
  • LC1D12M7
  • LC1D32M7
  • LC1D12B7
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.5 kg CO2 eq.
  • 0.47506
Protective Treatment
  • TH IEC 60068
UI Rated Insulation Voltage
  • 690 V IEC 60947-5-1
  • 600 V UL
  • 600 V CSA
Protection Type
  • gG fuse 10 A
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 3 kg CO2 eq.
  • 3.1606
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Carbon Footprint Of The Distribution Phase A4
  • 0.077182
  • 0.1 kg CO2 eq.
Tightening Torque
  • 1.7 N.m flat Ø 6 mm
  • 1.7 N.m Philips No 2
  • 1.7 N.m pozidriv No 2
Permissible Short Time Rating
  • 100 A 60 °C 1 s
  • 120 A 60 °C 500 ms
  • 140 A 60 °C 100 ms
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 140 A AC conforming to IEC 60947-5-1
  • 250 A DC conforming to IEC 60947-5-1
UE Rated Operational Voltage
  • 690 V AC 25...400 Hz
Range
  • TeSys
  • TeSys Deca
