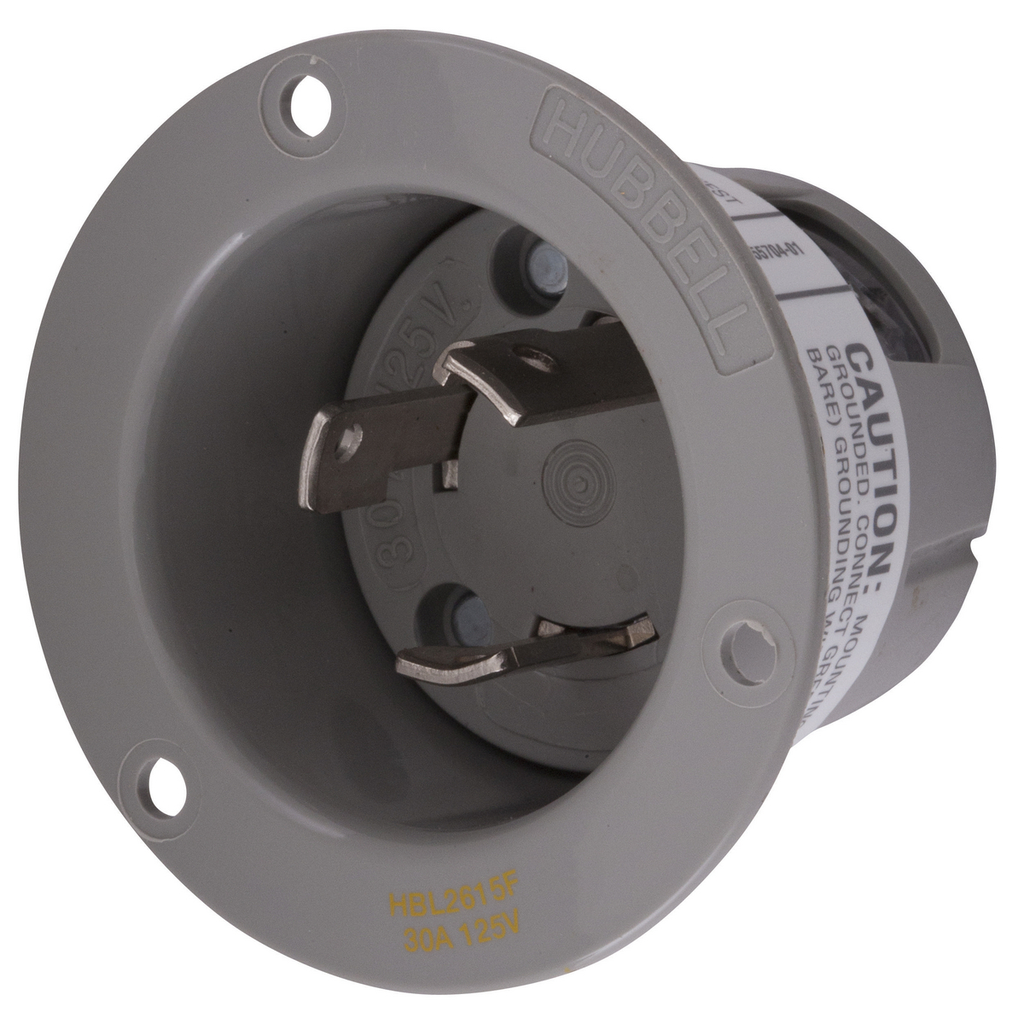

Hubbell HBL2615FCAT#2615, MOD, HI TEMP, GY

Manufacturer: Hubbell Wiring Device | Catalog # HBL2615F | Cooper Electric Part # 792454
$68.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

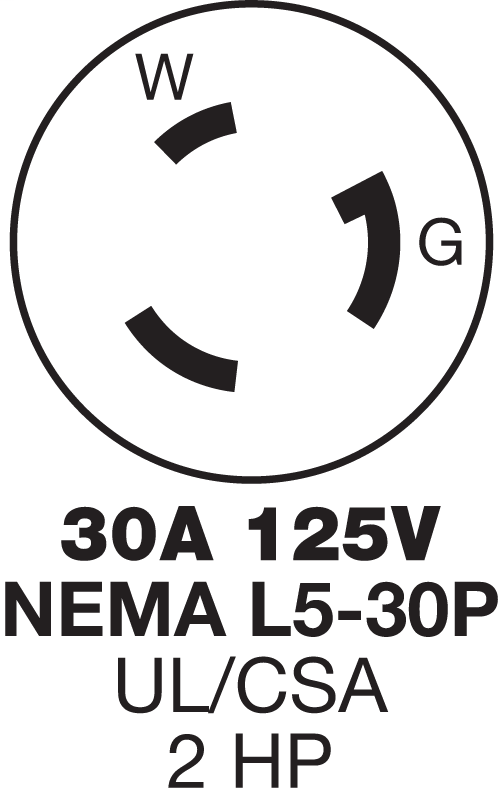

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 125V 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray, High Temp Version

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
Mounting Type
Screw
NEMA
L5-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

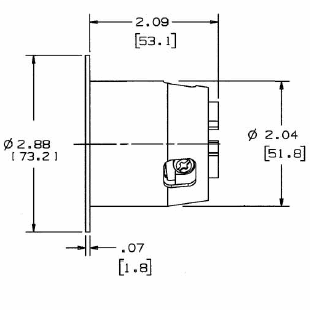

2.88 in x 2.88 in x 2.09 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminals
Type
High Temp Version, Locking, Industrial Grade
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038803
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038803
Product UPC
78358503880
Weight
0.25 lb

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • High Temperature Version
