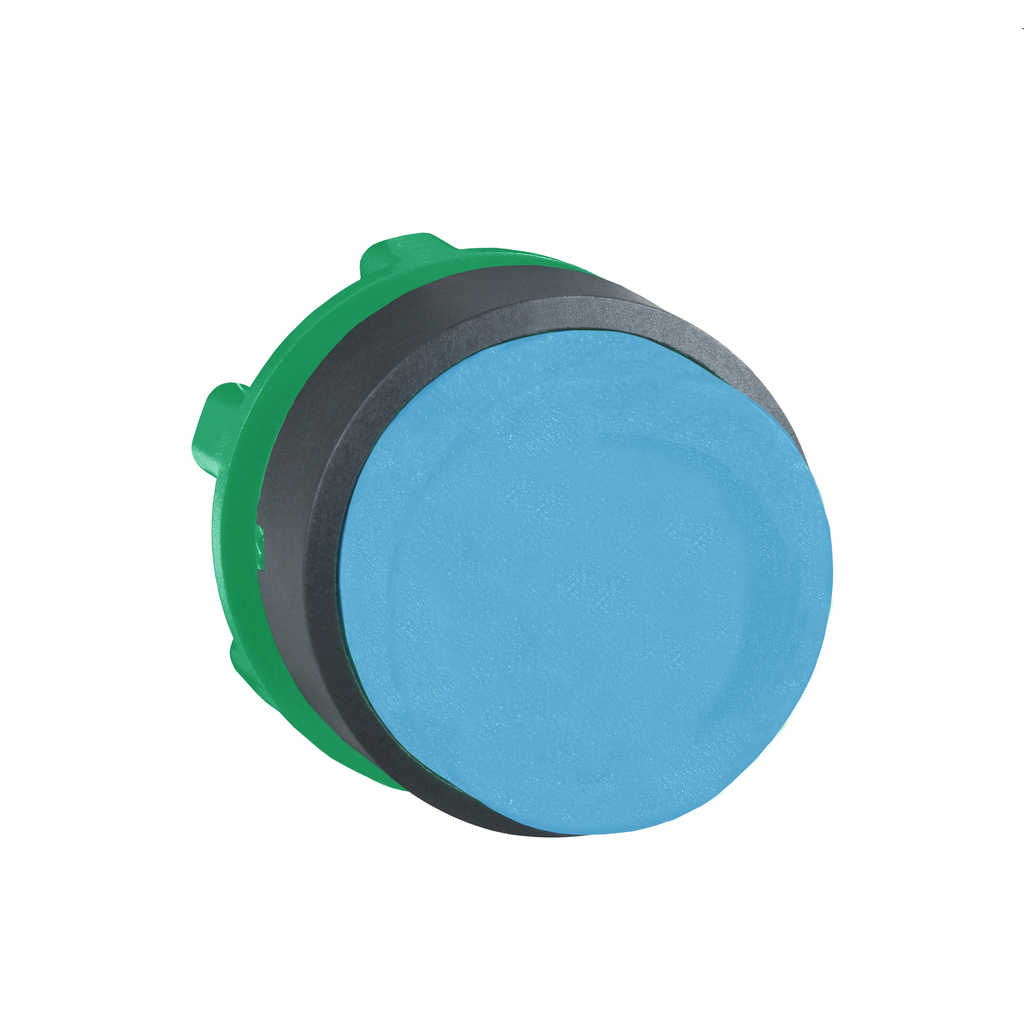

Square D ZB5AL6 22 mm Blue Round Extended Momentary Non-Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AL6 | Cooper Electric Part # 792136
$9.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This blue projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Actuator
BLUE PROJECTING, UNMARKED,SPRING RETURN
Applications
PUSH-BUTTON
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Indicator
BLUE
Net Weight
0.019 kg
Operating Temperature
-40-70 Adegrees C
Size
22 MM,29 MM,29 MM,33 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
HEAD FOR NON-ILLUMINATED PUSH-BUTTON

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110906533
Color
Blue
GTiN
03389110906530
Product UPC
78590138736
Weight
0.04 lb

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Compatible Products
  • ZB5AZ905
  • ZBP0
  • ZBY2101
  • ZBYLEG304001
  • ZBYP2101
Cross Sell Products
  • NSYPLM43G
  • XALK84W3BE
