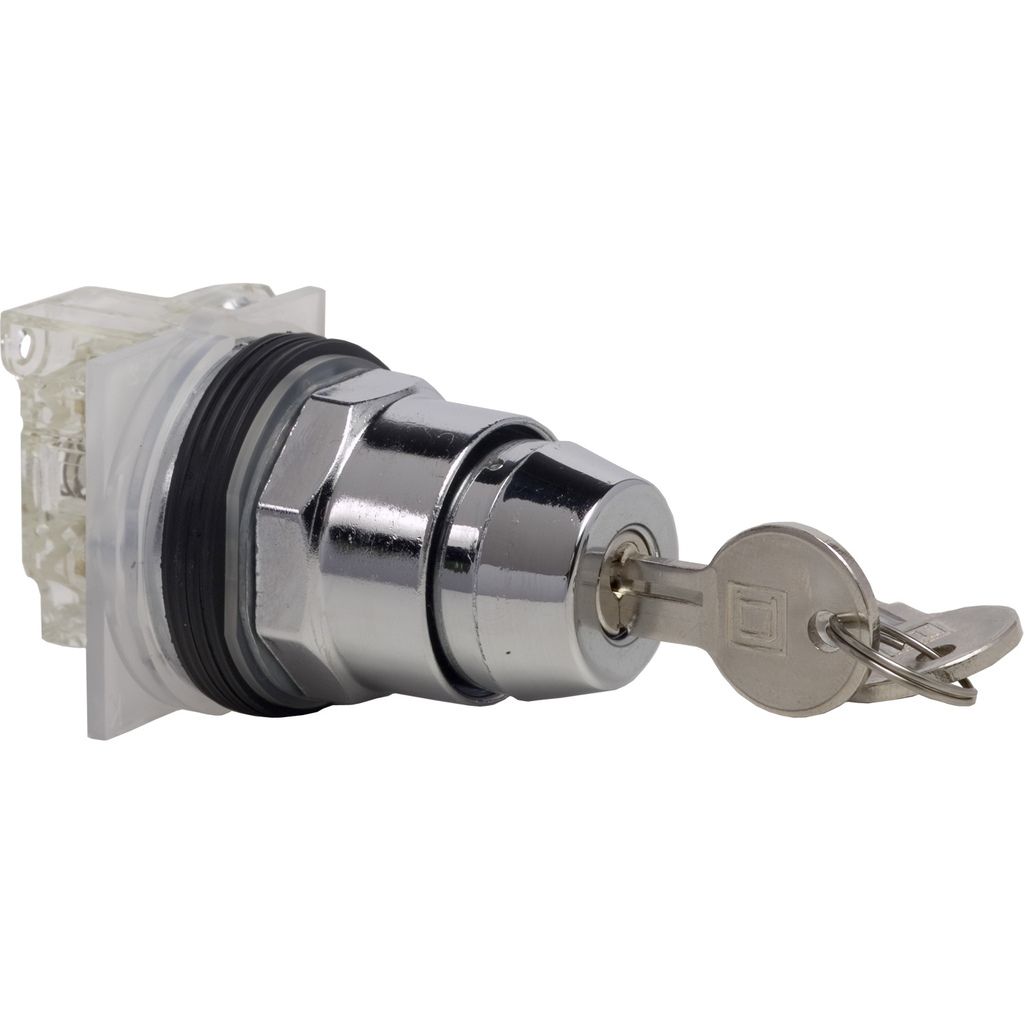

Product image for Square D 9001KS53K5H1 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 3-Position Round Key Non-Illuminated Selector Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9001KS53K5H1 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 3-Position Round Key Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # 9001KS53K5H1 | Cooper Electric Part # 790696
$254.68/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

Technical Information

Action
SPRING RETURN
Actuator
3 positions
Amperage
10 Amp
Bezel Material
Metal
Contact Configuration
1 NO - 1 NC
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/6/12/13
Indicator
BLACK
Size
1.18 in
TC Connection
SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA IEC 60947-1
Type
Selector switch
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
K

General Product Info

12-Digit UPC
785901721611
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901721611
Product UPC
78590172161

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
