SQUARED GV2RT06 TeSys GV2 Manual St

Manufacturer: Square-D / Schneider | Catalog # GV2RT06 | Cooper Electric Part # 788560
$178.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

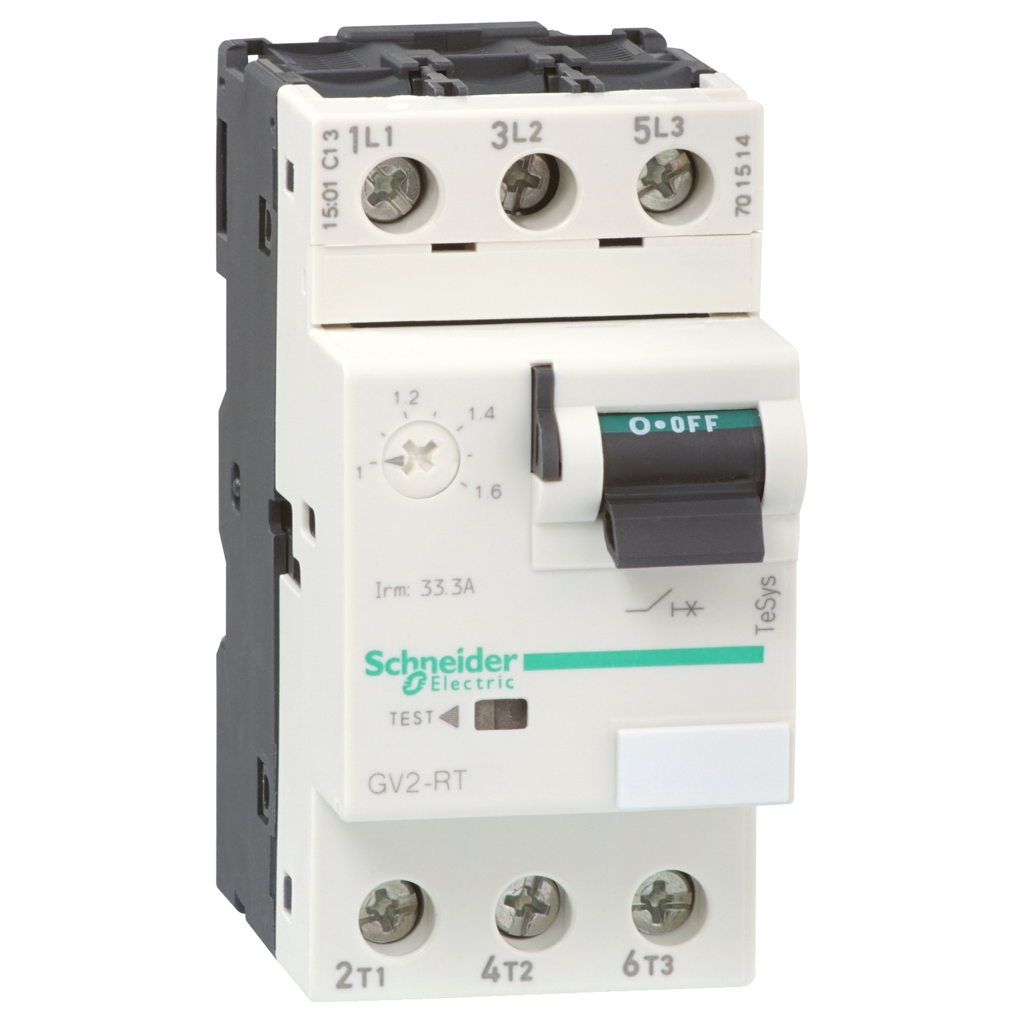

TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for high starting current peak motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, a magnetic tripping level at 20xIn, high breaking

Technical Information

Amperage
1.6 Amp
Applications
TRANSFORMER-MOTOR
Control Type
Toggle
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
1.6 A
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Size
45 MM,78.5 MM,89 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA FLEXIBLE WITH CABLE END
Trip Point
33-33 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2RT,TESYS,TESYS GV2

General Product Info

12-Digit UPC
389110520623
GTiN
03389110520620
Product UPC
78590140898

Dimensions

Depth
3.09 in
Height
3.5 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,EAC,LROS (Lloyds Register Of Shipping),UKCA,UL
Country of Origin
France
Connections Terminals
  • power circuit screw clamp terminal 2 1-6 mm²solid
  • powe
ITH Conventional Free Air Thermal Current
  • 1.6 A IEC 60947-2
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003993_3D-CAD&p_File_name=MCADPD0003993_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003993_3D-CAD&p_File_name=MCADPD0003993_2D-back.dwg
  • https://downlo
Thermal Protection Adjustment Range
  • 1-1.6 A IEC 60947-2
IP Degree Of Protection
  • IP20 IEC 60529
Range Of Product
  • TeSys GV2
  • TeSys Deca
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.024988562296268852
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.5315281159831791
  • 0.5 kg CO2 eq.
Standards
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
Related Products
  • GVAE11
  • GVAN11
  • GVAE1
  • GVAE20
  • GVAD1010
  • GVAD0110
  • GVAN20
  • GVAD1001
  • GV2AF3
  • GV1G09
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 1 kg CO2 eq.
  • 1.215349398124056
Rated Duty
  • uninterrupted IEC 60947-4-1
UI Rated Insulation Voltage
  • 690 V AC 50/60 Hz IEC 60947-2
Electrical Durability
  • 100000 cycles AC-3 415 V In
  • 100000 cycles AC-3e 415 V In
Fixing Mode
  • 35 mm symmetrical DIN rail clipped
  • panel screwed with adaptor plate)
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Fire Resistance
  • 960 °C IEC 60695-2-11
Motor Power KW
  • 0.18-0.18 kW 220/230 V AC 50/60 Hz motor protection high peak current
  • 0.18-0.18 kW 220/230 V AC 50/60 Hz motor pro
Add Ons
  • GVAE11
  • GVAN11
  • GVAE1
  • GVAE20
  • GVAD1010
  • GVAD0110
  • GVAN20
  • GVAD1001
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 40 kg CO2 eq.
  • 40.392
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.06632991538488069
  • 0.1 kg CO2 eq.
Tightening Torque
  • 1.7 N.m screw clamp terminal
Mechanical Robustness
  • shocks 30 Gn for 11 ms
  • vibrations 5 Gn, 5...150 Hz
Network Frequency
  • 50/60 Hz IEC 60947-2
Suitability For Isolation
  • yes IEC 60947-1
Utilisation Category
  • category A IEC 60947-2
  • AC-3 IEC 60947-4-1
  • AC-3e IEC 60947-4-1
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 690 V AC 50/60 Hz IEC 60947-2
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-2
