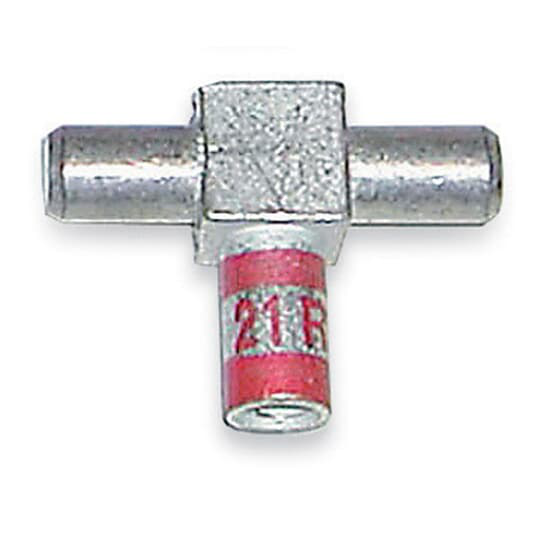

Product image for ABB M2D8M-1 MTR PIG DISC MALE 2LD 8
Image thumbnail 0
Image thumbnail 1
Email

ABB M2D8M-1 MTR PIG DISC MALE 2LD 8

Manufacturer: ABB | Thomas & Betts | Catalog # M2D8M-1 | Cooper Electric Part # 787984
$7,339.54/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
KUBE Male (Two Load) Copper Motor Pigtail Disconnect, Wire Size 8 AWG, Body Size 1, Die Color Red

Technical Information

Conductor Size
8 AWG
Contact Material
Copper
Material
Copper
Standard
UL E9809
Type
Two Load
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210832043
Color
Red
Finish
Tin Plated
GTiN
00786210832043
Product UPC
78621083204
Features
  • Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
  • Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
Certifications
  • UL
  • CSA
Notes
  • Always use the same body size when selecting male and female disconnects. Use insulating boots matching the disconnect body size. To protect the connection from moisture and dirt, use sealing compound catalog number MDBOOT-SEAL.
