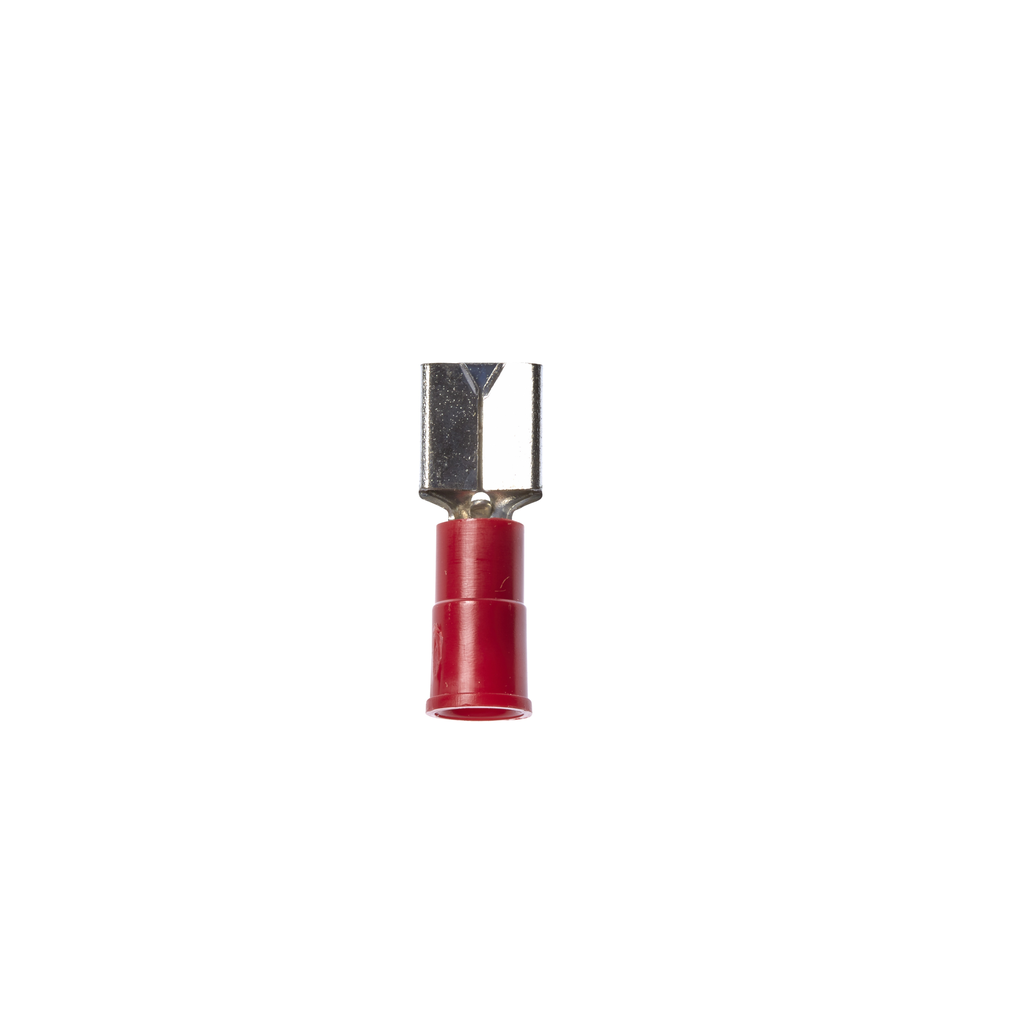

Product image for 3M 7100165292 3M™ Scotchlok™ Vinyl
Email

3M 7100165292 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100165292 | Cooper Electric Part # 787627
$1.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Interlocking Barrel
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589359
GTiN
00051128589359
Product UPC
05112858935

Dimensions

Length
0.83 Inch
Overall Length
0.83 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
