ABB RAD1877F NYL FLLY INS 90DEG FEM

Manufacturer: ABB | Thomas & Betts | Catalog # RAD1877F | Cooper Electric Part # 786279
$357.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

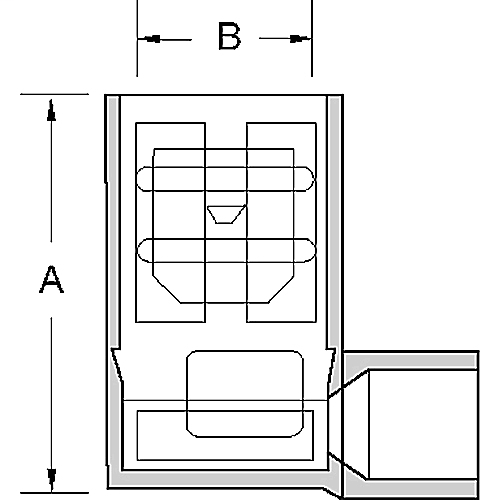

Nylon Fully Insulated 90 Degree Flag Female Disconnect, Length .74 Inches, Width .59 Inches, Maximum Insulation .150, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
22-18 AWG
Insulation Material
Nylon/Polyamide
Insulation Type
Fully Insulated Nylon
Material
Brass
Standard
UL E66716
Tab Size
0.187 in W x 0.2 in T
Temperature Rating
105 degrees C
Type
Fully Insulated, 90 Flag
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210379777
Color
Red
Finish
Tin Plated
GTiN
05414363158097
Product UPC
78621037977

Dimensions

Length
0.74 Inch
Width
0.59 in
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Notes
  • Bulk catalog numbers can be put on Mylar Tape for reel-fed applications (i.e. 12050 tool and application dies). Please add the suffix M for Mylar tape.
