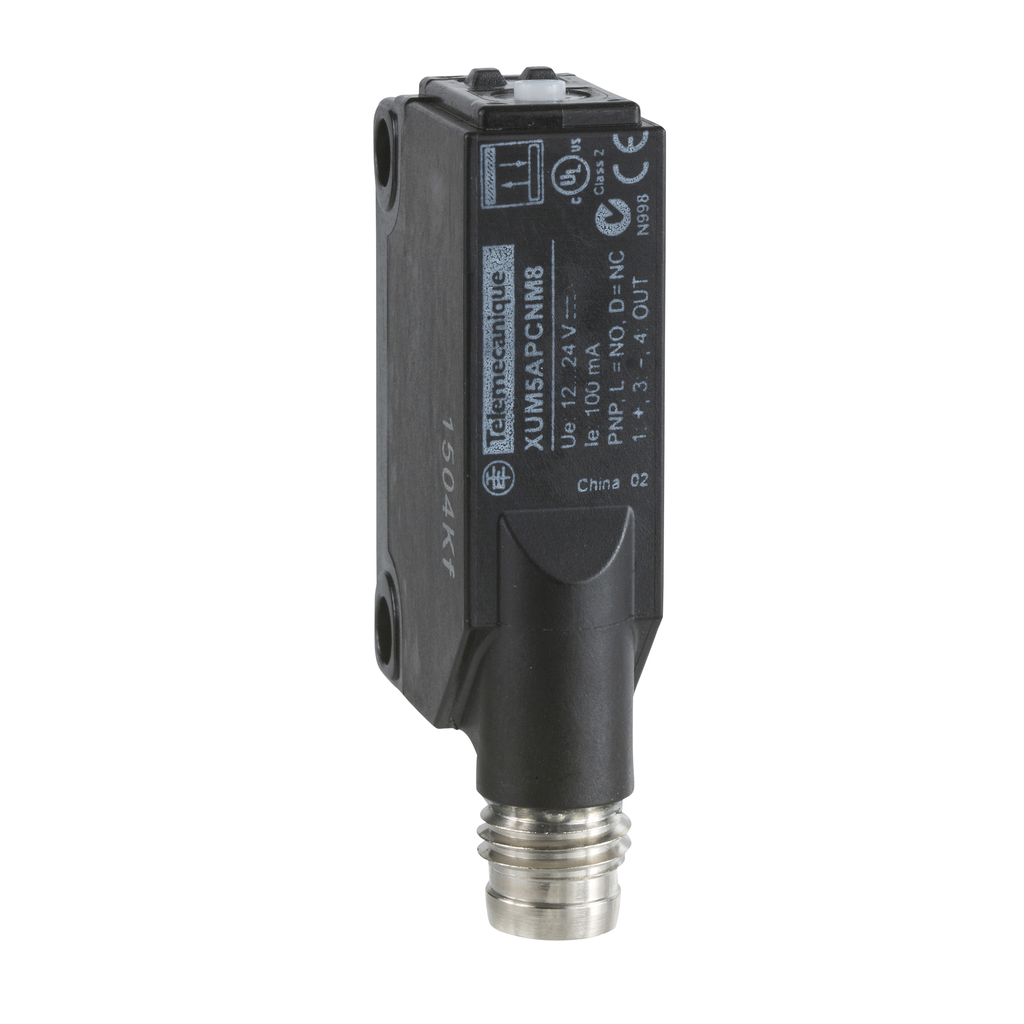

Product image for SQD XUM5APCNM8 Sensor, Photo
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XUM5APCNM8 Sensor, Photo

Manufacturer: Square-D / Schneider | Catalog # XUM5APCNM8 | Cooper Electric Part # 785129
$64.80/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This miniature design single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Operating Cycles
<= 500 HZ
Operating Temperature
-25-55 Adegrees C
Output
1 NO OR 1 NC PROGRAMMABLE,PNP,DISCRETE,SOLID STATE
Response Time
.5m s
Sensing Range
1-1 M DIFFUSE,> 0.98...3.28 FT (> 0.3...1 M)
Size
12 MM,27 MM,38 MM
TC Connection
1 MALE CONNECTOR M8, 4 PINS
Type
DIFFUSE,GENERAL PURPOSE SINGLE MODE,MINIATURE,PHOTO-ELECTRIC SENSOR
Voltage
12...24 Volt DC

Manufacturer Information

Brand
Osisense
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901934837
GTiN
03389119034999
Product UPC
78590193483
Weight
0.02 lb

Dimensions

Depth
1.06 Inch
Height
1-1/2 Inch
Warranty Length
18 mth
Width
0.47 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Thailand
