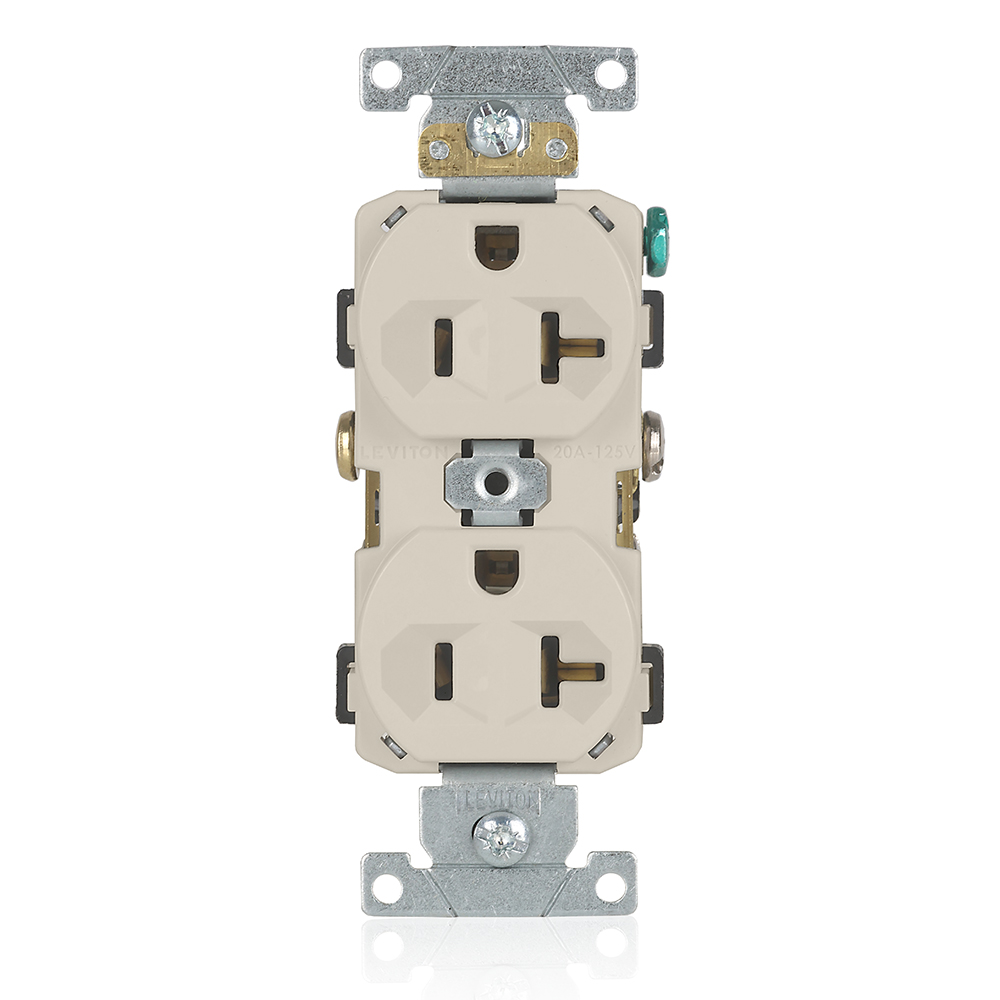

Product image for LEV BR20-T REC DUP LA BACK/SD-WIRE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

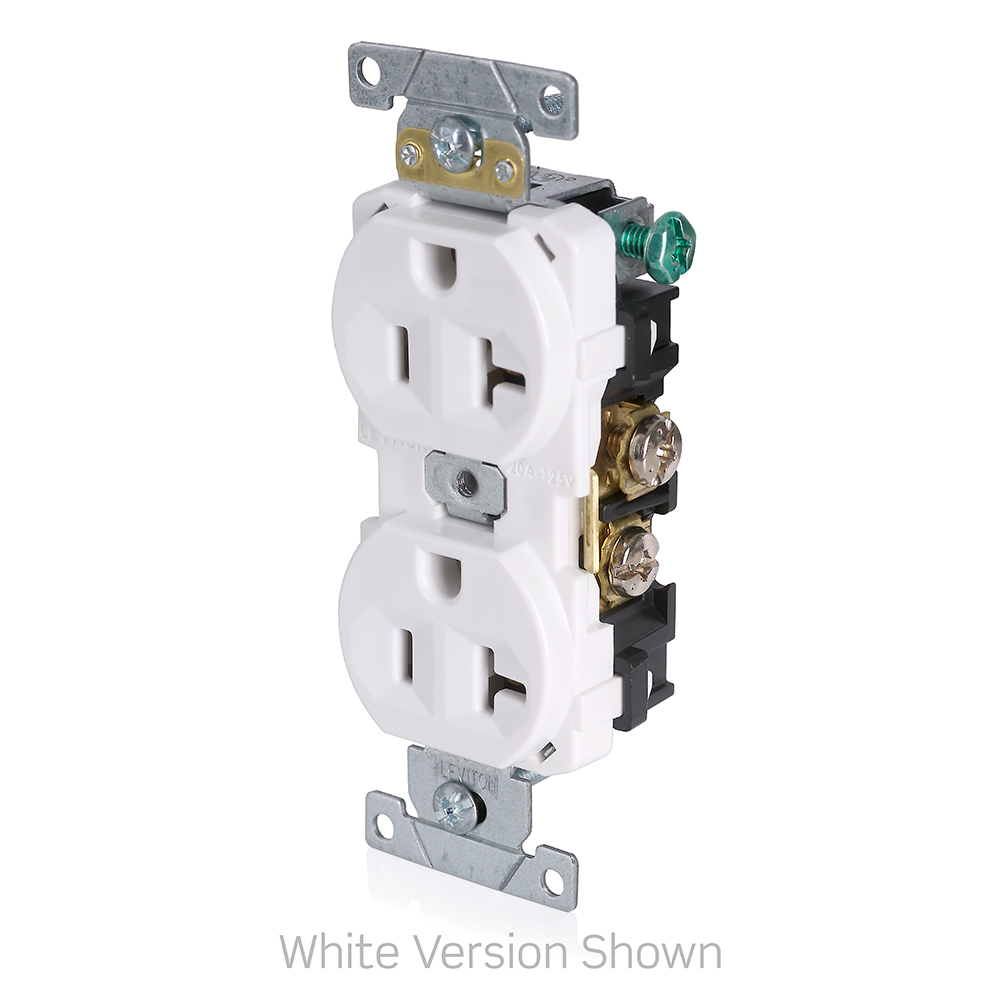

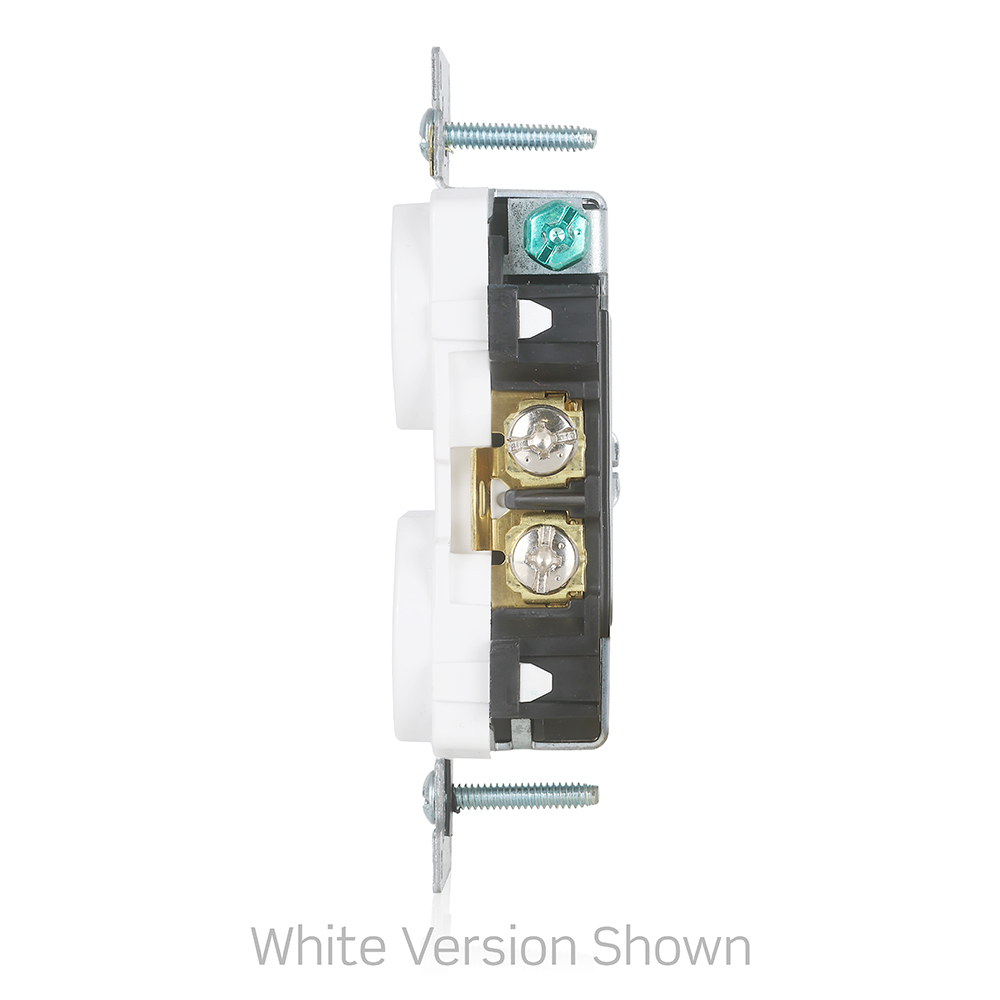

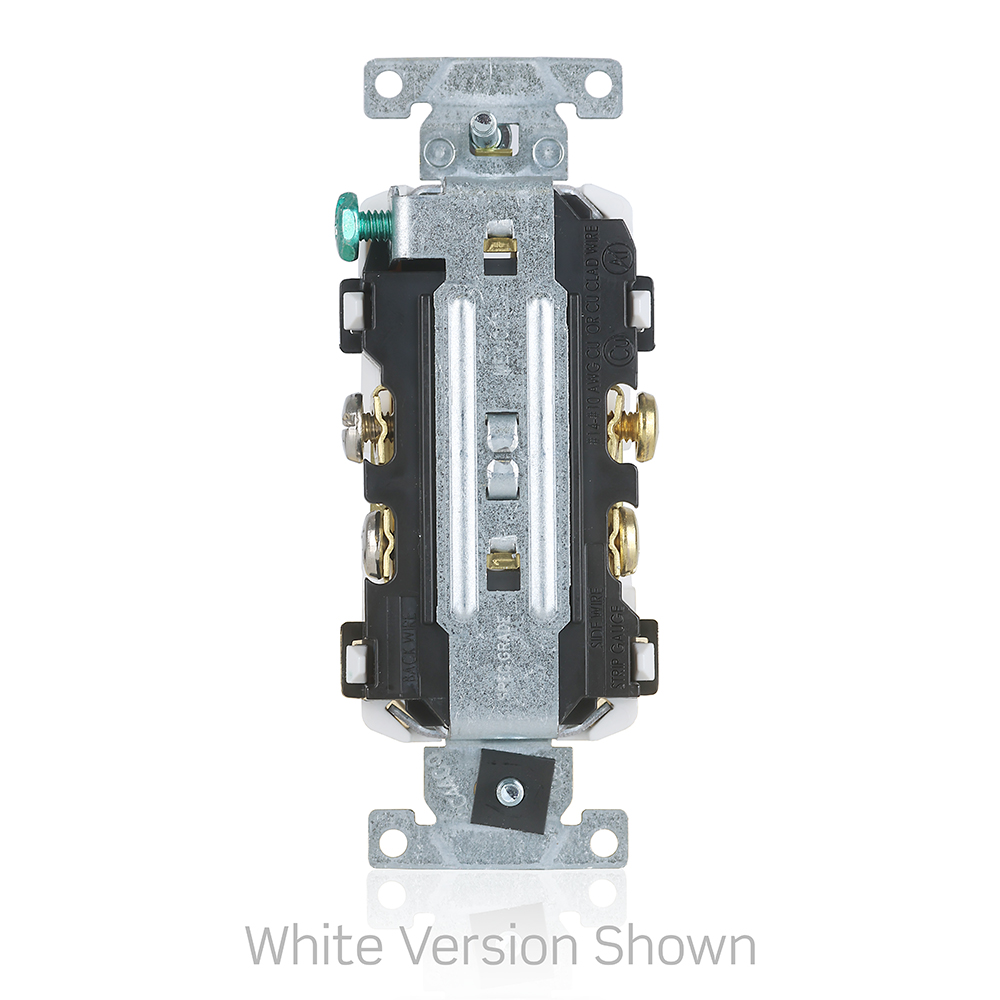

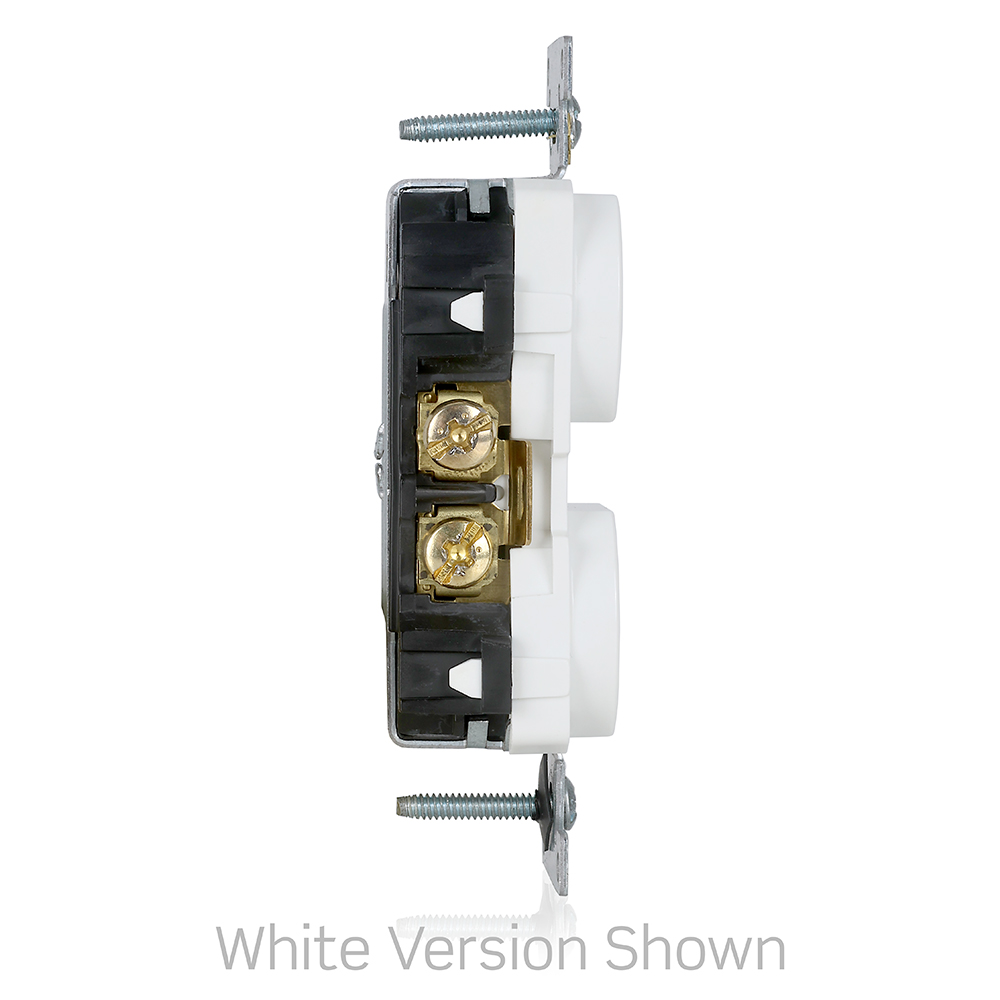

LEV BR20-T REC DUP LA BACK/SD-WIRE

Manufacturer: Leviton Mfg Co | Catalog # BR20-T | Cooper Electric Part # 784941
$9.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Light Almond

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Polypropylene
Conductor Size
14-10 AWG
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477370353
Color
Light Almond
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477370353
Product UPC
07847737035

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-20R
