LEV IPSD6-1LZ WH/IV/LA OCC DETECT D

Manufacturer: Leviton Mfg Co | Catalog # IPSD6-1LZ | Cooper Electric Part # 783914
$94.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

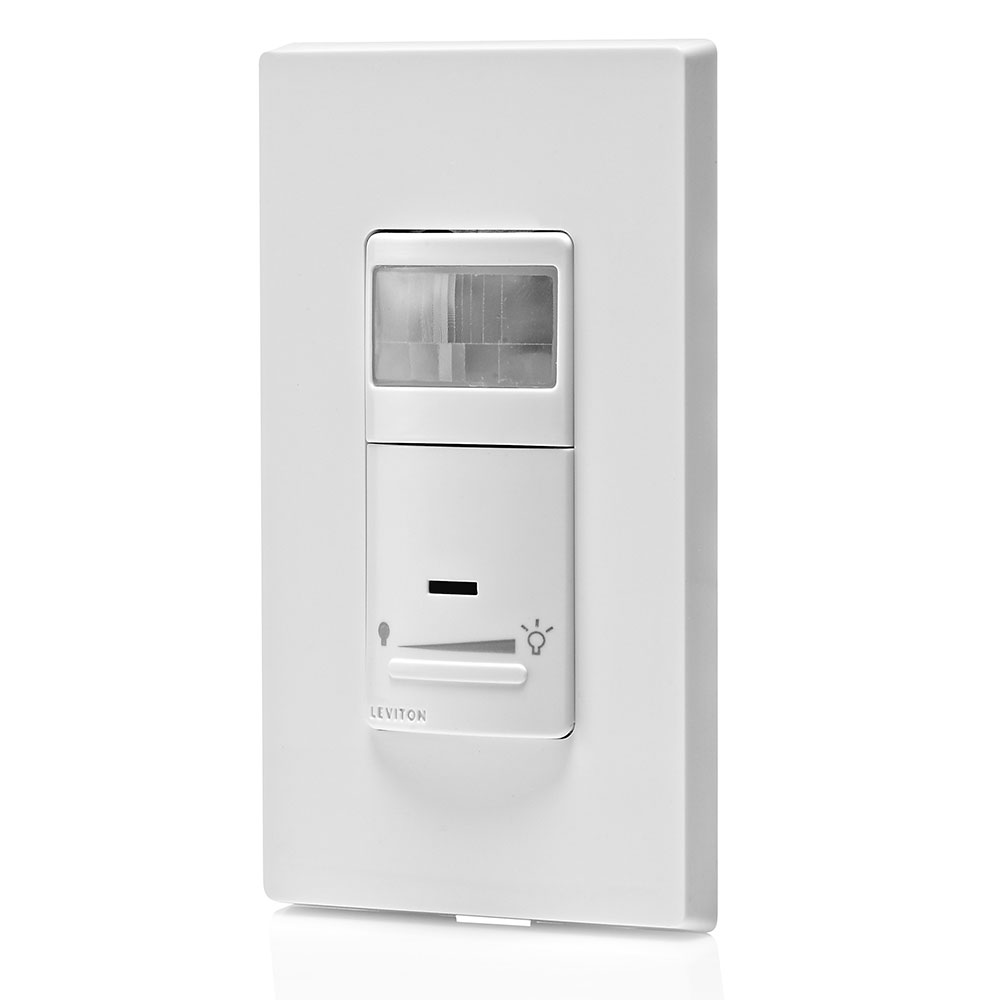

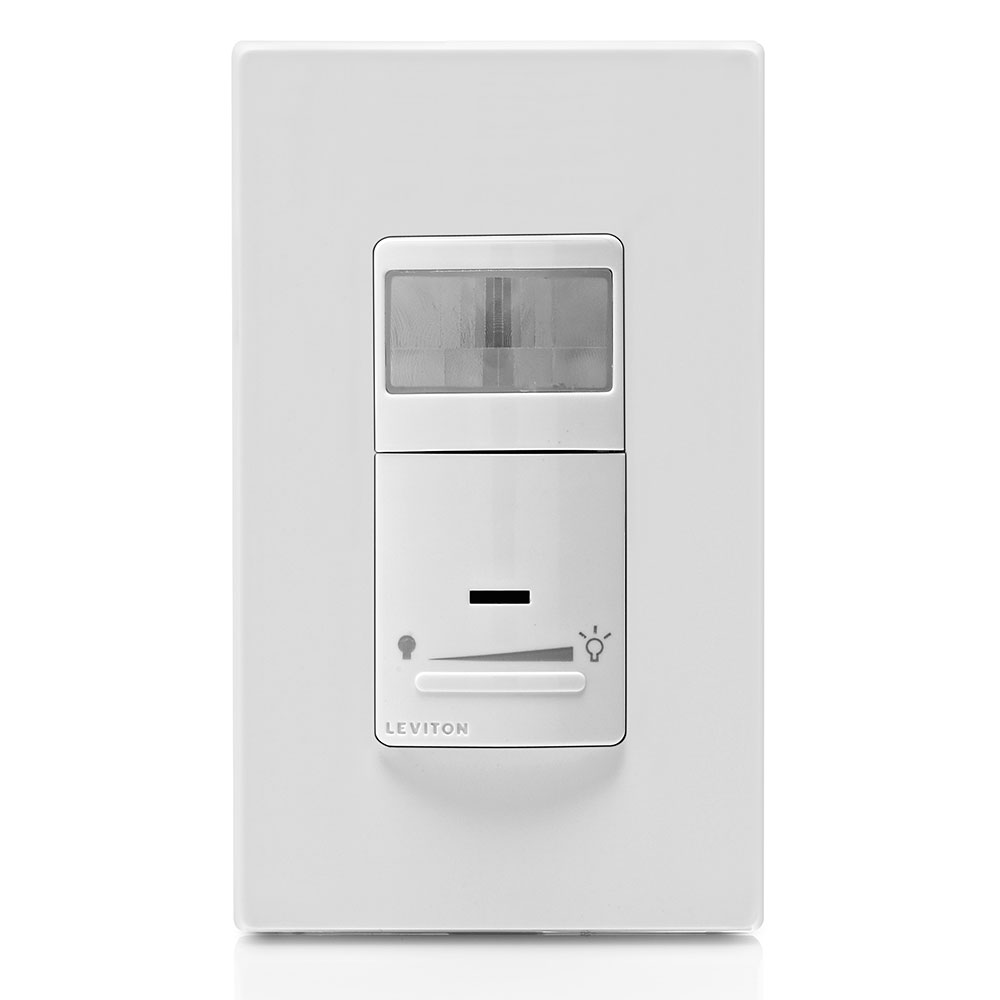

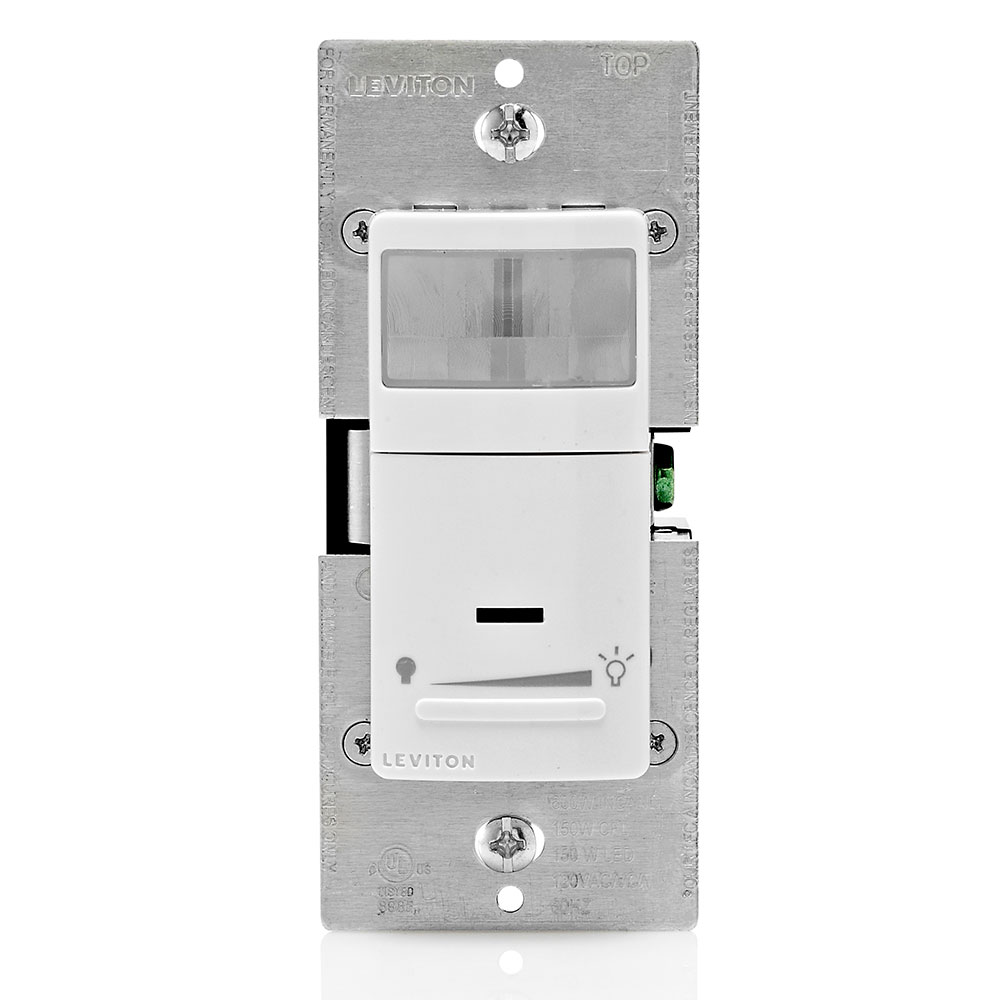

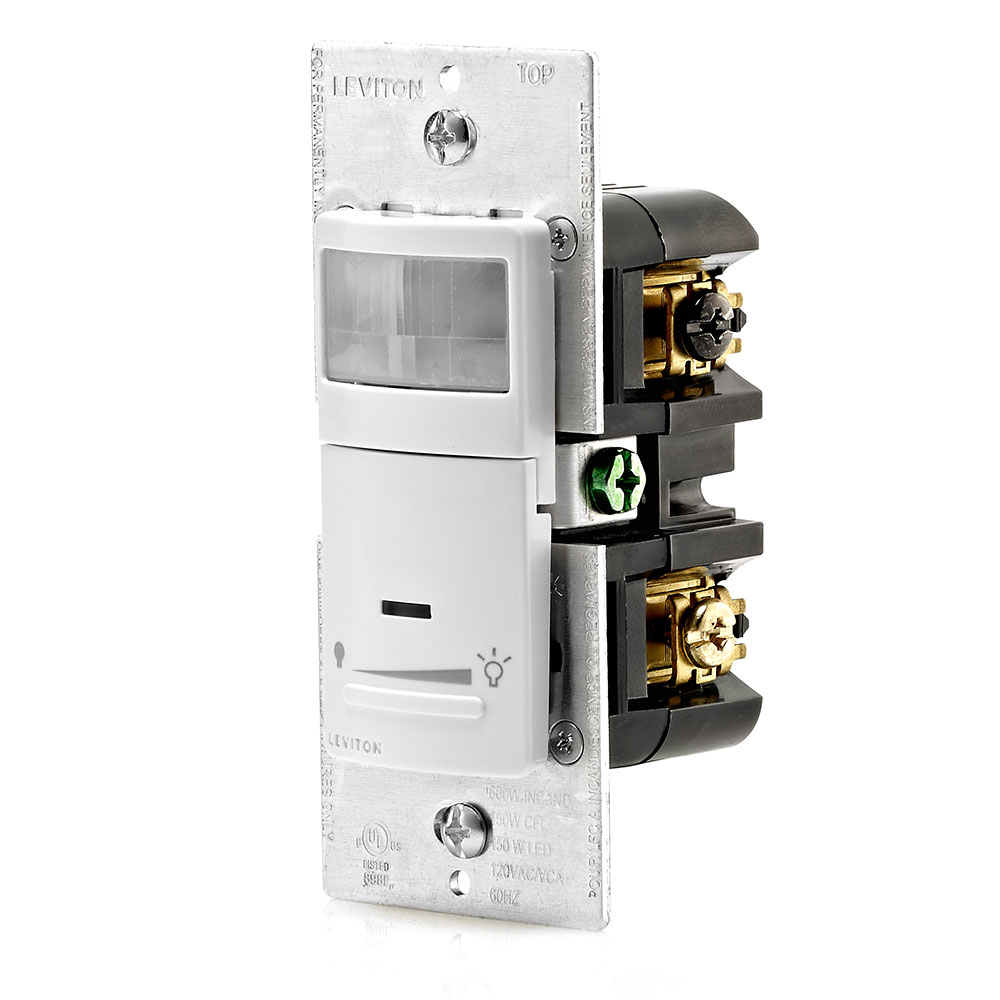

Occupancy/Motion detector and dimmer, 180 Degree PIR Wall Box Sensor, Single Pole & 3-Way, 600 Watt Incandescent, 150W Dimmable LED & CFL. White assembled on the device, ivory and light almond color change kit included. Wallplate/Faceplate Not Included.

Technical Information

Applications
For Commercial Use, Most Dimmable LED, Dimmable CFL and Incandescent Loads
Coverage
900 sq-ft
Frequency
60 Hz
Grade
Residential
LED Color
Green
Mounting Type
Wall
Number of Poles
1 Pole
Response Time
30 min
Sensor Type
Occupancy
Size
4.13 H x 1.75 W x 1.22 D IN
Standard
CA Title 20 Code Compliance,UL Listed
Switch Type
3-Way,Single-Pole
Temperature Rating
0 degrees C to 40 degrees C
Torque
14 lb-in
Type
Dimmer Wall Switch, 3 Way
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477584309
Color
White
Environmental Conditions
Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
GTiN
00078477584309
Product UPC
07847758430

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Universal Light Control & Dimmer - Easily Switches Incandescent and Dimmable CFL, LED bulbs
  • Automatic-ON/Automatic OFF operation for seamless energy management
  • Single Pole or 3 Way when used with a standard 3-way switch
  • Low-Profile design eliminates an obtrusive \"scanning device\" look. Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Segmented lens provides optimum sensitivity and performance. It is designed with an extensive \"minor motion\" area where even slight body movements will be detected
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Fits in standard wallbox and replaces single-pole wall switch
  • Neutral wire not required, suitable for retrofit and new construction applications
  • Can be used to comply with 2016 California Title 24, Part 6 Vacancy Control Device Requirements
  • Five-Year Limited warranty
