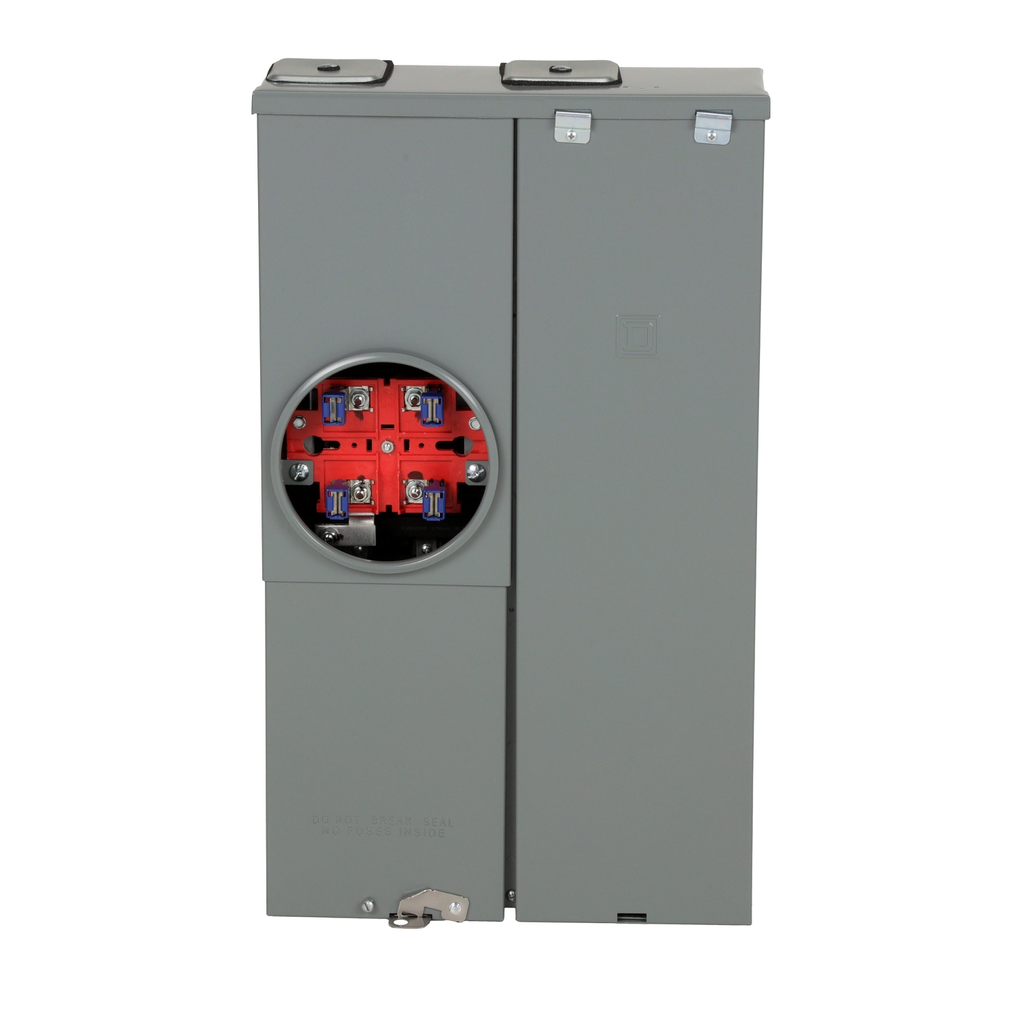

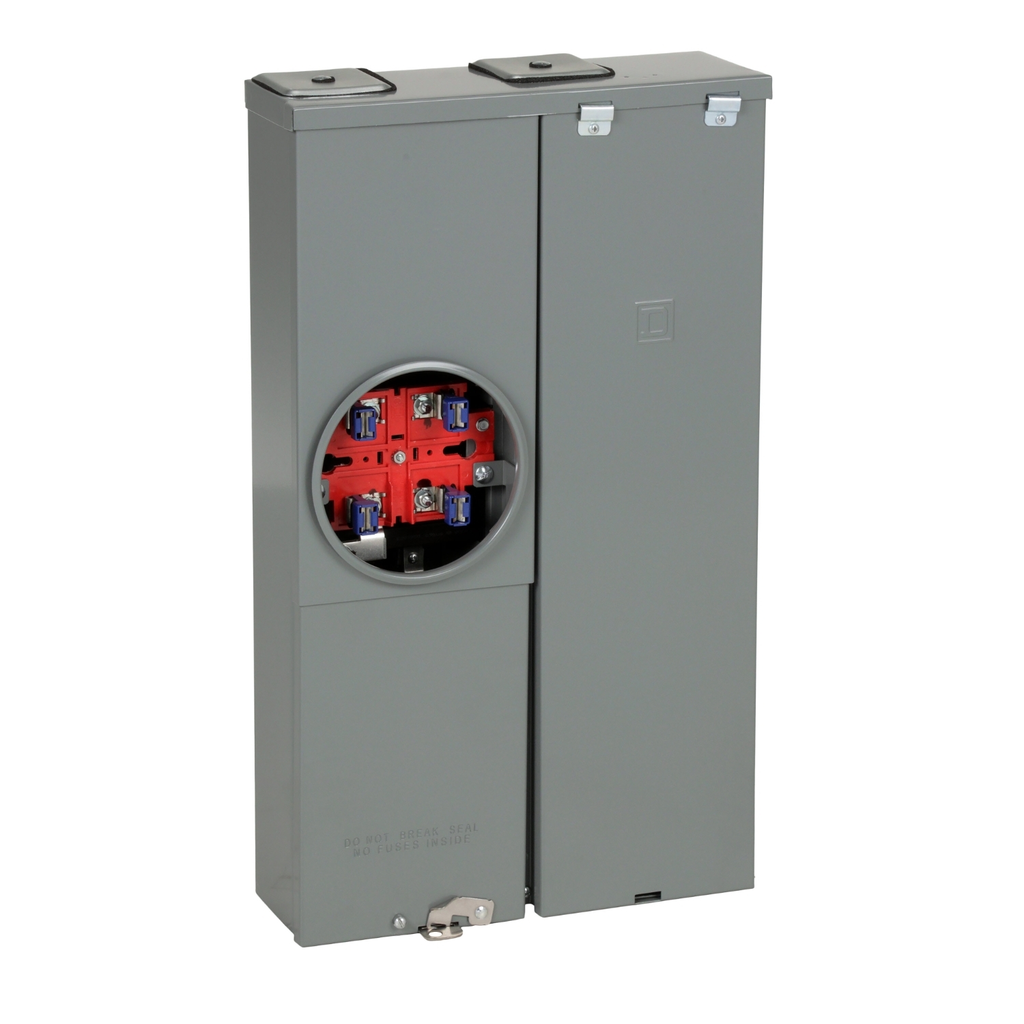

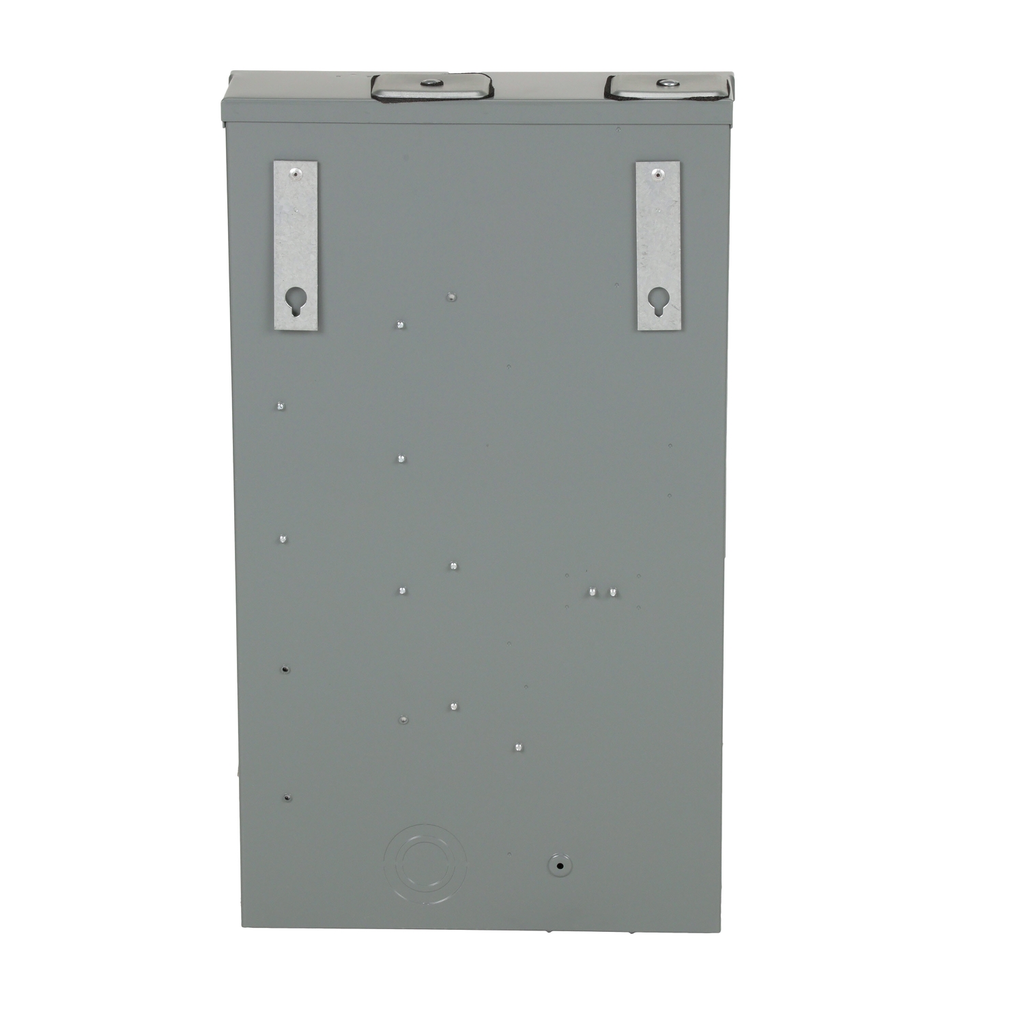

Square D SC8L125S Meter Main 125A Ring Type OH/UG Surface

Manufacturer: Square-D / Schneider | Catalog # SC8L125S | Cooper Electric Part # 783692
$846.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet
The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC8L125S. Enclosure mounting style performed as surface mount only. This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass.

Technical Information

Amperage
125 Amp
Cable Entry
OH-UG
Conductor Size
6-2/0 AWG
Line Rated Current
125 A
Mounting Type
Surface
Number of Circuits
0
Number of Phases
1 Phase
Number of Spaces
8
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Size
14.77 IN,26.5 IN
Type
METER MAINS,RINGED
Wire Size
AWG 6...AWG 2/0 aluminium/copper)line side;AWG 6...AWG 2/0 aluminium/copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901308805
GTiN
00785901308805
Product UPC
78590130880

Dimensions

Depth
5.2 Inch
Height
26-1/2 Inch
Warranty Length
18 mth
Width
14.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL E-6294
Country of Origin
Mexico
Features
  • QO meter mains support standard utility meters and a main disconnect breakers
  • This single compact solution provides a time and space saving solution for contractors and installers
  • Suitable for use as service entrance equipment
  • Product conforms to the electrical characteristics per UL and ANSL standards
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • 5J
  • HOMFP
  • A125
