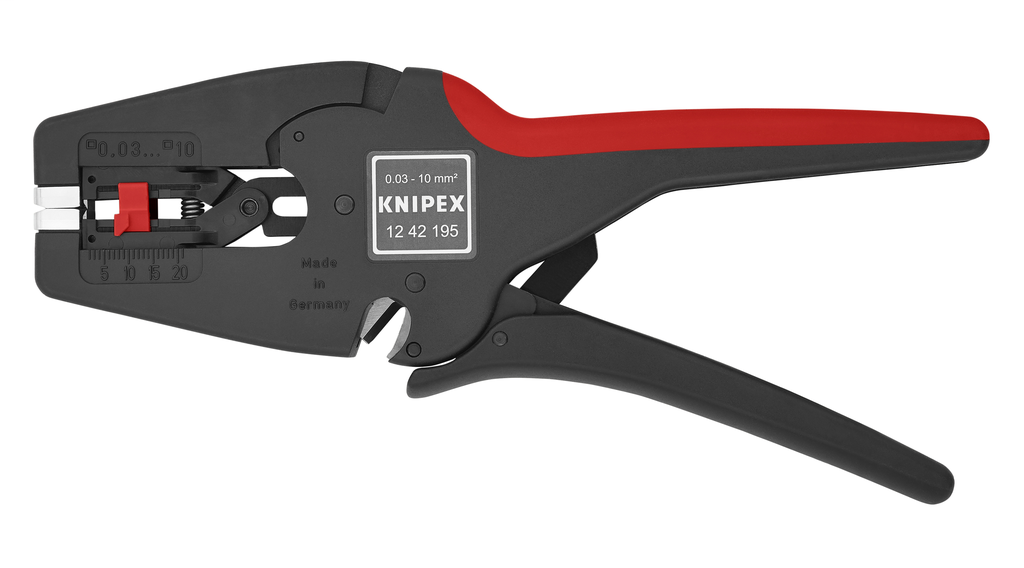

KNIPEX 12-42-195 7-3/4 UNIV INSL STRPR

Manufacturer: Knipex Tool | Catalog # 12 42 195 | Cooper Electric Part # 782010
$157.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The incision depth of the stripping blade adjusts automatically to the diameter of the wire. No manual adjustment required. 7 to 32 AWG. Steel clamping jaws with integral cutting edges hold cable and prevent slipping. Suitable for 7 to 32 AWG. Replacement blade block part number 12 49 21. Replacement length stop part number 12 49 23.

Technical Information

Conductor Size
32-7 AWG
Wire Size
7-32 AWG

Manufacturer Information

Brand
Knipex

General Product Info

12-Digit UPC
843221001520
GTiN
00843221001520
Product UPC
84322100152
Weight
136 g

Dimensions

Height
27 mm
Length
195 mm
Width
120 mm
Features
  • Automatic adjustment to all single-, multi and fine-stranded conductors with standard PVC insulation. Range of 32 AWG (0.03 mm²) to 8 AWG (10.0 mm²)
  • Universal blade geometry tough and robust
  • Ideal grip design with excellent control
  • No manual fine adjustment necessary
  • No damage to the conductors
  • Steel clamping jaws with integrated cutting edges hold the cable and prevent slipping
  • Includes recessed wire cutter for Cu and Al conductors, stranded up to 8 AWG and single wire up to 10 AWG
  • Smooth running mechanics and very low weight
  • Replacement blade block part number 12 49 21
  • Replacement length stop part number 12 49 23
  • NOT FOR THHN CABLE
  • Handle with soft-plastic zone for a steady grip
  • Body is made of lightweight fiberglass-reinforced plastic
  • Blades are made of special tool steel, oil-hardened
