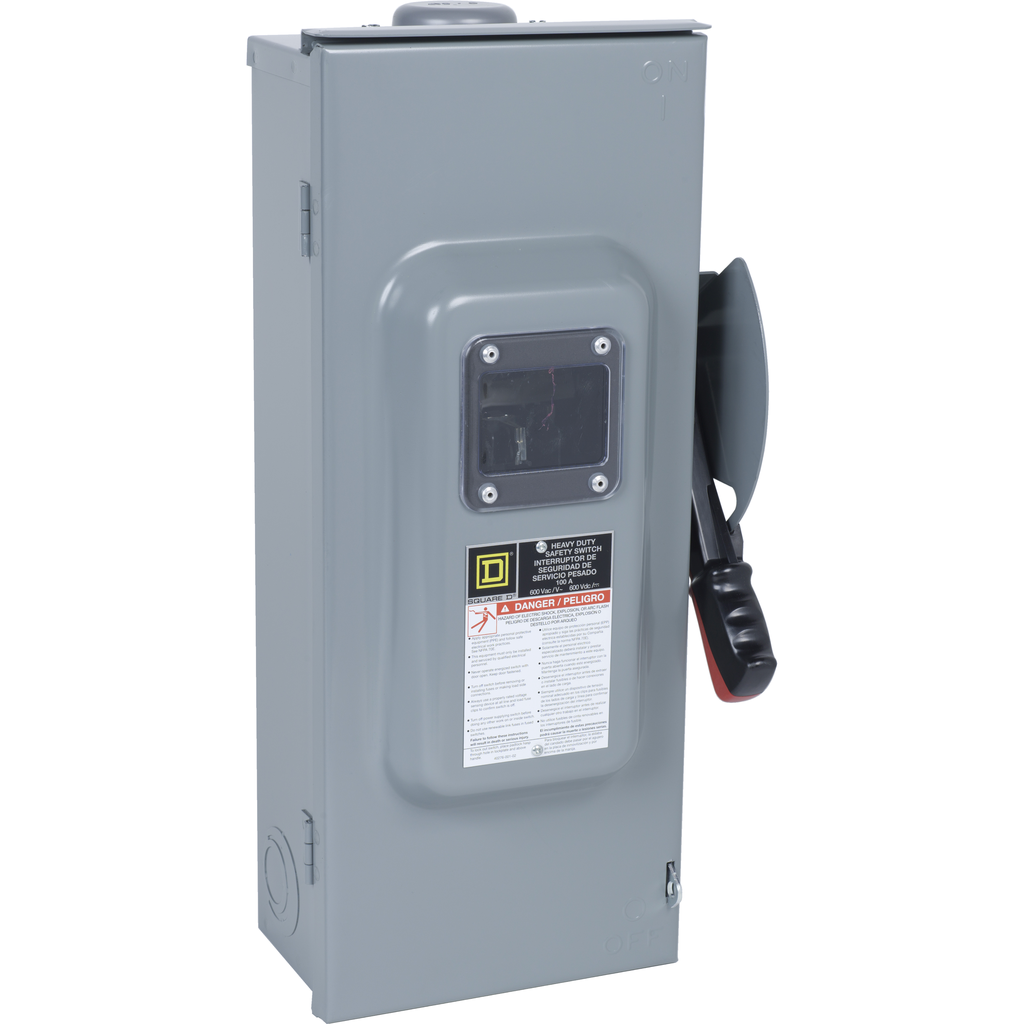

Product image for Square D H363RBVW 600 VAC 100 Amp 3-Pole Class H/J/R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H363RBVW 600 VAC 100 Amp 3-Pole Class H/J/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H363RBVW | Cooper Electric Part # 781639
$1,764.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
Safety switch, heavy duty, fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 3R, bolt-on hub, viewing window

Technical Information

Action
SINGLE THROW
Amperage
100 Amp
Applications
HEAVY DUTY
Conductor Size
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Current
100 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
3R
Enclosure Material
Stainless Steel
Enclosure Rating
3R
Line Rated Current
100 A
Material
Steel
Mounting Type
Surface
NEMA Size
3R
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
10.25 IN,21.25 IN,6.38 IN
TC Connection
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901265412
Environmental Conditions
RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
GTiN
00785901265412
Product UPC
78590126541

Dimensions

Depth
6.38 Inch
Height
21-1/4 Inch
Warranty Length
18 mth
Width
10.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
