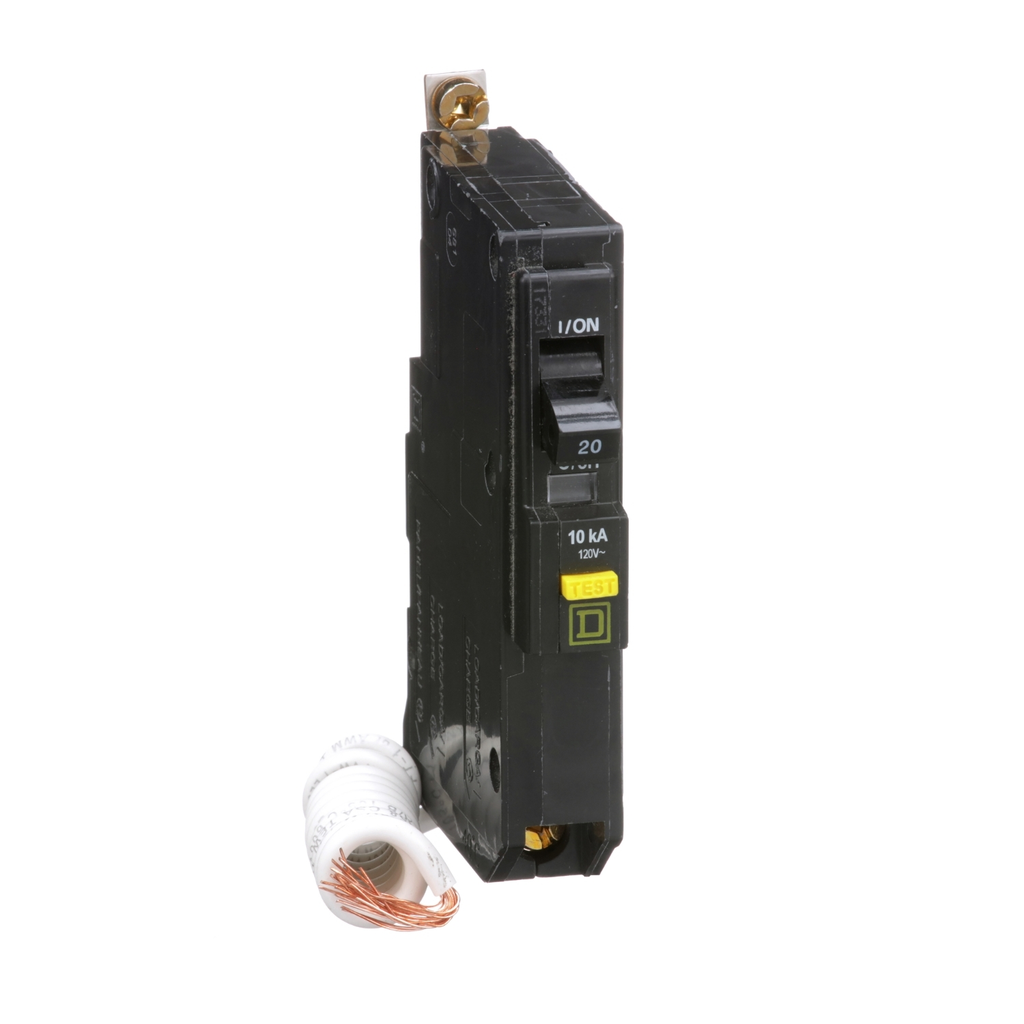

Square D QOB120GFI Circuit breaker w/GFI 20A 120V 1Ph , Bolt-On

Manufacturer: Square-D / Schneider | Catalog # QOB120GFI | Cooper Electric Part # 78145
$248.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
170 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB120GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed.

Technical Information

Amperage
20 Amp
Applications
Not rated
Circuit Breaker Type
Ground Fault Protecting Class A 6 MA
Conductor Size
14-8 AWG
Current
20 Amp
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Bolt-on
Net Weight
0.254 kg
Number of Poles
1 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper or aluminium NULL

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901368717
GTiN
00785901368717
Product UPC
78590136871
Weight
0.254 kg

Dimensions

Depth
2.91 in
Height
4.13 in
Length
2.91 Inch
Warranty Length
18 mth
Width
0.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
CSA,UL Listed
Country of Origin
Mexico
Circuit Breaker Type
  • ground fault protecting class A 6 mA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Carbon Footprint Of The Installation Phase A5
  • 0.0015773869
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0467700787
Related Products
  • NQ442L2C
  • NQ430L2C
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 1.7517781675
Accessories
  • QO1HT
  • QO1PAF
  • QO1PJ15
  • QOHPL
  • QO1LO
  • QO1PA
  • QO70AN
  • QOFSLALB12
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 37 kg CO2 eq.
  • 37.375
Accessory Products
  • QO1HT
  • QO1PAF
  • QO1PJ15
  • QOHPL
  • QO1LO
  • QO1PA
  • QO70AN
  • QOFSLALB12
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.0578064462
  • 0.1 kg CO2 eq.
Tightening Torque
  • 4-4 N.m
  • 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
AWG Gauge
  • AWG 14...AWG 8 copper or aluminium
UE Rated Operational Voltage
  • 120 V AC
