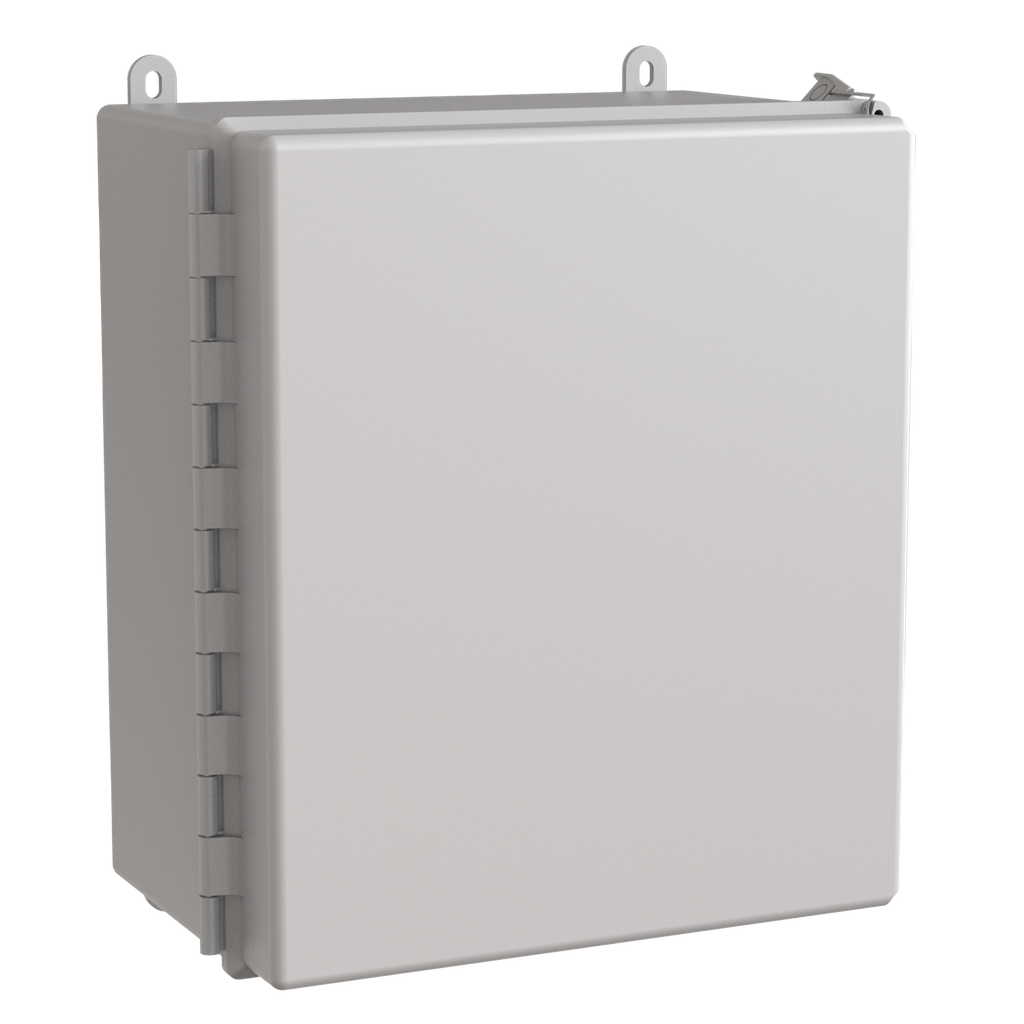

Hoffman A14128CHQRFG Continuous Hinge QR Cover Enclosure 4X, 14" x 12" x 8", Light Gray, Fiberglass

Manufacturer: Hoffman | Catalog # A14128CHQRFG | Cooper Electric Part # 78036
$353.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Continuous Hinge, Type 4X, 14.00x12.00x8.00, Fiberglass, QR Cover

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Color Coding
RAL 7035
Cover Type
Continuous Hinged with Quick-Release Latches, Screws, Hinge Pin
IP Rating
66
Material
Fiberglass
Mounting Type
Wall
Size
14.00x12.00x8.00 in
Type
Two Lock, Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510298005
Color
7035 Light Gray
GTiN
00783510298005
Product UPC
78351029800
Weight
9 lb

Dimensions

Depth
203 mm
Height
356 mm
Length
16-1/2 Inch
Thickness
4 mm
Width
305 mm
Features
  • Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures water-tight and dust-tight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Padlock provisions included
  • Material is halogen-free
