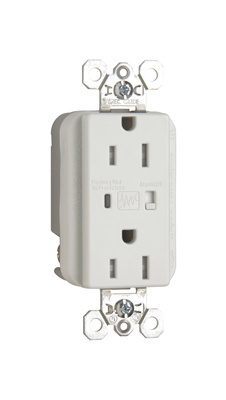

Pass & Seymour TR5262-Wsp Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle, White

Manufacturer: Pass & Seymour / Legrand | Catalog # TR5262WSP | Cooper Electric Part # 777745
$57.25/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
18 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual Product Brochure
Tamper-Resistant Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, White.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
For Residential, Commercial Use
Connection Type
Back Wire,Side Wire
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Material
Thermoplastic
Mounting Type
Box
NEMA
5-15R
Number of Phases
1 Phase
Operating Temperature
-20degrees C to 55degrees C (-4 to 131degrees F
Size
1-3/4 in W x 0.94 in D x 3.82 in H
TC Connection
Side & Back Wire
Temperature Rating
-20 degrees C to 55 degrees C
Type
Tamper-Resistant, Extra Heavy Duty
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007019261
Class
IG
Color
White
GTiN
00785007019261
Product UPC
78500701926
UNSPSC
39121406

Dimensions

Depth
1.4 Inch
Height
2-3/4 Inch
Width
1.7 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
