HWDK DSL320AL SWITCH, DECO, 3W, 20A

Manufacturer: Hubbell Wiring Device | Catalog # DSL320AL | Cooper Electric Part # 777666
$31.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual

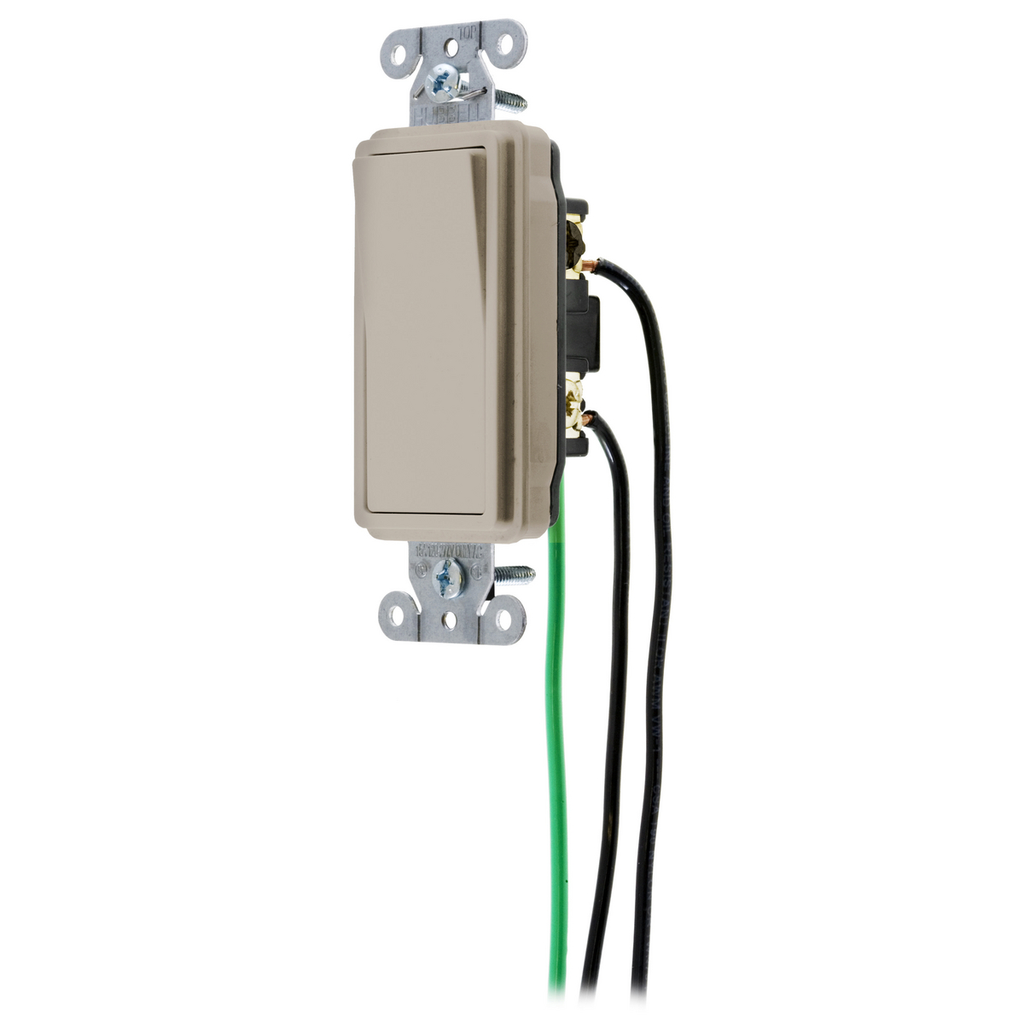

Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Almond

Technical Information

Actuator
Rocker
Amperage
20 Amp
Applications
Pre-Wired Commercial Heavy Duty
Conductor Size
12 AWG
Contact Configuration
2 Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Indicator
None
Material
Polycarbonate
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
Standard Sized
Standard
UL
Style
Three Way
TC Connection
Pre-Wired Leads
Type
General Purpose Switches
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585187006
Color
Almond
GTiN
00783585187006
Product Series
General Purpose
Product UPC
78358518700

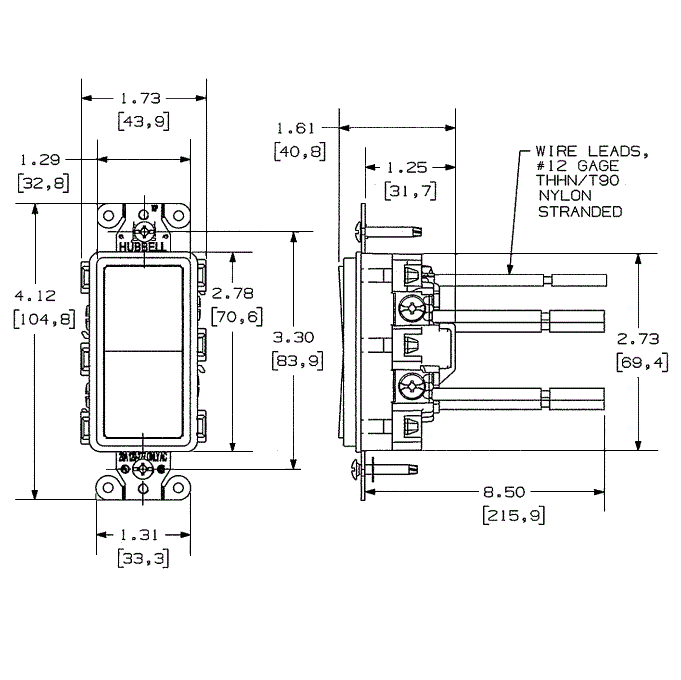

Dimensions

Height
1.61 Inch
Length
4.12 Inch
Width
1.73 in

Certifications and Compliance

Country of Origin
USA
Features
  • Labor Saving
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
