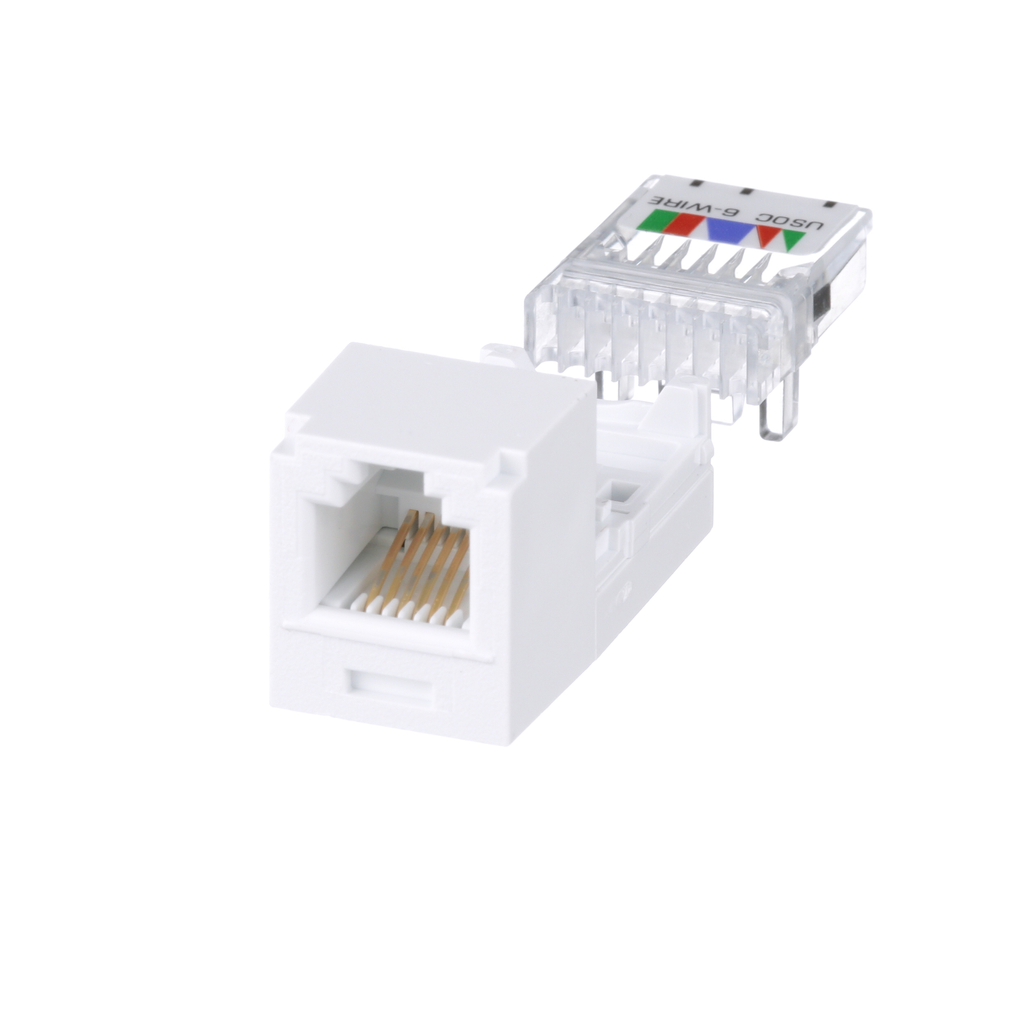

Panduit CJ66UWHY UTP RJ45 Cat 3 Leadframe Jack Module USOC, White

Manufacturer: Panduit Corp | Catalog # CJ66UWHY | Cooper Electric Part # 777076
$11.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing
The Mini-Com® Cat 3 UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is White.

Technical Information

Applications
For Consumer Electronics, Communications and Networking, Computers and Computer Peripherals, Industrial
Cable Entry
USOC 6-wire
Cable Size
24-22 AWG
Cable Type
Category 3
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Module Type
Mini Com
Mounting Type
Surface/Patch Panel/Faceplate
Number of Positions
6
Performance Level
Category 3/Class C
Temperature Rating
14 - 149 degrees F
Type
Unshielded, 1-Port, 6-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, Mini-Jack™

General Product Info

12-Digit UPC
074983035304
Color
White
GTiN
00074983035304
Product UPC
07498303530
UNSPSC
43223301
Used With
USOC 6-Wire

Dimensions

Depth
1.37 Inch
Height
0.72 Inch
Overall Length
1.37 in
Width
0.61 in

Certifications and Compliance

ARRA Compliant
No
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
China
Hazmat Flag
No
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
