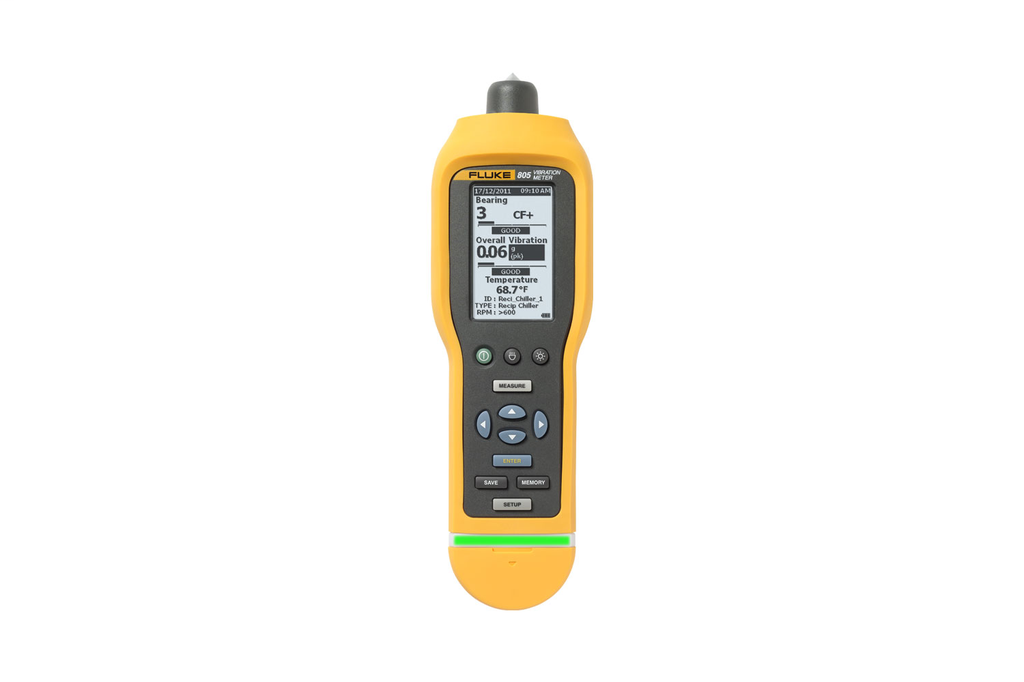

Fluke FLUKE-805 80000 Hz 50 Degrees C Vibration Meter

Manufacturer: Fluke | Catalog # FLUKE-805 | Cooper Electric Part # 775728
$2,214.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

Technical Information

Accuracy
2 degrees C
Battery Type
AA
Operating Temperature
-20 To 50 degrees C
Storage Temperature
-22 To 176 degrees F

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969610698
Product UPC
09596961069
Weight
0.89 lb
Key Features
  • Reliable, repeatable, accurate device for checking bearings and overall vibration
  • Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
  • Provides consistent data quality at both low and high frequency ranges
  • Offers four-level severity scale to assess urgency of problems and bearing condition
Product Overview
  • The Reliable, Repeatable, Accurate Way to Check Bearings and Overall Vibration
  • Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.
  • What Makes the 805 the Best Choice?
Other Useful Features
  • A meter not a pen that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture
  • A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings
  • A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable)
  • Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types
  • Straight-forward user interface that minimizes the user inputs to RPM range and equipment type
  • Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
  • Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
  • Compares vibration levels with ISO-10816 severity scales
  • Allows you to view trending in Microsoft® Excel using pre-built templates
  • Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
  • Measures temperature with Spot IR Sensor to increase diagnostic capabilities
  • Holds and saves up to 3,500 measurements in on-board memory
  • Provides external accelerometer support for hard to reach locations
  • Allows you to export data via USB
  • Provides audio output for listening to bearing tones directly
  • Features built-in flashlight for viewing measurement locations in dark areas
  • Provides large high-resolution display for easy navigation and viewing

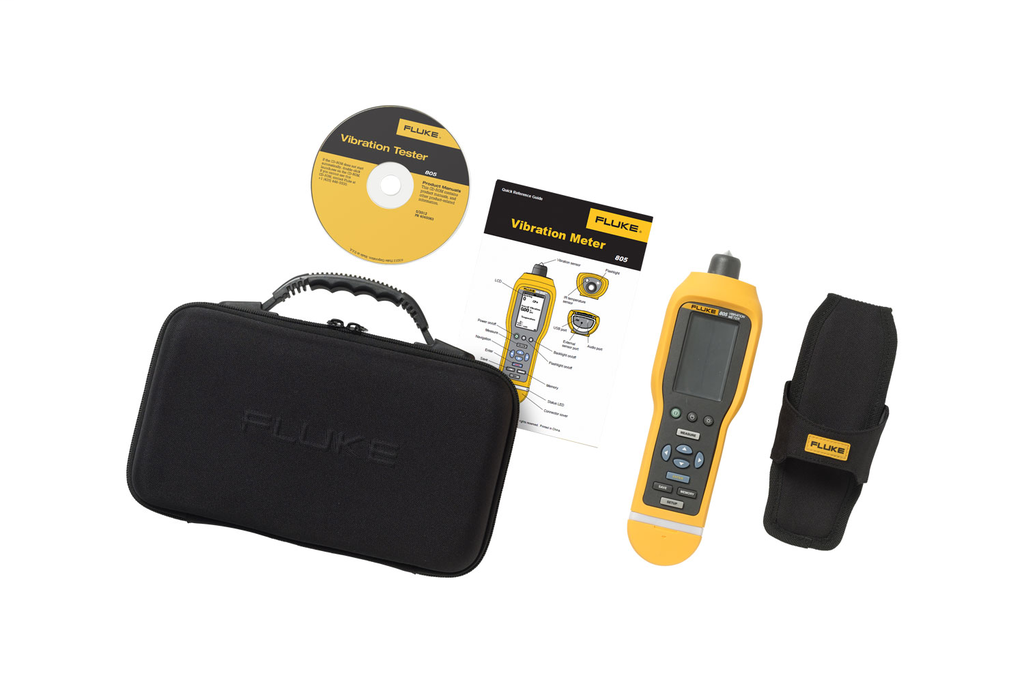

Includes
  • USB cable
  • Storage case
  • Belt holster
  • Quick reference guide
  • CD-ROM (includes MS Excel template and documentation)
  • Two (2) AA batteries
Additional Features
  • Infrared Thermometer (Temperature Measurement)
  • Fluke supports but does not provide external sensors
