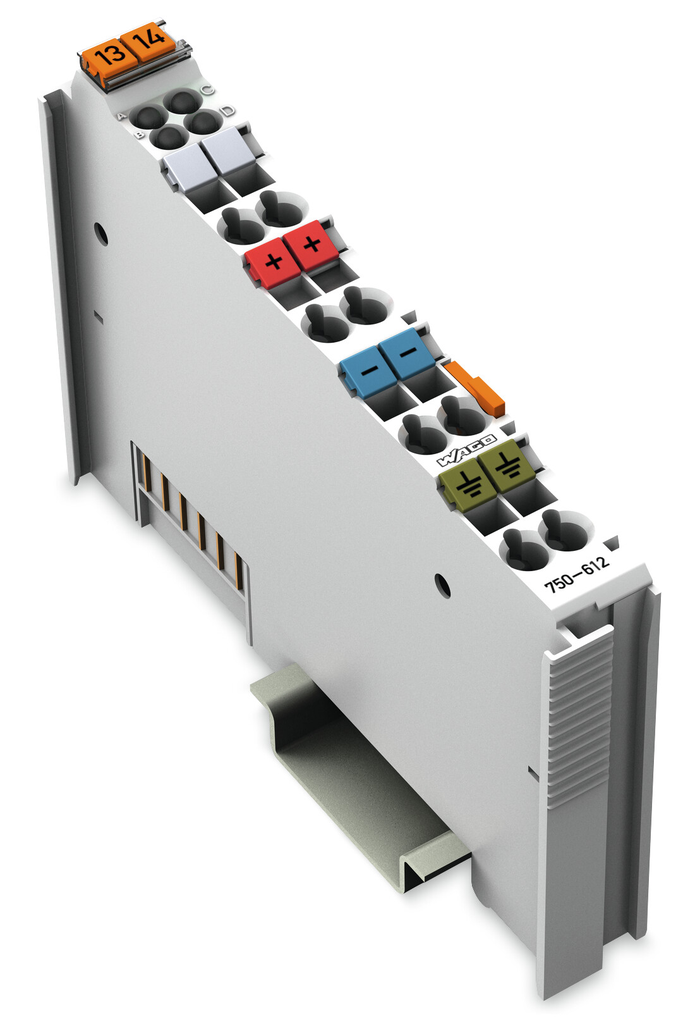

Product image for WAG 750-612 BUS POWER FEED W/O FUSE 250V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

WAG 750-612 BUS POWER FEED W/O FUSE 250V

Manufacturer: Wago | Catalog # 750-612 | Cooper Electric Part # 774837
$92.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

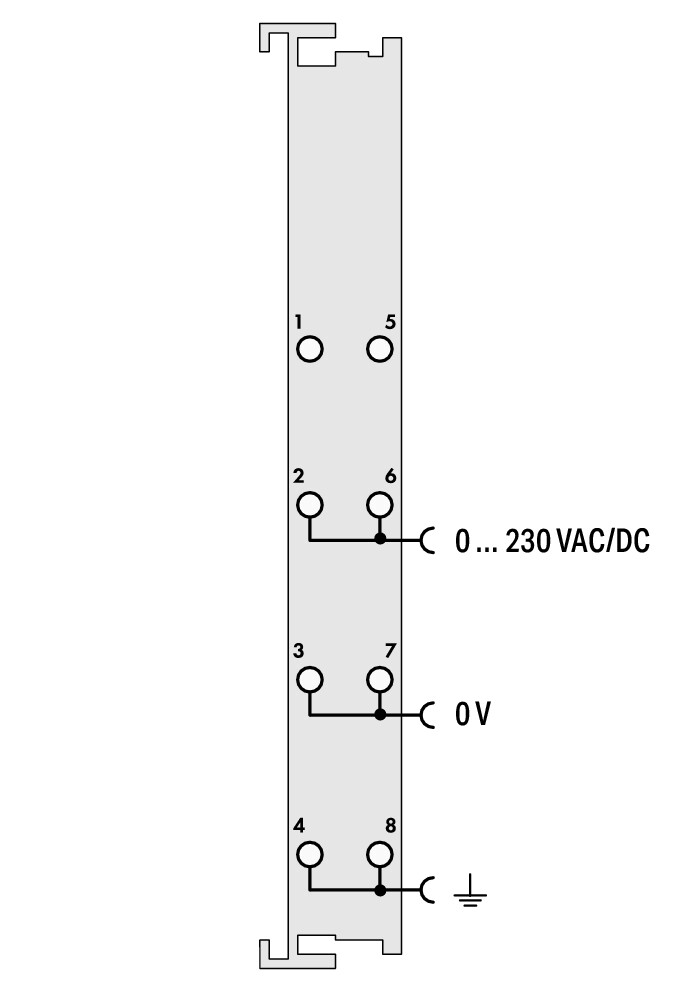

Power Supply; 0 . 230 VAC/DC. This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.

Technical Information

Conductor Size
14 AWG
Connection Type
Field Supply
Mounting Type
DIN-35 Rail
Strip Length
0.35 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918078201
Color
Gray
Housing Material
Polyamide 6.6,Polycarbonate
Product UPC
04491807820
Weight
43.640 g

Dimensions

Depth
2.748 Inch
Height
3.937 Inch
Width
0.472 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • Lloyds Register EMEA, LR, LR22180952TA
  • Bundesamt fuer Seeschifffahrt und Hydrographie, BSH, 1104
  • RINA Germany GmbH, RINA, ELE343521XG001
  • American Bureau of Shipping, ABS, 22-2219060
  • TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_XII 3 G Ex ec IIC T4 Gc, EN 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00087/19, TP TC 020/2011
  • Underwriters Laboratories Inc., UL, E175199 Sec.1, UL 508
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • TV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TV 12.1297 X, IEC 60079-0
  • DNV GL SE, DNV, TAA0000194, DNV-CG-0339,Aug.2021
  • Bureau Veritas S.A., BV, 13453/E0 BV
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 14.0035 X Ex ec IIC T4 Gc, IEC 60079-0
  • Polski Rejestr Statkw, PRS, TE/2236/880590/19
  • Korean Register of Shipping, KR, KR HMB05880-AC001
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • WAGO GmbH & Co. KG, UKEx, UKCA_WAGO22UKEX003X_ec, EN 60079-0
  • CNEX, CCC, 2020312310000213, CNCA-C23-01
