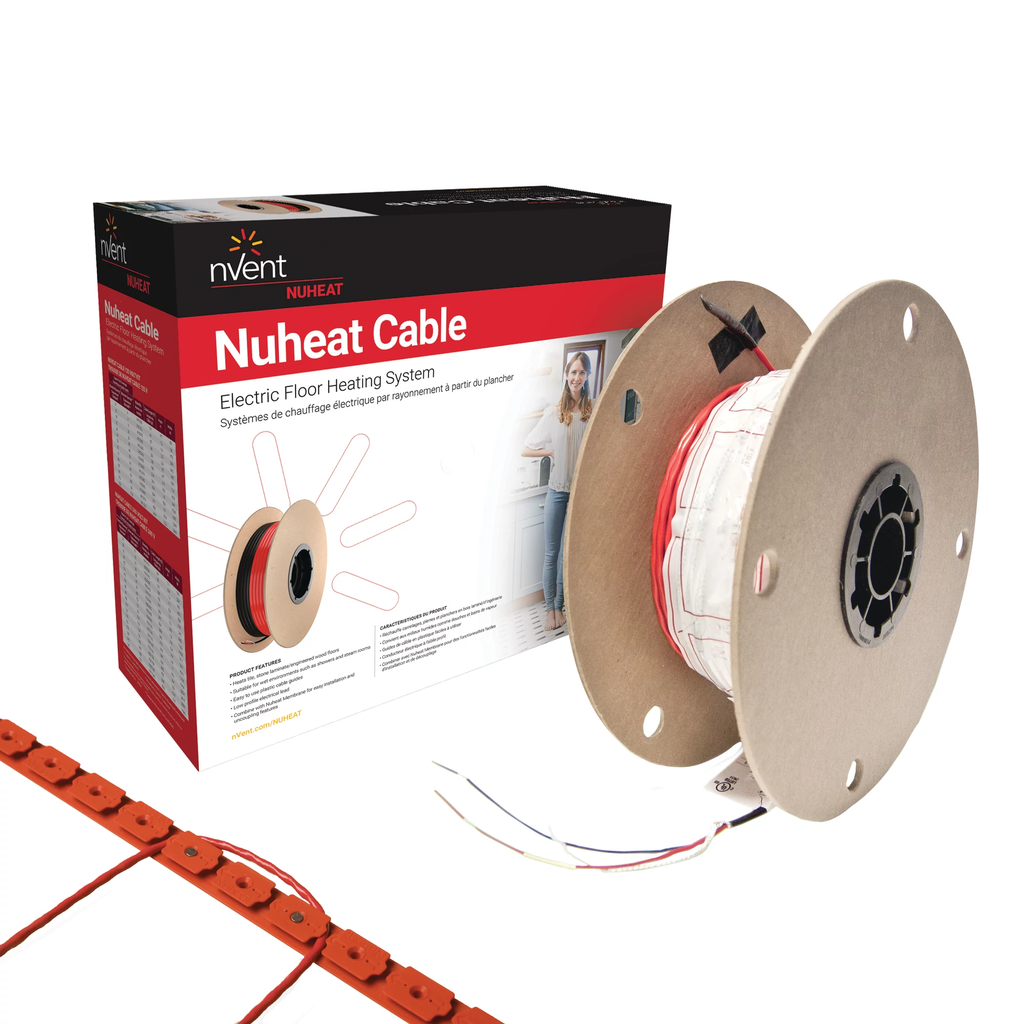

Nuheat N2C170 (FG0630) 240V 8.6A 2054W Floor Heating Cable Kit, 665ft Length, Covers 170ft² @ 3" Spacing using Cable Guides

Manufacturer: Raychem | Catalog # FG0630 | Cooper Electric Part # 774576
$838.06/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Electric floor heating cable for applications under tile, stone, laminate or engineered wood floors. 240 V, 170 sq. ft., 8.6 Amps. Cable length 665'.

Technical Information

Amperage
8.6 Amp
Applications
Floor Heating
Conductor Material
Copper
Conductor Size
2 Conductor 20-30 AWG
Insulation Material
ETFE
Max Power Current
2,040 W
Number of Conductors
2; Twisted Pair
Resistance
28 ohm
Temperature Rating
105 Deg C
Type
Floor Heating Cables and Cable Kits
Voltage
240
Wattage
2040

Manufacturer Information

Brand
nVent Nuheat
Sub Brand
RAYCHEM

General Product Info

12-Digit UPC
620713030301
Color
Red
Construction
2 Conductor Twisted Pair
Finish
PVC Coated
GTiN
00620713030301
Jacket Material
PVC
Product UPC
62071303030
Weight
7.26 kg

Dimensions

Length
665 Foot
Outside Diameter
4mm
Features
  • Easy installation, adjustable onsite to fit any area
  • Suitable for use under tile, stone, laminate and engineered wood floors
  • 12-15 W/ft² heat output
  • Compatible with nVent NUHEAT Membrane integrated heating and uncoupling system
  • Reliable during long life: 25 year product and total care warranty available, no maintenance required
