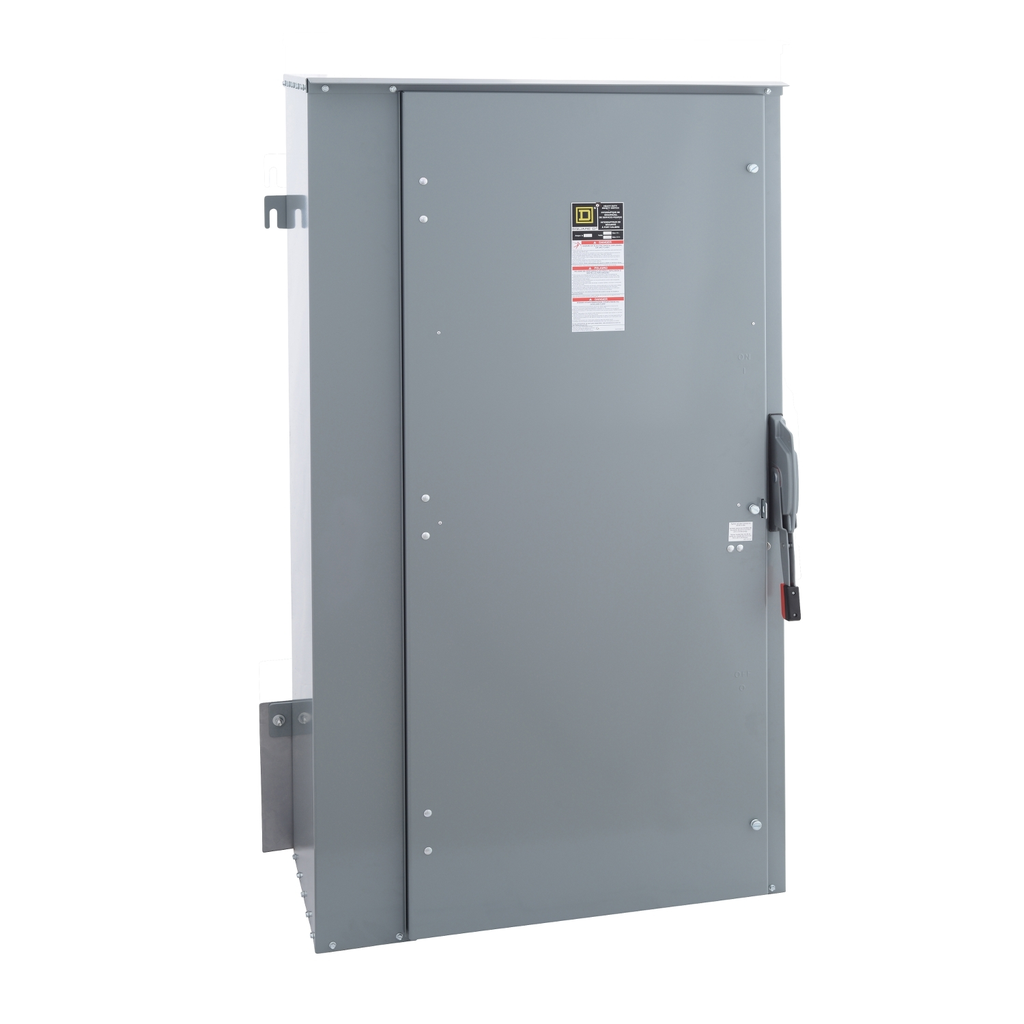

Product image for Square D HU368AWK 600 VAC 1200 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D HU368AWK 600 VAC 1200 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU368AWK | Cooper Electric Part # 773515
$17,940.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Safety switch, heavy duty, non fusible, 1200A, 3 pole, 500hp, 600VAC/DC, NEMA 12

Technical Information

Amperage
1,200 Amp
Applications
HEAVY DUTY
Conductor Size
3/0 AWG-750 kcmil
Current
1200 Amp
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Steel
Enclosure Rating
NEMA 3R/12 galvannealed steel
Fuse Type
L
Line Rated Current
1200 A
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
167.8 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
17.75 in
TC Connection
Lugs
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 3/0...750 kcmil copper or aluminium
Wire Type
AWG 3/0...750 KCMIL COPPER OR ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901163671
GTiN
00785901163671
Product UPC
78590116367
Weight
167.8 kg

Dimensions

Depth
17-3/4 Inch
Height
69.13 Inch
Warranty Length
18 mth
Width
36.62 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=2176&p_File_name=2176.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=2176&p_File_name=2176.dxf
Motor Power HP
  • 50 hp at 600 V AC 50-60 Hz for 1 phase motors
  • 500 hp at 600 V AC 50-60
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.07194881770817735
  • 0.1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 1 kg CO2 eq.
  • 0.9645561446428399
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 4 kg CO2 eq.
  • 4.014002140520345
Nema Degree Of Protection
  • NEMA 3R/12 galvannealed steel
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 2 462 kg CO2 eq.
  • 2461.5930719381868
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
Carbon Footprint Of The Distribution Phase A4
  • 0.8059580189361879
  • 0.8 kg CO2 eq.
Tightening Torque
  • 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
AWG Gauge
  • AWG 3/0...750 kcmil copper or aluminium
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 600 V AC/DC
