SQD XVS14BMW Multisound siren, Harm

Manufacturer: Square-D / Schneider | Catalog # XVS14BMW | Cooper Electric Part # 772540
$378.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

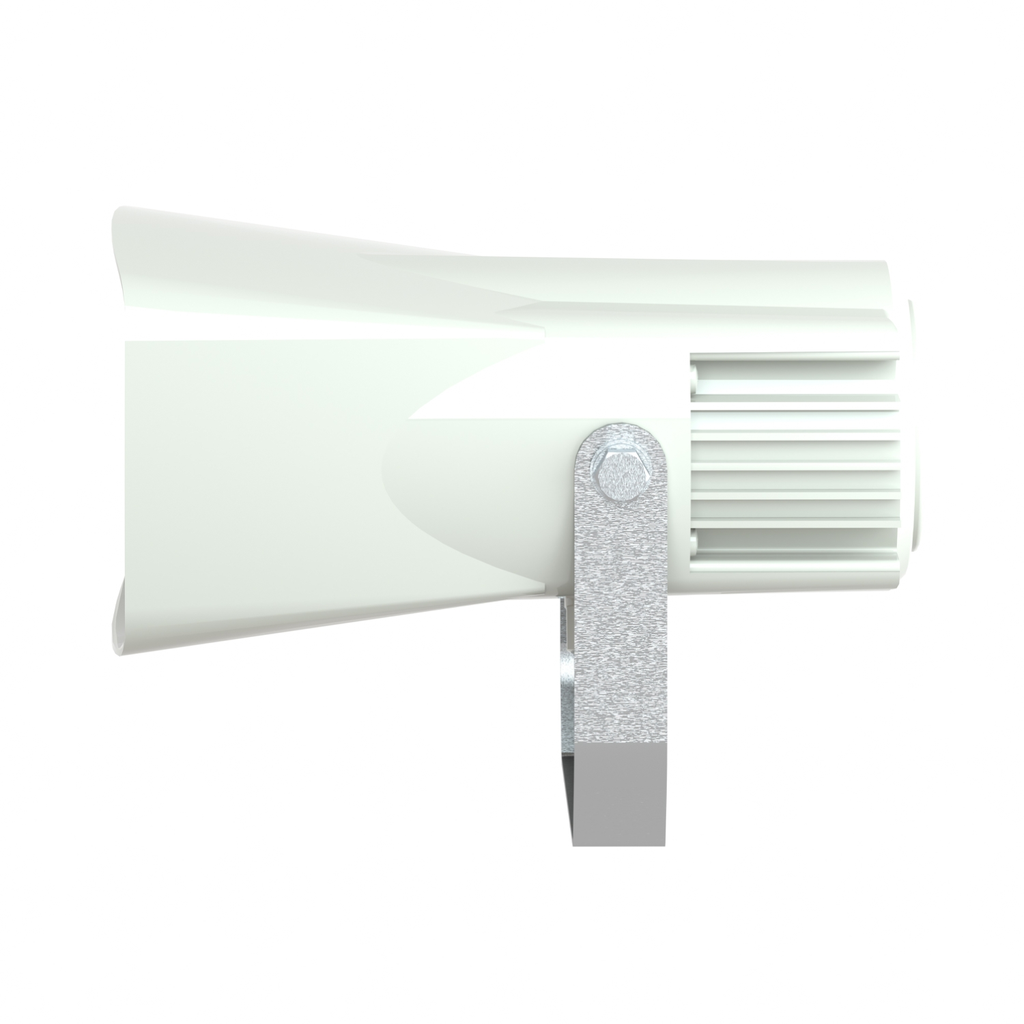

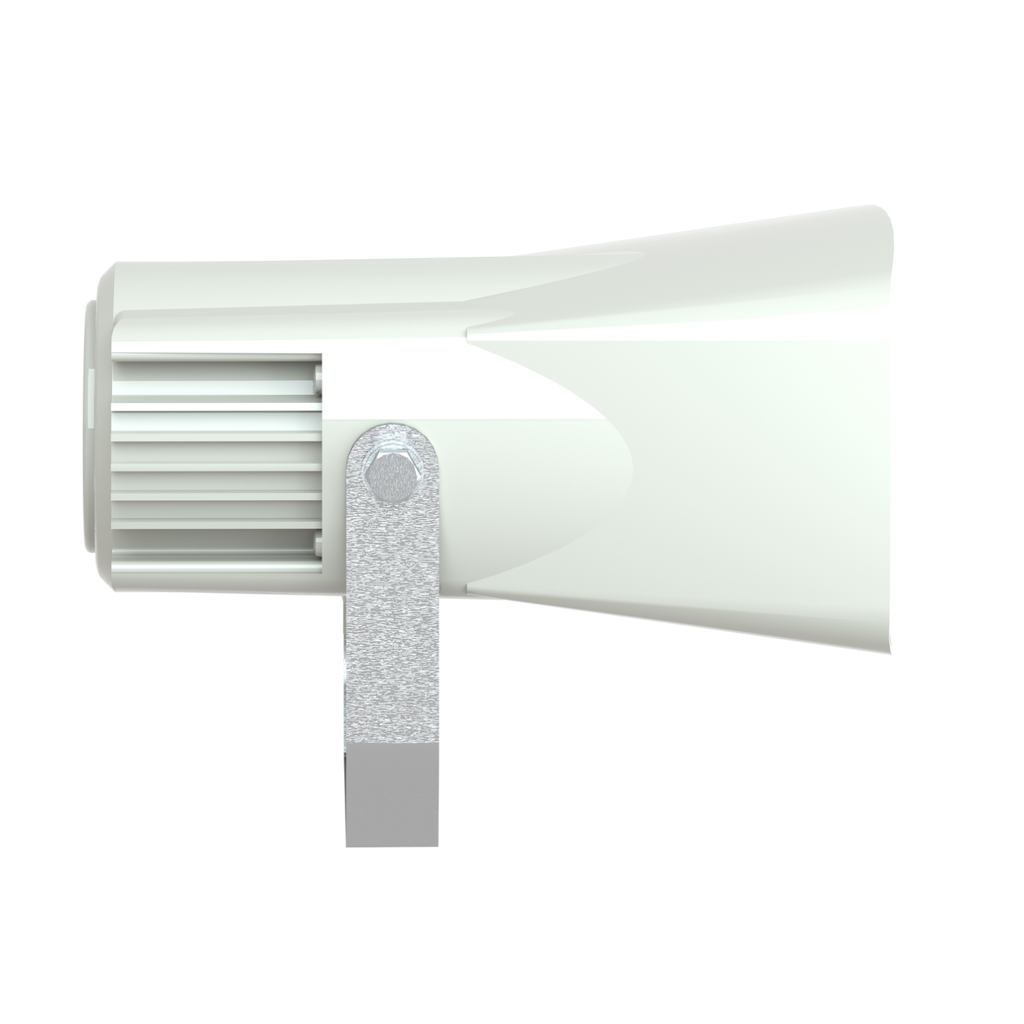

This Harmony XVS14BMW is a multi-sound siren. It is part of the range Harmony XVS sirens and electronics alarms range .

Technical Information

Applications
43 TONES SIREN
Current
12 V
Enclosure
IP 53
Loudness
0-105 DB CONTINUOUS OR INTERMITTENT TONE)1 M
Material
ASA (Acrylonitrile Styrene Acrylate): Back,ASA (Acrylonitrile Styrene Acrylate): Front,PC (polycarbonate): Back Cover
Net Weight
1 kg
Operating Temperature
-10-50 degrees C
Output
0...105 DB (CONTINUOUS OR INTERMITTENT TONE) AT 1 M
Power Supply
12 V DC-24 V DC,350 MA 24 V-250 MA 12 V
Standard
EN 55014-2,EN 55022,IEC 61000-6-2,IEC 61000-6-3
Storage Temperature
-35-70 degrees C
TC Connection
CABLE 6.5-8.5 MM, 0.33-0.33 MMA / AWG AWG 22 SIGNALLING CIRCUIT)-CABLE 6.5-8.5 MM, 0.52-0.52 MMA / AWG AWG 20 POWER CIRCUIT)
Type
MULTISOUND SIREN

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVS,XVS

General Product Info

12-Digit UPC
606480032946
Color
White
Environmental Conditions
-10-50 AC,IP53 EN/IEC 60529
GTiN
03606480032943
Product UPC
78590181123
Weight
1 kg

Dimensions

Depth
223 mm
Height
114 mm
Warranty Length
18 mth
Width
140 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
