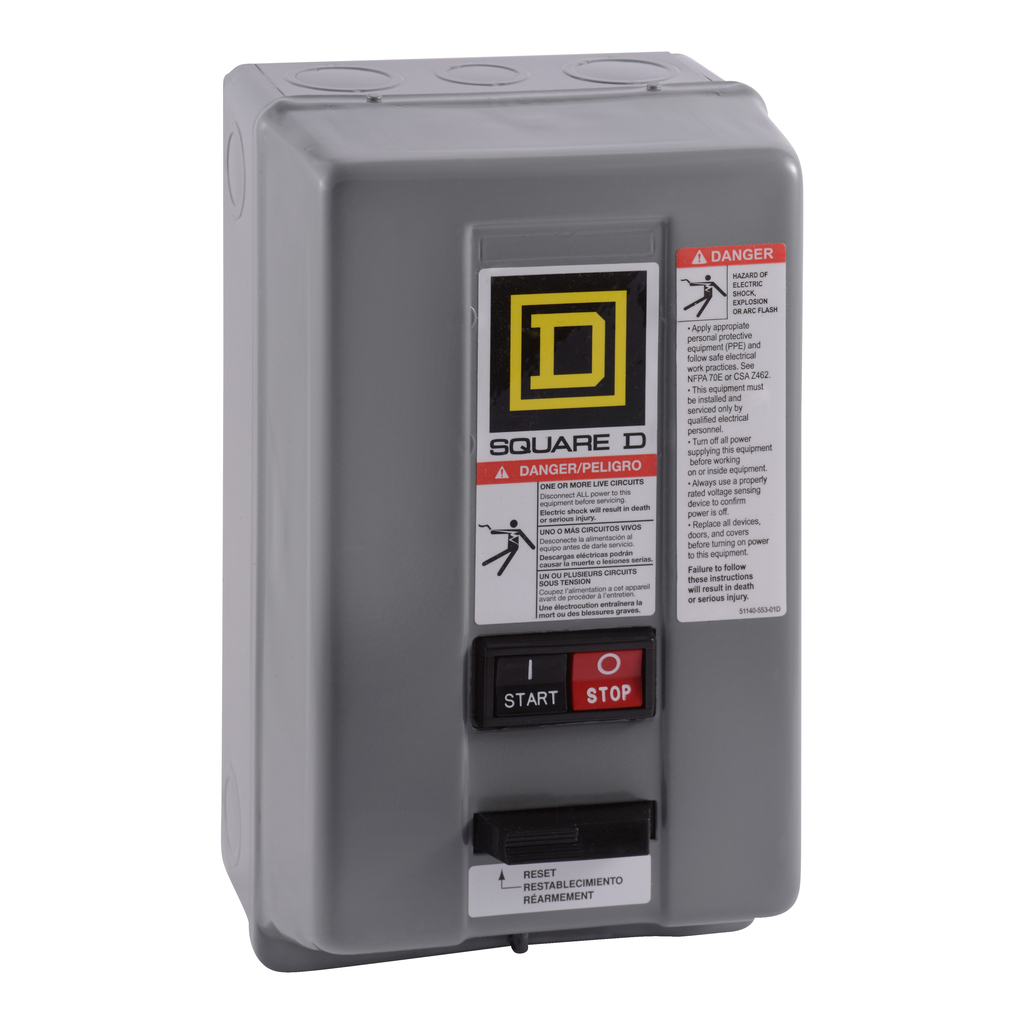

Product image for SQD 8536SCG1V03A STARTER 240VAC 27A
Image thumbnail 0
Image thumbnail 1
Email

SQD 8536SCG1V03A STARTER 240VAC 27A

Manufacturer: Square-D / Schneider | Catalog # 8536SCG1V03A | Cooper Electric Part # 771820
$845.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Used for full voltage starting and stopping AC squirrel cage motors

Technical Information

Amperage
27 Amp
Applications
USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Control Circuit Voltage
220 V
Enclosure
NEMA 1
Line Rated Current
27 A
NEMA Size
1
Number of Phases
1 Phase
Number of Poles
2 Pole
Power Supply
240VAC@60HZ - 220VAC@50HZ
Rated Power
2 hp
Reset Type
MELTING ALLOY 1
Size
1
TC Connection
SCREW CLAMP
Type
NON-REVERSING STARTER
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901503613
GTiN
00785901503613
Product UPC
78590150361

Dimensions

Warranty Length
1.5 yr

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,NEMA,UL
Country of Origin
Mexico
  • Irrigation
  • Building Automation
  • Infrastructure
  • Commercial Office Buildings
  • Industrial Markets
  • Construction
  • Simple catalog number for easy and fast ordering
  • Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options, and accessories
  • Robust design and reliable build for long mechanical life and electrical endurance
  • Flexible with four overload relays: Motor Logic™ solid state, TeSys™ T communication solid state, Adapted Bimetal, and melting alloy types
  • Serviceable by replacing contacts and coils rather than replacing the entire product; simply service the part that is worn out.
