SQD NSYTBP24198T PC box IP66 IK08 R

Manufacturer: Square-D / Schneider | Catalog # NSYTBP24198T | Cooper Electric Part # 769789
$58.17 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

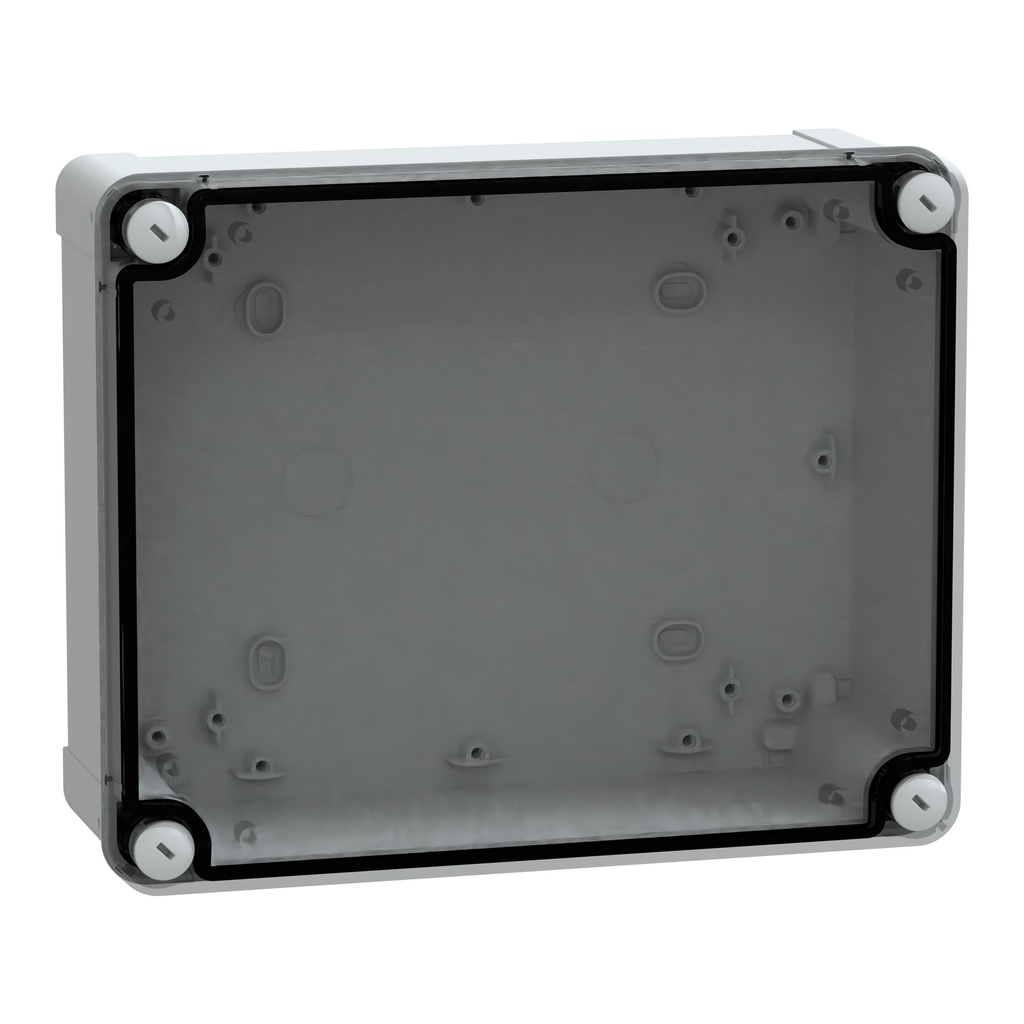

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, T.V, UL. UL 508 A Standard. Fire resistance 960.. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 .C)/(-25 to 80 .C).

Technical Information

Applications
Multi-purpose
Body Type
One Piece Moulded
Lock Type
Captive Screw Flat Outside Sealed Area
Material
Polycarbonate
Net Weight
0.64 kg
Range
Thalassa
Size
3.43 in
Standard
IEC 62208,UL 508 A
Storage Temperature
-15-60 degrees C
Type
Industrial box

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901967835
Color
Gray RAL 7035),Transparent
Construction
1 BODY-1 COVER-4 COVER SCREW
GTiN
03606480165849
Product UPC
78590196783
Weight
0.64 kg

Dimensions

Depth
87 mm
Height
9.49 in
Warranty Length
18 mth
Width
7.64 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
TV,UL
Country of Origin
Hungary
Features
  • Sealed against dust and water (IP66)
  • Robust and impact resistant (IK08)
  • Wide usage temperature -25C to 80C
  • Fire resistant up to 960C
  • Class II electrical insulation to avoid risks
  • Only a flat screwdriver needed to use
  • Easy to install with 3 fixing ways
  • Captive flat screws for secure fixing cover
  • UL certified and suitable for outdoor use
