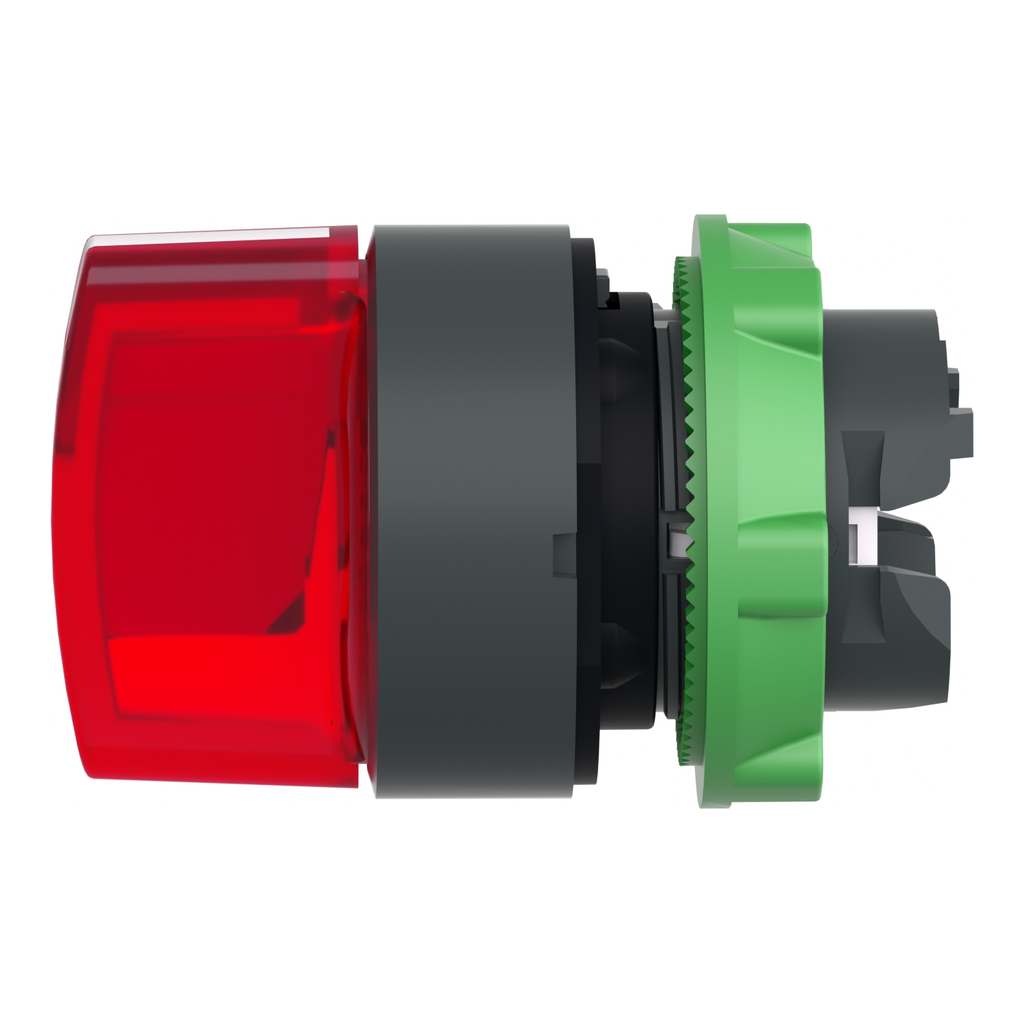

Square D ZB5AK1343 22 mm 3-Position Red Maintained Lever Illuminated Selector Switch Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AK1343 | Cooper Electric Part # 768931
$25.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This red illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Technical Information

Action
STAY PUT
Actuator
3 positions +/- 45
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
RED
Net Weight
0.016 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110906120
Color
Red
Environmental Conditions
IP 65
GTiN
03389110906127
Product UPC
78590138666
Weight
0.016 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Overvoltage Category
  • class II conforming to IEC 60536
Electrical Composition Code
  • M3 4 single front mounting integral LED
  • M6 2 single front mounting integral LED and transforme
IP Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0061990133
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0499972075
Station Name
  • XALD 1...5 cut-outs
  • XALK 2...5 cut-outs
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.2 kg CO2 eq.
  • 0.1824778926
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Vibration Resistance
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Customizable
  • no
  • 0
Carbon Footprint Of The Distribution Phase A4
  • 0.0031383785
  • 0 kg CO2 eq.
Resistance To High Pressure Washer
  • 7000000 Pa 55 °C 0.1 m
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operator Profile
  • red standard handle
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
