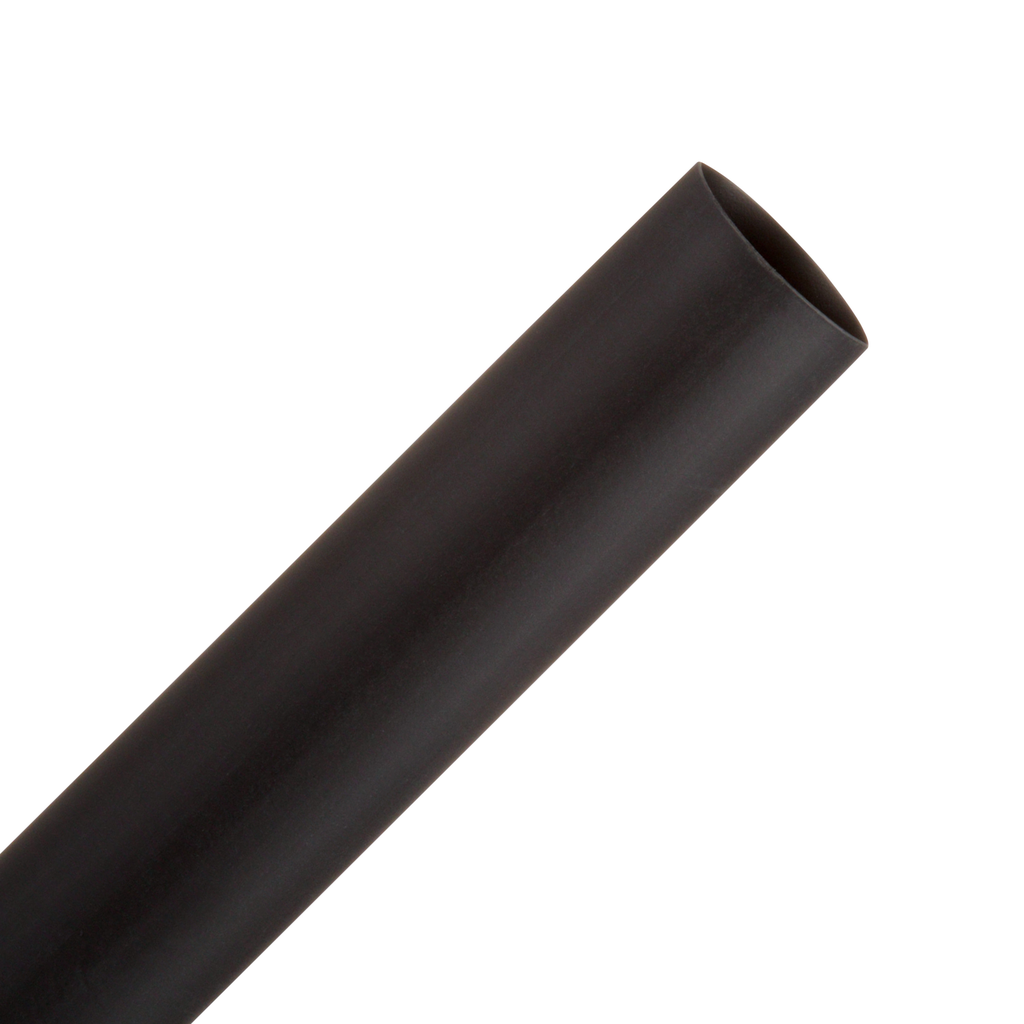

Product image for 3M 7000133514 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 7000133514 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7000133514 | Cooper Electric Part # 765917
$13.47/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
16 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Technical Information

Dielectric Strength
900 V/mil
Flame Retardant
Yes
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Size
0.75 in
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2400 lb/in
Type
Single Key Access

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128595985
Color
Black
GTiN
00051128595985
Product UPC
05112859598

Dimensions

Inside Diameter
0.375
Length
48 Inch
Outside Diameter
0.75 in
Overall Length
48.0 in
Thickness
0.03

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: Suitable for applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
