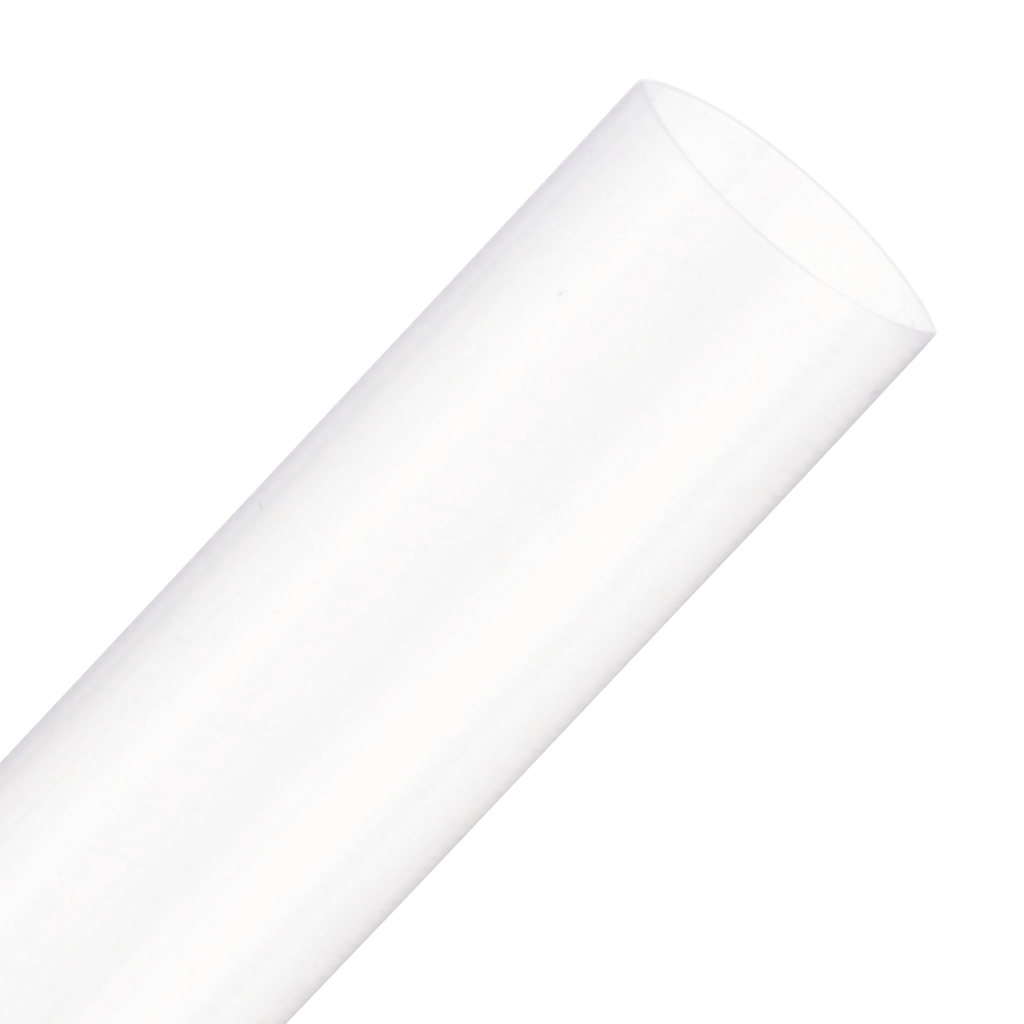

Product image for 3M 7100083074 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 7100083074 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7100083074 | Cooper Electric Part # 765916
$10.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Heat Shrink Thin-Wall Flexible Polyolefin Tubing offers an excellent balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. Rated for 135.C continuous operation, it is split resistant,mechanically tough, easily marked and resists cold flow.

Technical Information

Dielectric Strength
900 V/mil
Flame Retardant
No
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Size
0.50 in
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Type
Single Key Access

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128595923
Color
Clear
GTiN
00051128595923
Product UPC
05112859592

Dimensions

Inside Diameter
0.25
Length
48 Inch
Outside Diameter
0.5 in
Overall Length
48.0 in
Thickness
0.025

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: Suitable for applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
