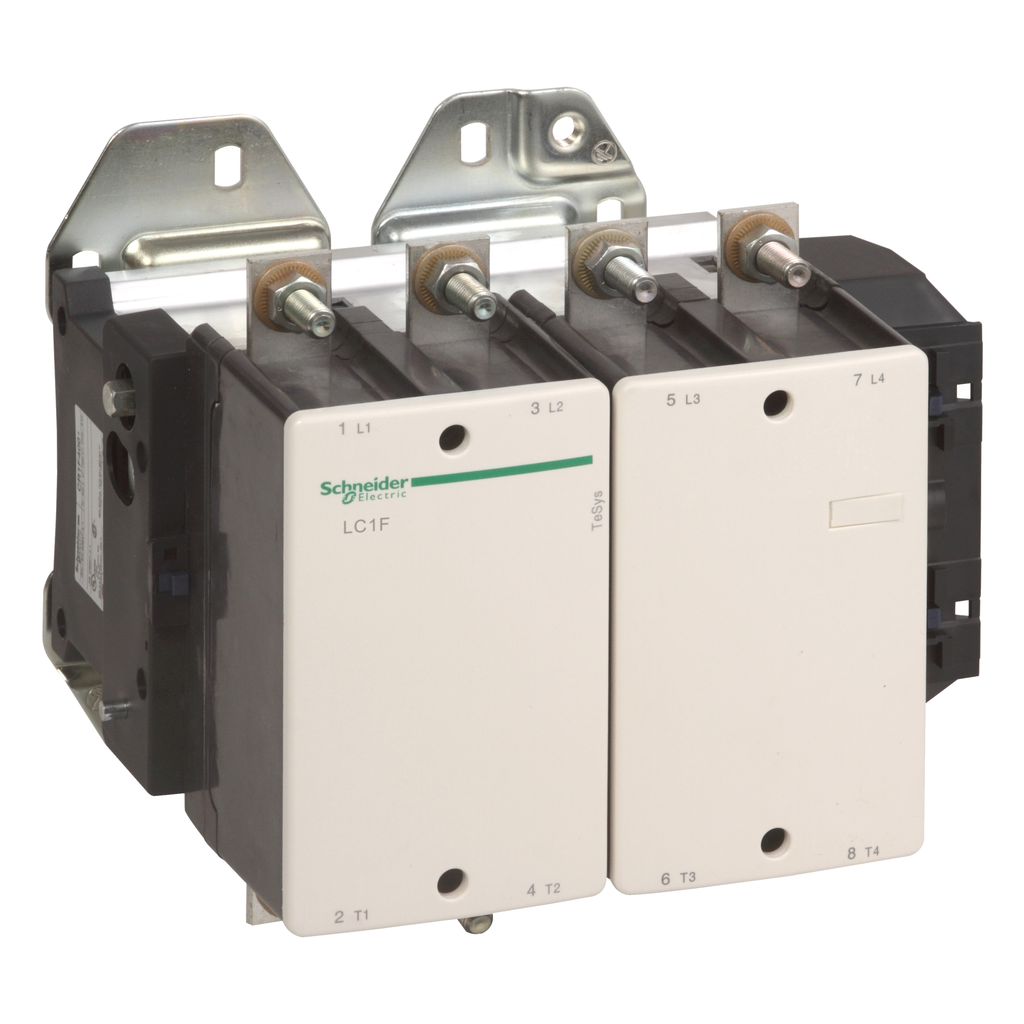

Product image for SQUARED LC1F4004F7 TeSys F contacto
Image thumbnail 0
Image thumbnail 1
Email

SQUARED LC1F4004F7 TeSys F contacto

Manufacturer: Square-D / Schneider | Catalog # LC1F4004F7 | Cooper Electric Part # 765625
$2,108.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 500 A - coil 110 V AC

Technical Information

Applications
RESISTIVE LOAD
Coil Voltage
110 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC
Contact Configuration
4 NO
Contact Rating
500 A 40 AC
Impedance
0.26 MOhm - Ith 500 A 50 Hz
IP Rating
IP20
Net Weight
10.2 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Range
TeSys
Rated Insulation Voltage
1000 V
Size
206 MM,219 MM,261 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 30 X 5 MM-POWER CIRCUIT LUGS-RING TERMINALS 2 150-150 MMA-POWER CIRCUIT BOLTED CONNECTION
Type
Contactor
Voltage
1000 Volt
Wattage
65 Watt AC-1

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
785901749677
GTiN
03389110788372
Product UPC
78590174967
Weight
22.49 lb

Dimensions

Depth
219 mm
Height
206 mm
Warranty Length
18 mth
Width
261 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CCC,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
