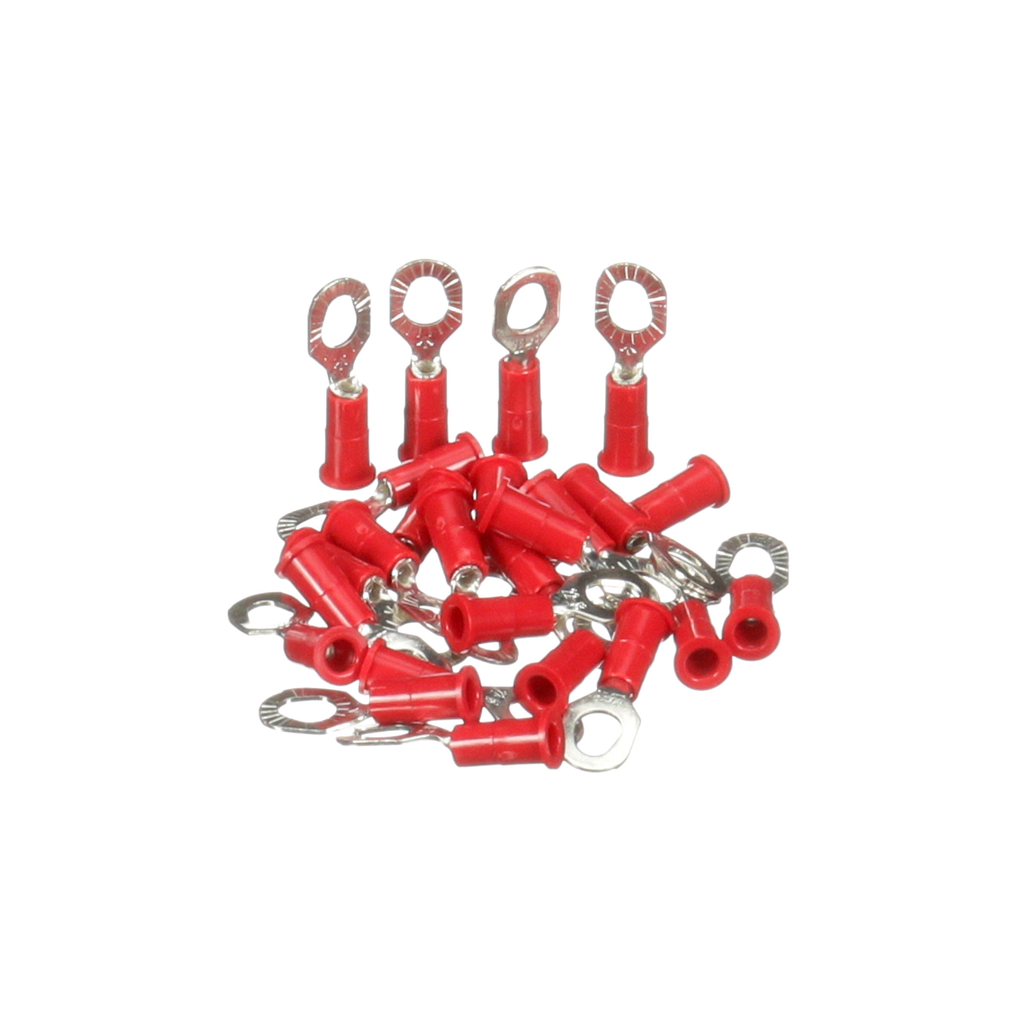

Product image for 3M 7100163973 3M™ Scotchlok™ Vinyl
Email

3M 7100163973 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100163973 | Cooper Electric Part # 765248
$0.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Material
PVC
Terminal Size
22 - 18 AWG
Type
Ring

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007013426
GTiN
00054007013426
Product UPC
05400701342

Dimensions

Overall Length
1.01 in
Width
0.34 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
