Panduit PV10-10R-L Vinyl Insulated Ring Terminal - #12-10, #10bolt

Manufacturer: Panduit Corp | Catalog # PV10-10R-L | Cooper Electric Part # 7628
$144.68/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1,150 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing Product Brochure

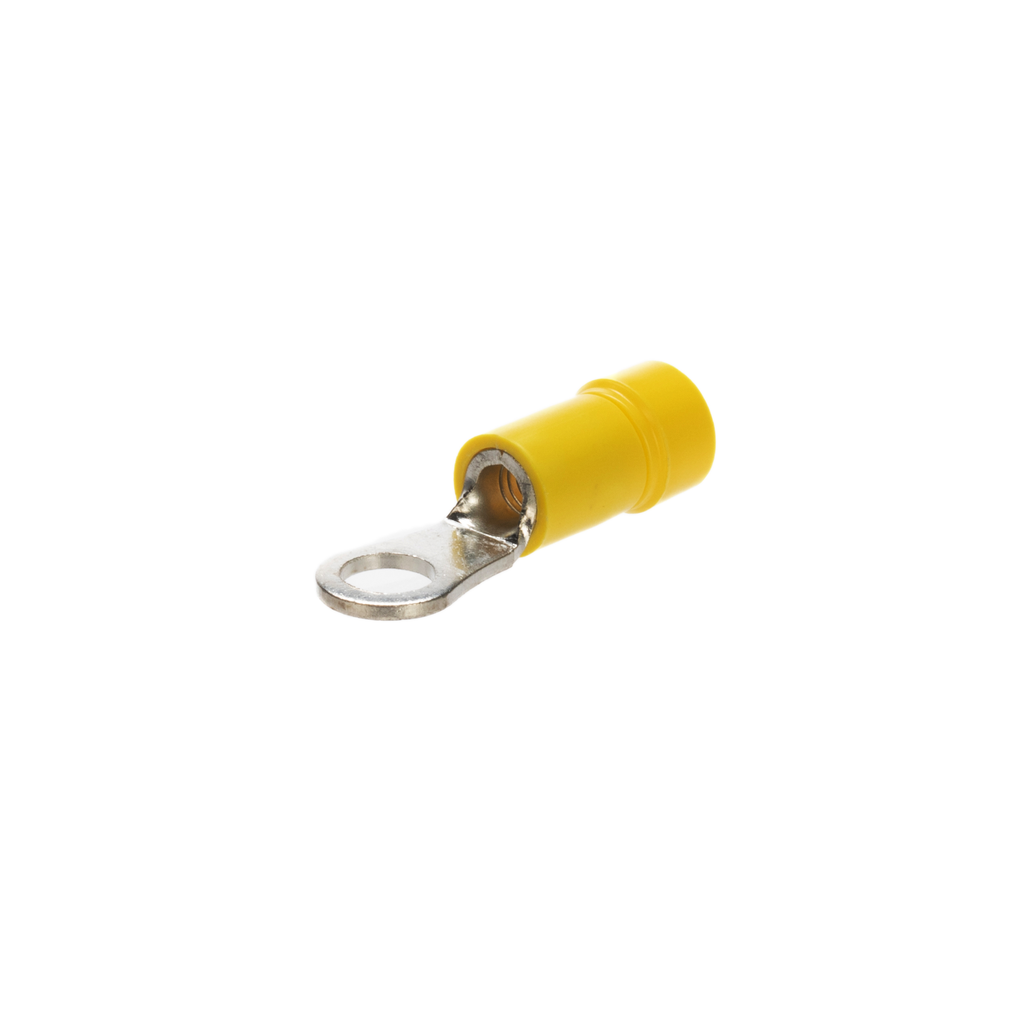

The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Yellow
Conductor Size
12-10 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 C
Size
#10
Stud Size
#10
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.31 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801329
Color
Yellow
Finish
Tin Plated
GTiN
00074983801329
Product UPC
07498380132

Dimensions

Overall Length
1.05 in
Width
7.9 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
