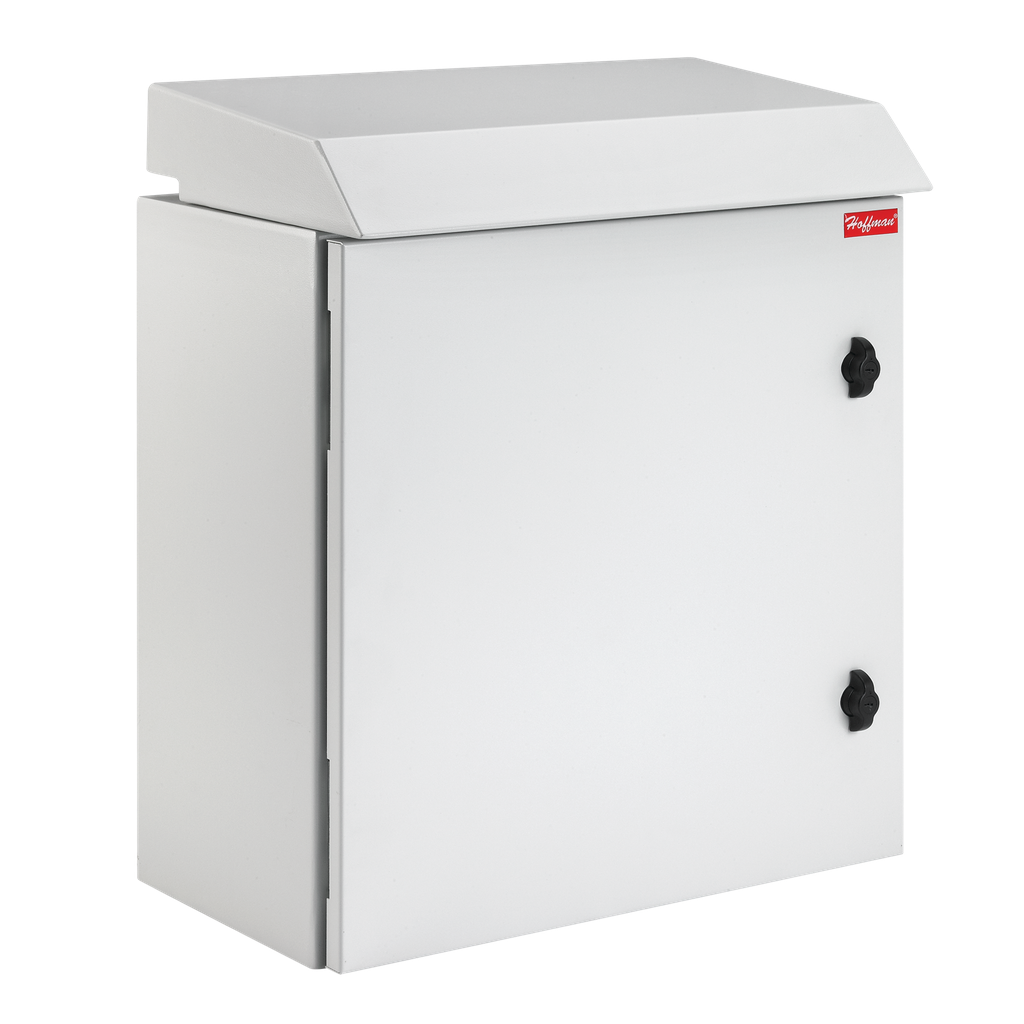

Product image for Hoffman PTRS482424G3 ProTek S-D Fan Packages, Type 3R, 48.54x23.62x24.02, Lt Gray, Steel, Solid
Email

Hoffman PTRS482424G3 ProTek S-D Fan Packages, Type 3R, 48.54x23.62x24.02, Lt Gray, Steel, Solid

Manufacturer: Hoffman | Catalog # PTRS482424G3 | Cooper Electric Part # 762441
$3,165.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ProTek Single-Door Fan Package cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. An integral top solar/drip shield and thermostatically-controlled fans provide airflow to cool internal equipment. Cabinets are available in UL Type 3R for indoor/ outdoor use. A UL Type 1 window-door version is available for indoor applications. The integral fans provide cooling for internallymounted equipment. The enclosures provide protection against water, dirt and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.

Technical Information

Applications
Datacom and Telecom Equipment; Controls and Drives; Networking, Storage and Data Center
Body Thickness
1.9 mm
Color Coding
RAL 7035
IP Rating
IP32
Material
Steel
NEMA Size
3
Standard
CUL Listed Per CSA C22.2 No. 94,File Number E61997,IEC 60529,IP30 Or IP 32,NEMA / EEMAC: Type 1 Or 3R,Solid Door: Type 3R,UL 508A Listed,Window Door: Type 1
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProTek

General Product Info

12-Digit UPC
783510235970
Color
Lt Gray
Finish
Gray
GTiN
00783510235970
Product UPC
78351023597
Weight
211 lb

Dimensions

Depth
24.02 Inch
Height
48.54 Inch
Length
26-3/4 Inch
Width
23.25 in
Features
  • Solid-door cabinet provides complete physical and visual protection
  • Integral top solar/drip shield
  • Two thermostatically-controlled, long-life, high-performance fans mounted into top
  • Perforated, vented base with internal, expanded metal, serviceable filter
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob provides access control to the cabinet; two keys are included with each cabinet
  • Additional rack angles in tapped and square-hole versions can be added to the cabinet
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each cabinet
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
