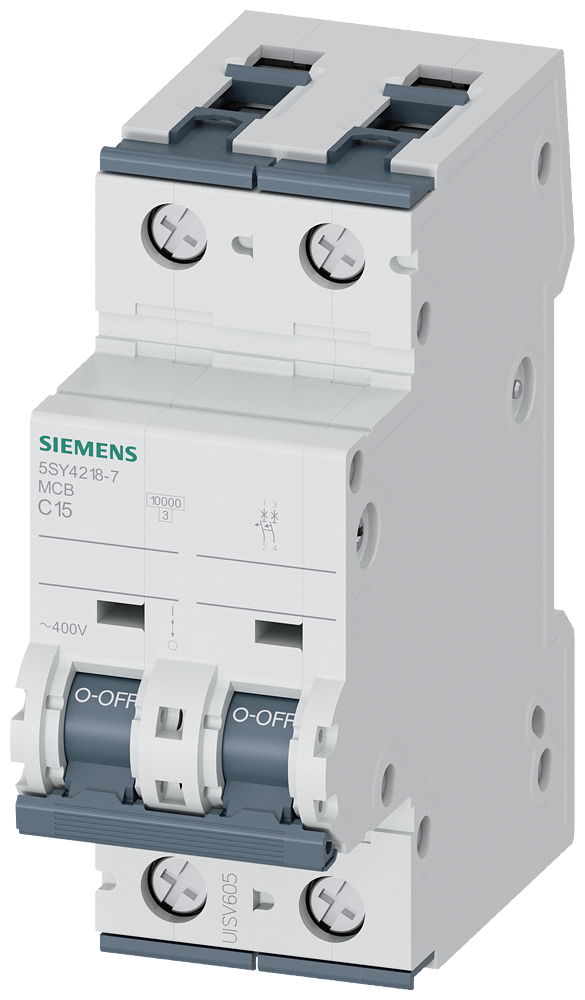

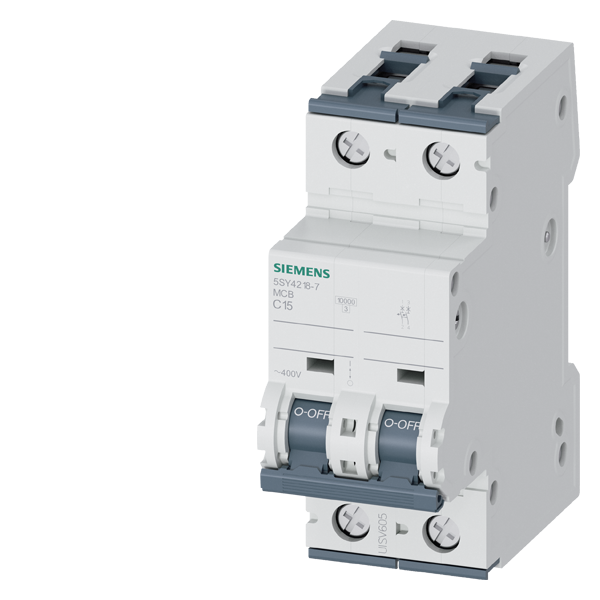

Product image for Siemens 5SY4218-7 15 Amp C Curve 2-Pole Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Siemens 5SY4218-7 15 Amp C Curve 2-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4218-7 | Cooper Electric Part # 758191
$114.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Type 5SY4 Miniature Circuit Breaker, 2 Poles, 480/277V, 15A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
15 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
15 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
EN 60 898,CSA 22.2 NO. 235,IEC,EN 60 947-2,UL 1077,CE
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
IEC DIN mount Miniature Breakers & Fuses

General Product Info

12-Digit UPC
754554889467
Class
C
GTiN
00754554889467
Product UPC
75455488946
Weight
0.575 lb

Dimensions

Height
3-1/4 Inch
Length
3-3/4 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.028 kg
Green End-of-Life CO2
0.328 kg
Green Manufacturing CO2
1.13 kg
Green Total CO2
20.604 kg
Green Transport-to-DC CO2
0.06 kg
Green Use-Phase CO2
19.058 kg
