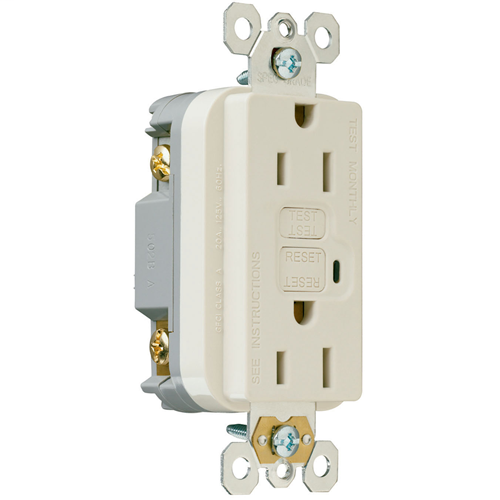

Product image for Pass & Seymour 1595-SW GFCI Receptacle with Auto Ground, 10kA SCCR,15A 125VAC - White
Email

Pass & Seymour 1595-SW GFCI Receptacle with Auto Ground, 10kA SCCR,15A 125VAC - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 1595-SW | Cooper Electric Part # 757431
$31.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.

Technical Information

Amperage
15 Amp
Grade
Specification
NEMA
5-15R
Style
Decorator
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
adorne

General Product Info

12-Digit UPC
785007423273
Color
White
GTiN
00785007423273
Product Series
TradeMaster
Product UPC
78500742327

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Extra-long strap.
  • Two back wire holes per terminal.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Button colors match the device face.
  • Ground screw has a back wire clamp for easy installation.
  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Tri-drive screws.
  • For covering patents, see www.legrand.us/patents.
  • Supplied with matching TP26 nylon wall plate.
  • Trip indicator light (red LED).
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Dual-direction test and reset buttons.
  • FSUL Listed (Federal Specification WC596).
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • 10kA short circuit rating.
Available Options
  • TradeMaster®/Spec Grade 15A Duplex GFCI w/ Auto Ground, Light Almond
  • TradeMaster®/Spec Grade 15A Duplex GFCI w/ Auto Ground, Ivory
