Product image for Thomas & Betts F9019 .472 Inch Length 10 AWG 6 mm.. Conductor Size Non-Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F9019 .472 Inch Length 10 AWG 6 mm.. Conductor Size Non-Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F9019 | Cooper Electric Part # 756474
$44.71/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

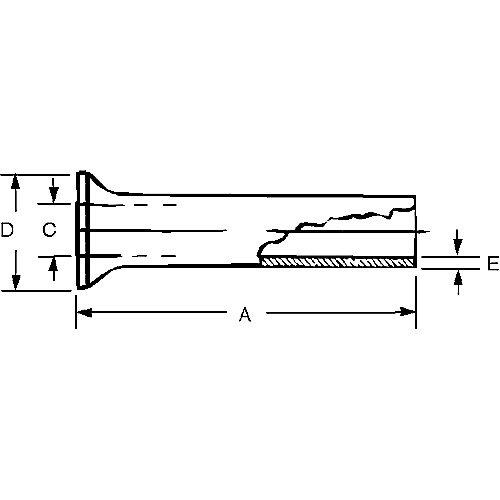

Non-Insulated Ferrule, Length .472 Inches/12mm, Inner Diameter .138 Inches/3.5mm, Outer Diameter .185 Inches/4.7mm, Conductor Size 10 AWG/6mm2, Copper, Tin Plated

Technical Information

Conductor Size
10 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Strip Length
12 mm
Temperature Rating
150 degrees C
Type
Non-Insulated, Standard
Wire Size
10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335971
Color
Metallic
Finish
Tin Plated
GTiN
05415022204124
Product UPC
78621033597

Dimensions

Overall Length
0.472 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
