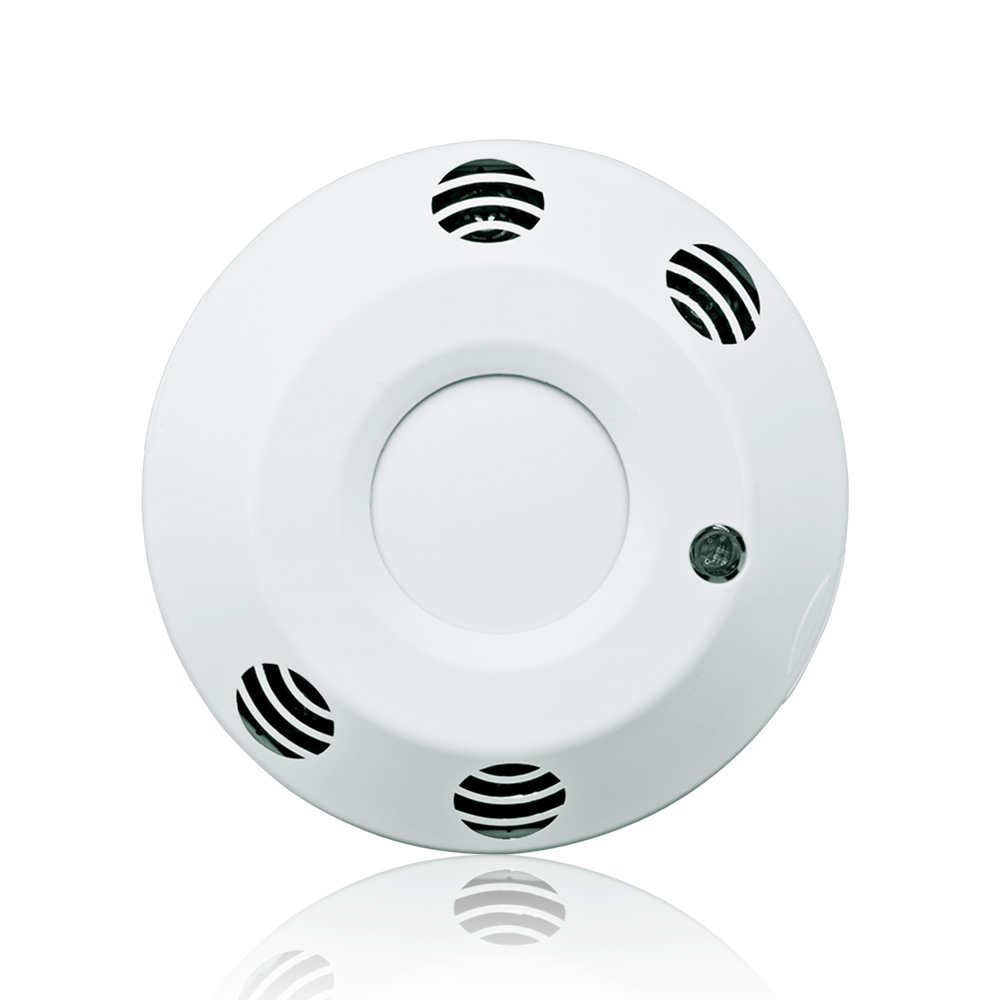

Product image for LEV ODC20-UDW WH ULTRAS CEILSENS 20
Image thumbnail 0

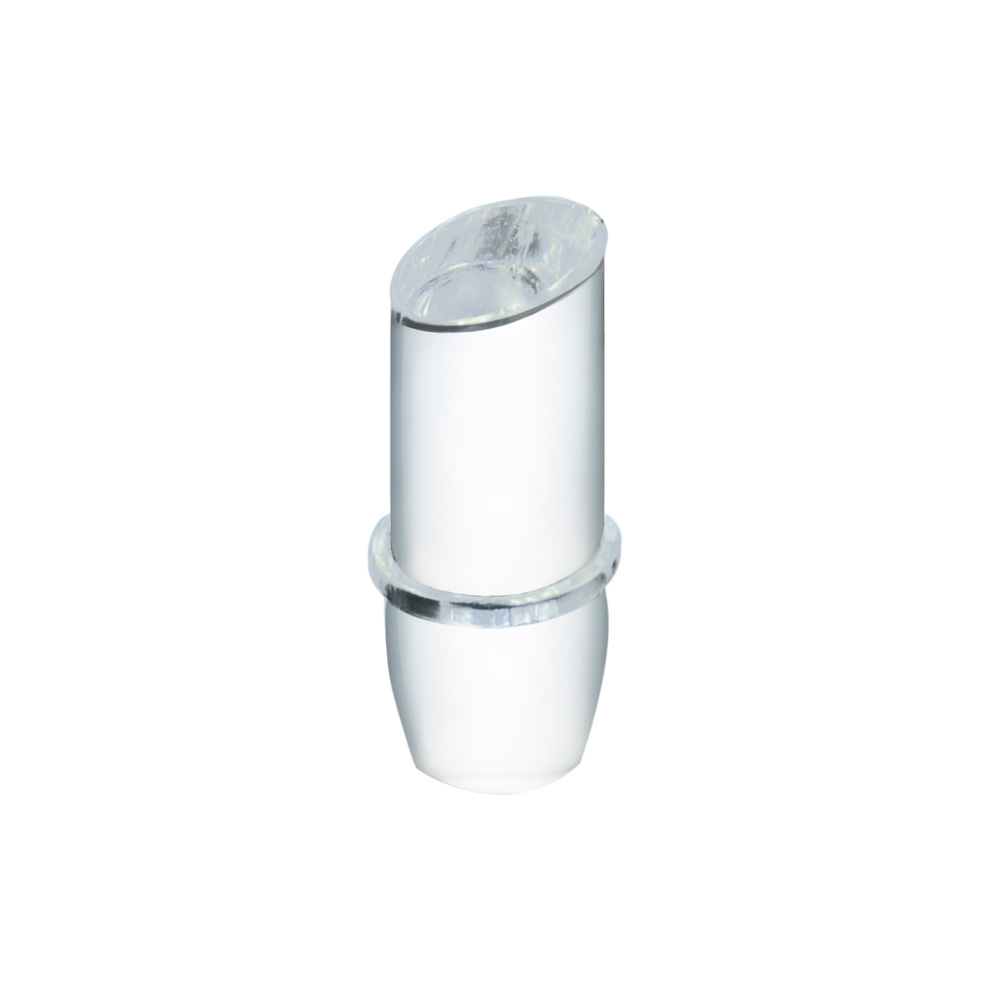

Image thumbnail 1

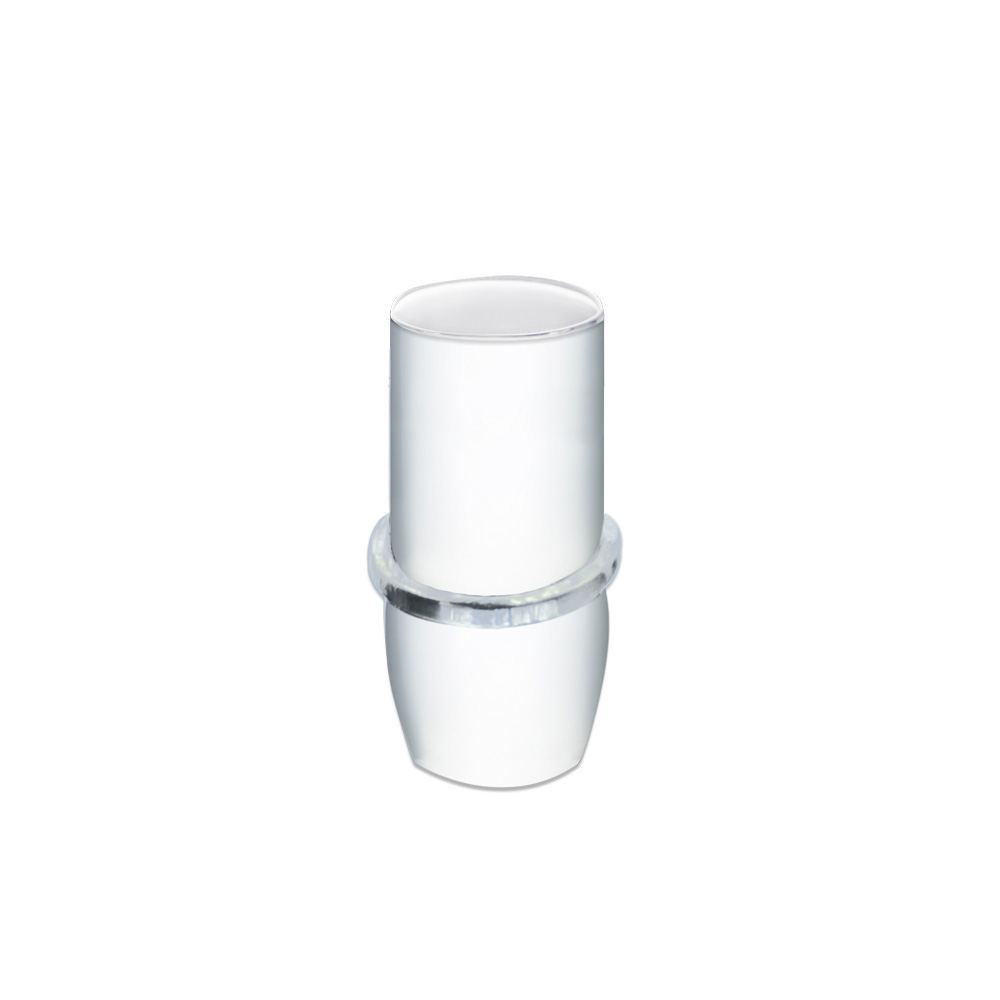

Image thumbnail 2

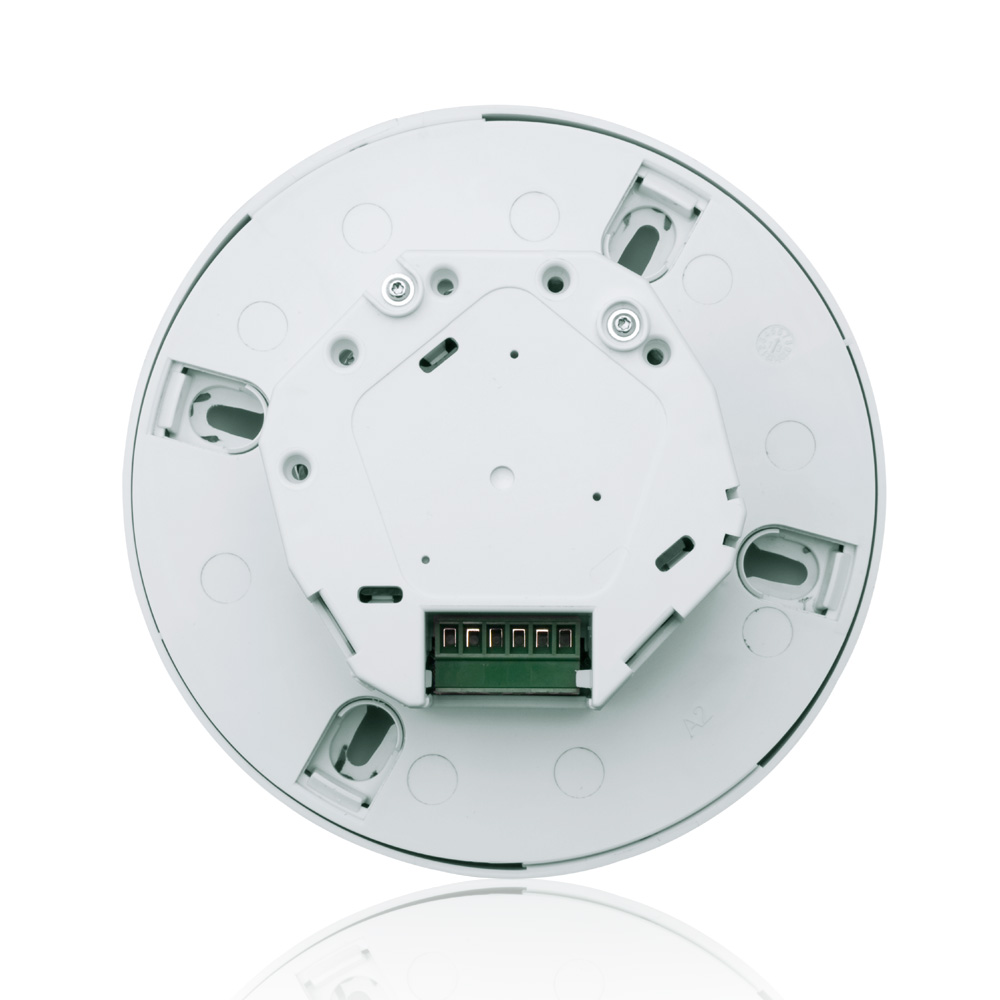

Image thumbnail 3

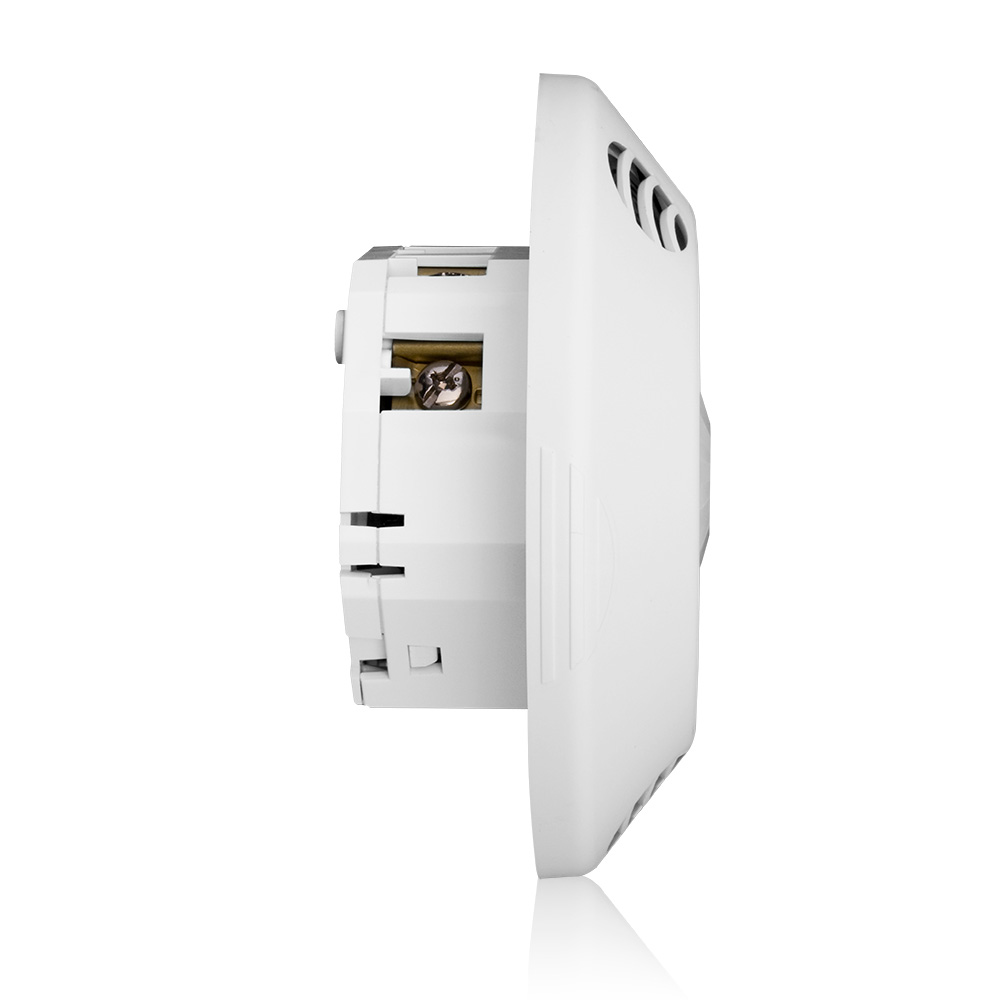

Image thumbnail 4
Email

LEV ODC20-UDW WH ULTRAS CEILSENS 20

Manufacturer: Leviton Mfg Co | Catalog # ODC20-UDW | Cooper Electric Part # 754909
$233.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Occupancy Sensor with Photocell, Provolt™ lighting control, Line Voltage, Ceiling Mounted, Ultrasonic, 2000 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.

Technical Information

Applications
Commercial
Coverage
2000 sq-ft
Frequency
50/60 Hz
Grade
Commercial
Mounting Type
Ceiling
Sensor Type
Ceiling Mount
Size
2.27 in
Standard
CA Title 20 Complaint,NEMA 410,NOM Certified,NY LLC48 Complaint,RoHS Complaint,UL (773A),UL 924
Temperature Rating
0 To 40 degrees C
Type
Ultrasonic
Voltage
120-277 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477540039
Color
White
Environmental Conditions
Relative Humidity (0 To 90 PCT),Storage Temperature (-26 DEG C To +71 DEG C)
GTiN
00078477540039
Product UPC
07847754003

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor's field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
  • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
  • Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
  • Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
  • Time delay and saved settings are protected during power outages and will return to the last known state
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
  • Test Mode for simplified commissioning
  • Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
  • Industry-exclusive fail-safe circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
  • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
  • Green Visual LED indicator - Blinks during U/S detection and is solid during auto-calibration
  • Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
  • Blue Visual LED indicator - Blinks when knob settings are changed and during photocell override
