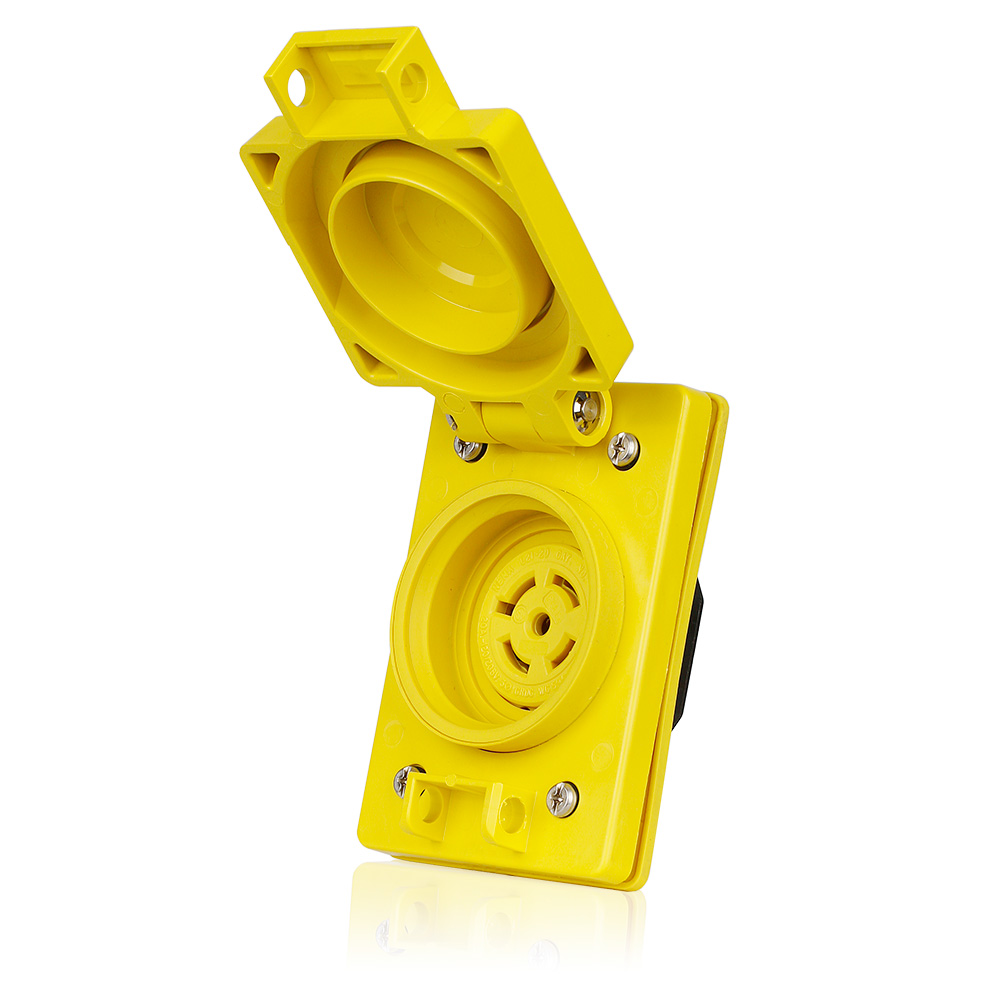

Product image for LEV 67W81 YL WG REC SGL 4PO5WI3PHL2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV 67W81 YL WG REC SGL 4PO5WI3PHL2

Manufacturer: Leviton Mfg Co | Catalog # 67W81 | Cooper Electric Part # 752817
$167.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - YELLOW

Technical Information

Amperage
20 Amp
Applications
For Industrial
Base Material
Nylon,Nylon
Conductor Size
14-8 AWG
Device Type
Locking Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Industrial
Grounding
Grounding
Horsepower
2 hp
Mounting Type
Box
NEMA
L21-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire
Type
Single Locking Receptacle With Watertight Cover
Voltage
120 Volt
Wire Count
5
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477067604
Color
Yellow
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477067604
Product UPC
07847706760

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
  • ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
  • MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
  • DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
NEMA
  • L21-20R
